Vossloh Skl14 Rail Clip Rail Fastening System-OEM from China

Vossloh Skl14 Rail Clip Rail Fastening System

Vossloh Skl14 Rail Clip Rail Fastening System was first used in the 1980s. The Vossloh Skl14 Rail Clip Rail Fastening System has grown since then to become the world's most popular fastening system for ballasted track.It is the system of choice for leading rail operators in more than 60 countries, and more than a quarter of a billion fastening points in this system have been installed. One important reason is the wide range of configuration options. The various versions provide ideal support for use with conventional rail, high-speed lines and heavy-haul traffic systems, even on tricky substructures.

Components of vossloh fastening system

Vossloh Skl14 Tension Clamp/W14 Railway Fastening System/

SKL14 Elastic Rail Clip.

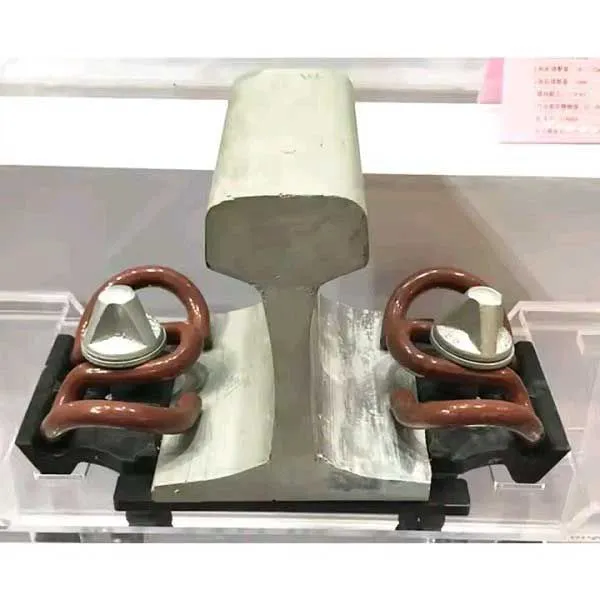

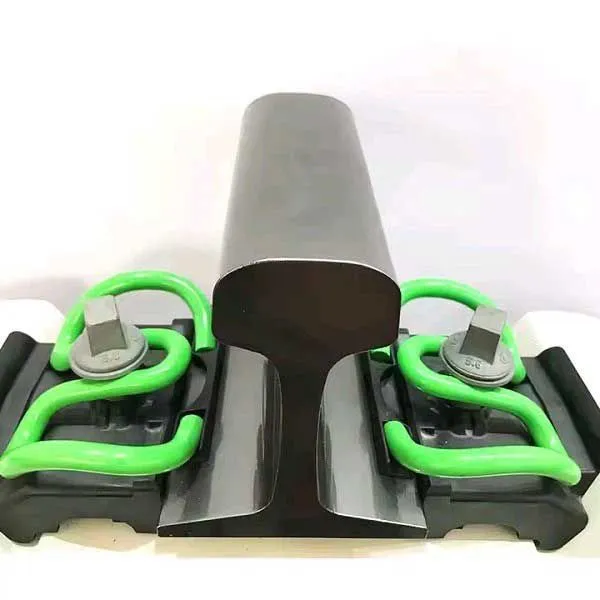

One set of Vossloh fastening system contains.

A) Tension clamp Skl14 -4 units;

B) Screw spike Ss 35/Uls 7 -4 units;

C) Angled Guide Plate Wfp-14K12 -4 units;

D) Plastic dowel -4 units;

E) Rail Pad - 2 units;

What is W12 Railway Fasteners System?

The SKL12/W12 railway fastening system is a type of elastic clip rail fastening system, specifically designed for use with concrete sleepers in ballast-less tracks (or slab tracks), securing the rail to the sleeper and maintaining gauge and preventing rail movement.

The W12 railway fastening system is suitable for challenging weather conditions, including extreme temperature fluctuations (-60°C to +50°C) and regions with high atmospheric humidity.

The system utilizes highly elastic components, like cellentic rail pads, to allow for rail deflection and optimize load distribution, ensuring smooth running and minimizing vibrations.

The W12 system ensures stable rail deflection, which leads to fewer vibrations and a smoother ride.

The W12 system typically consists of a tension clamp (SKL 30), sleeper screw, angle guide plate, and rail pad.

The W3012

Rail tension clip W12 is a part of Railway Fasteners System for Subway.

SKL Spring Clips/W Rail Clip Processing:
1. Raw Materials Inspection;
2. Cutting: Precision cutting ensures optimal size and stability.
3. Heating: Advanced heating techniques for durability.
4. Forging: Crafting with high precision for strength.
5. Quenching: Rapid cooling to enhance hardness.
6. Tempering: Refining the material for resilience.
7. Inspection and Testing: Rigorous quality checks for reliability.

roduct Details

 Signum Rail Fastening is specialists in manufacturing and supplying superior-grade elastic rail clip products, tailored exclusively for railway use. Crafted using premium raw materials, our elastic rail clips boast exceptional tensile strength and resistance to corrosion, thanks to precision engineering. Additionally, we offer customization options to meet client-specific requirements at competitive prices.

Celebrated throughout the railway industry, the elastic rail clip delivers unparalleled clamping performance, ensuring both robust rail fixation and straightforward installation.

With the advent of out-of-patent technology from Pandrol and Vossloh, Signum has partnered with esteemed quality manufacturers. This collaboration allows us to present a cost-efficient selection of elastic rail clips, designed to adapt to various rail sections and applications, including the esteemed SKL tension clamp.

Signum's commitment to precise dimensional control, coupled with the use of top-tier spring steel, guarantees that our elastic rail clips and other railway fastenings consistently meet stringent specifications, addressing the diverse needs of our clients.

We excel in producing elastic rail clips adaptable to any toe load and axle load specifications, suitable for wooden, steel, or concrete sleepers. Our offerings include clips with steel bar diameters ranging from 12mm to 20mm. We provide variants with flat toes for broad gauge lines, supporting a toe load from 850kgf to 1100kgf, and can accommodate virtually any load requirement.

Technical Specifications of the Elastic Rail Clip

Our clips, made from spring steel with a deflection of 9.1mm, boast a fatigue life of up to 5 million cycles, ensuring durability without failure.

Material: 60Si2MnA - Chosen for strength and resilience.

Surface Options: Available in plain, black painting, or red painting for versatile aesthetics.

MOQ: 5000 PCS - Minimum order quantities apply for optimal production.

Packing: Packaged in plastic bags and wooden pallets, or customized based on client requirements.

2. We proudly stand as a leading manufacturer and exporter of SKL tension clamps, crucial for ensuring electrical insulation of the rails. These innovative clamps maintain the rail elastically on its support across both vertical and transverse axes. Our design includes a comprehensive fixing and support device, featuring a support-defining table, protective shoulders, and an efficient insulating clip, all working together for optimal rail maintenance.

Our elastic rail clip features a boltable design with exceptional permanent clip strength, tailored mainly for rail construction with concrete sleepers. Sizes include diameters from 13mm to 15mm, available in models SKL1, SKL2, SKL3, SKL12, SKL14, SKL21, SKL30, etc.

Fatigue Property: Engineered to endure no less than 5 million cycles, ensuring long-lasting performance.

Loading Property: Under a pressure range of 8-12KN, the displacement remains between 9-12mm, ensuring stability under load.

Material: 60Si2CrA - Engineered for enhanced performance and reliability.

Surface Finishing: Available in plain, black painting, or red painting for customized aesthetics.

MOQ: 5000 PCS - Ensuring efficient and high-volume production.

Packing: Meticulously packed in plastic bags and wooden pallets, adaptable to client specifications.

Kunshan Signum Machinery Technology Co., Ltd. is proudly recognized as an officially approved manufacturer of elastic rail clips and a broad range of railway fasteners. Our Durable Railway Clip Fasteners for Optimal Rail Fixing Performance are ingeniously crafted for seamless rail track assembly, distinguished by their effortless fitment during track installation, straightforward and cost-effective maintenance, unparalleled durability, and economical longevity. These attributes ensure a swift and efficient replacement process. Serving both domestic and international markets for many years, our elastic rail clips and railway fastenings have consistently delivered superior performance and reliability.

Kunshan Signum Machinery Technology Co., Ltd. specialize in manufacturing rail rail clips, rail angle plates, rail dowels, rail pads for the SKL14 rail fastening system.
