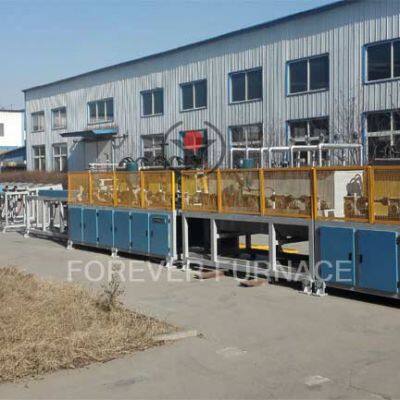

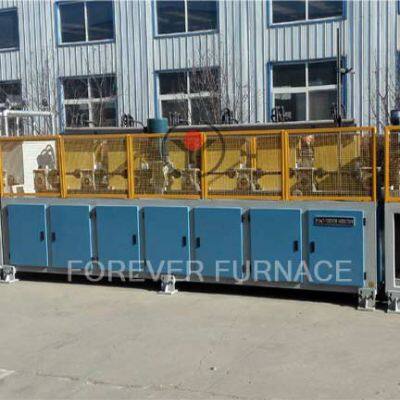

Ribber steel bar hardening and tempering induction equipment

Ribber bar hardening and tempering furnace

●  Automatic feeding, heating, cooling and discharge, saving a lot of manpower and resources
●  Mature temperature closed-loop control system to ensure quality consistency and reliability
●  ”One-click” quick operation, the entire production line will automatically follow the set process parameters to start running
●  Siemens PLC control system can store, query and print the specifications of the process parameters.

Ribber bar induction hardening and tempering machine working process

●  Crane lifting the ribber bar on the storage platform
●  Automatic turning to the feeding roller table
●  Conveying the bars into induction heater for Austenitizing
●  Spray cooling for quenching
●  Tempering for holding
●  Spray cooling
●  Walking beam cooling table
●  Bar receiving platform

Ribber bar hardening and tempering  machine advantages

●

Ribber bar hardening and tempering line is using PLC fully automatic control system to control all the actions including feeding, heating, cooling and discharging to save labors.

●  The roller table of ribbed bar hardening and tempering line adopts 304 non-magnetic stainless steel, roller shaft and the workpiece into the 18-21 degree angle. The workpiece will go forward while rotate by itself.

●  The feeding system of ribbed bar hardening and tempering line is using Nordisk reducer with independent inverter control.

●   The ribbed bar hardening and tempering line is using automatic injecting system to maintain the service life of components.

●   Input system pneumatic components adopts well-known brands such as: cylinder, diad, controller and so on.

●   The temperature fluctuation range is ± 10 ℃ with uniform heating. The operator can see the temperature changes from the touch screen curve.

●   After hardening and tempering, the ribbed bar has very high toughness and impact strength.
