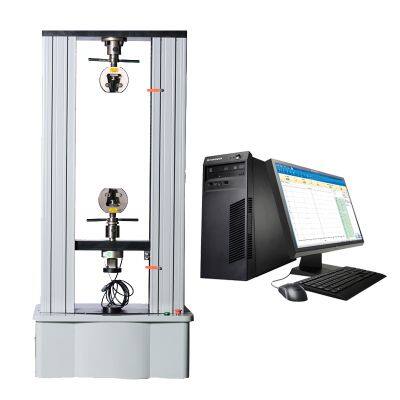

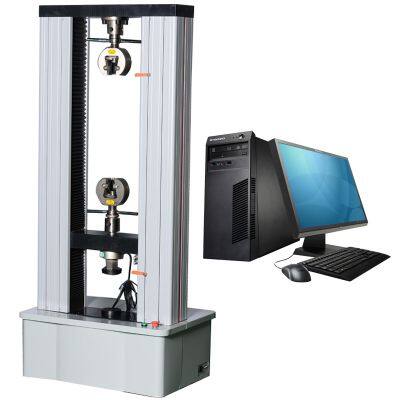

computerized electronic two columns servo universal tensile testing machine 5KN to 100KN

Name: computerized electronic two columns servo universal tensile testing machine 5KN to 100KN
Brand: wangtebei
Availability: InStock

FOB Price

USD $3000 - $10000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port tianjin,qingdao,shanghai
Payment TermsT/T
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	wangtebei	Place of Origin	China
Model Number	WDW	Power	Electronic
Usage	Tensile Testing Machine

Product Description

two columns computer control electronic tensile testing machine

1 Introduction

l Suitable for tension, compress, shear, peeling, tear, test

l Attractive appearance, easy operating, stable and reliable

l Dual test space, upper space for tension test, bottom space for compress test

l Crossbeam speed can reach up to 500mm/min, suitable for most test speed

l Low noise during test

l Suitable for industries of metal manufacturing, non-metal manufacturing, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments

2. Test method

GB/T 2611 testing machine General technical requirements

GB/T 16491 electronic universal testing machine

GB/T 16825.1 Inspection of static single-axis testing machines - Part 1 : Tests and s

ISO 7500-1 metallic materials-verification of static uniaxial testing machines- parts 1: tension/compression testing machines-verification and calibration of the force-measuring system

GB/T 228 metal materials tensile test method at room temperature

GB/T 232 metal material bending test method

GB/T 7314 metal materials room temperature compression test method

3. Technical parameters

No	Item	Specification
1	Force capacity	20KN and lower	30/50KN	100KN
2	Measuring range	1%-100%FS
3	Accuracy of force value	Less than ±1% of set value
4	Precision of displacement	0.01mm
5	Accuracy of displacement value	±1%
6	Deformation measuring range	0.4%-100%FS
7	Accuracy of deformation measuring	±0.5%
8	Resolution of deformation	0.01mm
9	Force speed range	0.005-5%FS/S
10	Accuracy of force speed	Less than ±1% of set value
11	Deformation speed range	0.02-5%FS/S
12	Accuracy of deformation speed control	When set value is less than 0.05%FS，error is less than ±2.0% of set value When set value is more than 0.05%FS，error is less than ±0.5% of set value
13	Displacement speed range	0.001-500mm/min
14	Accuracy of displacement speed	When speed is less than 0.01mm/min，error is less than ±1.0% of set value When set value is more than 0.01mm/min，error is less than ±0.2% of set value
15	Range of constant force, constant deformation, constant displacement control	0.5％～100％FS
16	Accuracy of constant force, constant deformation, constant displacement control	When set value is less than 10%FS，error is less than ±1.0% of set value When set value is more than 10%FS，error is less than ±0.1% of set value
17	Accuracy of deformation speed	When set value is less than 0.05%FS，error is less than ±2.0% of set value When set value is more than 0.05%FS，error is less than ±0.5% of set value
18	Tension space	700mm	700mm	700mm
20	Voltage	Single phase,220V±10%,50Hz(110V)
21	Motor power	0.75KW	0.75KW	1.5KW
22	Dimension	750x480x1700mm	720x520x1800mm	900x600x2100mm
23	Weight	280kg	350kg	450kg

4. software introduction

4.1 auto stop: crossbeam auto stop when sample break

4.2 auto save: test parameters, test curves and test results can be auto saved after test

4.3 speed adjusting: speed of crossbeam can be adjusted during test automatically or manually

4.4 auto calibrating: system can do auto calibrating

4.5 easy operate: computer software can auto finish test procedures, measuring, displaying and analyze test data.

4.6 batch test: for test sample with same parameters, test can be finished in order after one time setting

4.7 display mode: data and curves can be displayed during test in real time

4.8 curve scanning: test curves can be re-analyzed after test, test date of each point on the test curve can be displayed via mouse click

4.9 curve choosing: stress-strain curve, force-displacement curve, force-time curve, displacement-time curve can be chosen accords with test requirement.

4.10 test report: test report can be printed in different format

4.11 stroke protection: mechanism and program control protecting functions

4.12 over load protecting: when force is more than 3%-5%of rated capacity, machine will auto stop.

Company Profile

jinan wangtebei instrument and equipment co.,ltd

Jinan Wangtebei Instrument and Equipment Co.,ltd, located in the beautiful spring city, specialized in the design, manufacture and selling of material testing machines for metal and nonmetal materials. Our company has always been adhering to the innovative and sustainable development as the service concept, with customer satisfaction as the standard, to provide users with a complete set of material testing solutions. Our company has a professional and experienced mechanical, electrical, electronic, and software R&D and design personnel. It is extremely professional in its industry standards/requirements and keeps up to date with the development trend of the testing machine industry, thus ensuring the company's continuous improvement in new technology research and development; advanced Machining equipment, professional machining equipment operators and standardized quality management processes ensure that the company's product quality is controllable and reliable, making the production products more stable and fine. The sales/after-sales service team is professional, energetic, detailed in division of labor, and considerate in service. At present, our company mainly produces including: tensile strength tester, hydraulic universal testing machine series, electronic universal testing machine series, manhole cover testing machine, impact testing machine series (including notched broach, cryogenic bath, projector supporting impact testing), cup protrusion testing machine, manhole cover testing machine, horizontal tensile testing machine, bending testing machine , Torsion testing machine, anchor testing machine, relaxation testing machine, hardness tester, metallographic sample preparation instruments and other products, which are widely used in iron and steel metallurgy, machinery manufacturing, shipbuilding, aerospace, ordnance, automotive, railway, pressure vessel, Steel pipes, rubber, plastics, colleges, scientific research units and quality inspection institutions and other industries.
