Product Details
Brand Name | wangtebei | Place of Origin | China | |
Model Number | WTB-BCT-40 | Power | Electronic | |
Usage | Torsion Tester |
Product Description
1. brief introductions

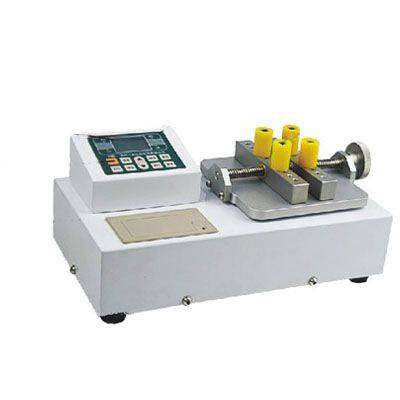

The digital bottle cap torque tester is an intelligent and multifunctional measuring instrument designed and manufactured for testing and detecting various torque bottle caps. Mainly used for detecting and correcting tightening force, component torsional destructive testing, etc. It has the characteristics of simple operation, high precision, comprehensive functions, and easy portability, and is widely used in various industries such as electrical, light industry, mechanical manufacturing, and scientific research institutions.
2. specifications
No. | Item | Spec. |
1 | Capacity | 1Nm,2Nm, 3Nm, 5Nm,10Nm,20Nm,40Nm |
2 | Resolution | 0.0001Nm(1-5Nm), 0.001Nm (10-40Nm) |
3 | Accuracy | ±1% |
4 | Voltage | 7.2V 1.2Vx6 NiMH battery pack |
5 | Charging time | 10-12 hours |
6 | Battery continuous working time | 10 hours |
7 | Battery life time | ≥300 times |
8 | Dimension | 400x200x200mm |
9 | Net weight | 36kg |
10 | Charger | Input: AC 220V 50Hz Output: DC 12V 500mA |
11 | Clamping range | 9mm – 165mm |
3. features
3.1 High precision, high resolution, fast sampling speed, full screen display.
3.2. Adopting high-precision torque sensors with torque direction display.
3.3. The setting of upper and lower limits, red and green indicator lights, and audible and visual alarms for the buzzer.
3.4. Three units can be converted to each other for selection (N · m, kgf · cm, Ib · in).
3.5. Real time, peak, and automatic peak modes can be switched freely.
3.6. Using USB interface for communication with PC, the synchronous testing function can be connected to a computer for testing. The computer displays the test force curve graph and detailed records of the test force during the testing process, and can save, print, and perform various analyses.
3.7. Peak holding, automatic release function, and free setting of release time.
3.8. Large storage capacity, capable of storing 99 sets of test data.
3.9. Automatic shutdown function without operation, time can be freely set.
Company Profile

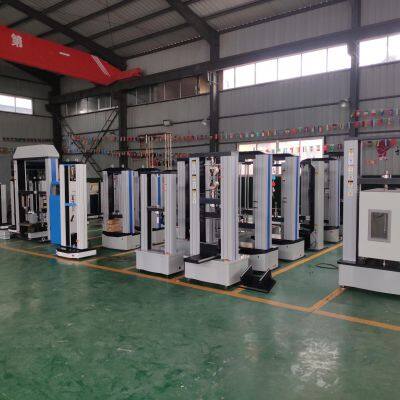

Jinan Wangtebei Instrument and Equipment Co.,ltd, located in the beautiful spring city, specialized in the design, manufacture and selling of material testing machines for metal and nonmetal materials. Our company has always been adhering to the innovative and sustainable development as the service concept, with customer satisfaction as the standard, to provide users with a complete set of material testing solutions. Our company has a professional and experienced mechanical, electrical, electronic, and software R&D and design personnel. It is extremely professional in its industry standards/requirements and keeps up to date with the development trend of the testing machine industry, thus ensuring the company's continuous improvement in new technology research and development; advanced Machining equipment, professional machining equipment operators and standardized quality management processes ensure that the company's product quality is controllable and reliable, making the production products more stable and fine. The sales/after-sales service team is professional, energetic, detailed in division of labor, and considerate in service. At present, our company mainly produces including: tensile strength tester, hydraulic universal testing machine series, electronic universal testing machine series, manhole cover testing machine, impact testing machine series (including notched broach, cryogenic bath, projector supporting impact testing), cup protrusion testing machine, manhole cover testing machine, horizontal tensile testing machine, bending testing machine , Torsion testing machine, anchor testing machine, relaxation testing machine, hardness tester, metallographic sample preparation instruments and other products, which are widely used in iron and steel metallurgy, machinery manufacturing, shipbuilding, aerospace, ordnance, automotive, railway, pressure vessel, Steel pipes, rubber, plastics, colleges, scientific research units and quality inspection institutions and other industries.
