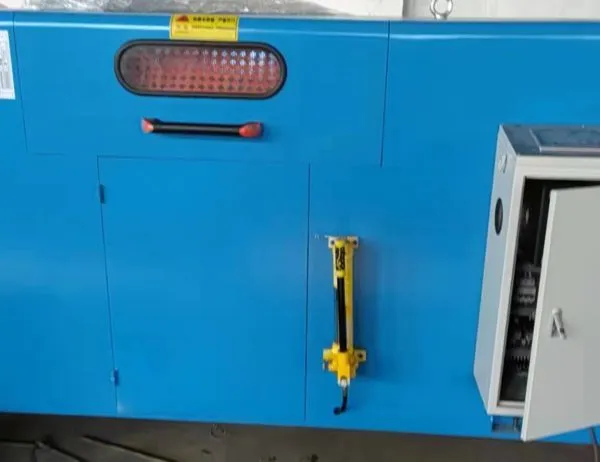

High-Speed Stranding Machine，Bunch Strander photo-2

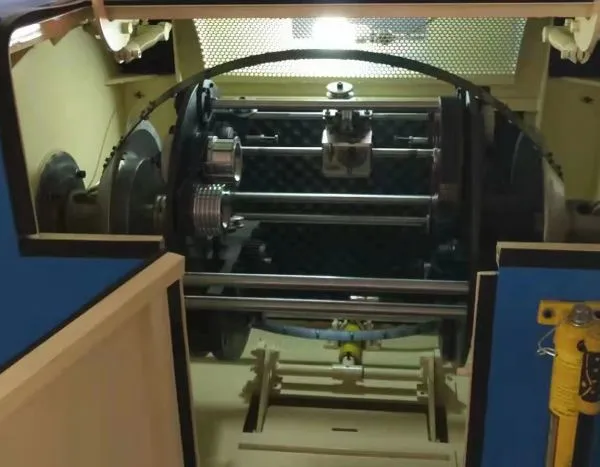

High-Speed Stranding Machine，Bunch Strander photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
YUFENG
Place of Origin:
China
Model Number:
YF-6800
Contact Supplier Request Quote Chat Now
Hunan Yu Feng Industrial Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YUFENG
Place of Origin China
Model Number YF-6800
Technical Parameters of 500mm High-Speed Stranding Machine & Copper Wire Buncher


1. Application

  • Stranding or concentric bundling of various wires: bare copper, tinned copper, copper-clad steel, copper-clad aluminum, alloy wires, etc.

2. Pay-off Method

  • Single-head passive pay-off

3. Input Wire Diameter

  • Ø0.035–2.5mm

4. Stranded Cross-Sectional Area

  • 0.035–2.5 mm²

5. Take-up Spool

  • Max. DIN 500

6. Stranding Speed

  • 3000 RPM / 6000 TPM (twists per minute)

7. Drive Motor

  • 7.5 kW AC motor

8. Lay Length Range

  • 4.22–39.64mm (28 standard gear settings)

9. Shaft Loading/Unloading

  • Manual hydraulic lifting system

10. Traverse Mechanism

  • Lead screw traverse with adjustable amplitude and pitch

11. Noise Level

  • ≤85 dB(A)

12. Tension Control

  • 256-step friction disc auto-tension control for consistent winding from empty to full spool

13. Braking System

  • Electromagnetic brake with auto-stop for broken wire/strand detection

14. Center Height

  • 750mm

15. Stranding Bow

  • Dynamically balanced steel bow minimizes vibration at high speeds; ceramic guides ensure smooth wire passage

16. Traction System

  • Active traction wheel (chrome-plated for durability) with synchronous belt drive (no open gears); enables lay length adjustment

17. Stranding Direction

  • Left (S) or right (Z) selectable

18. Dimensions (L×W×H)

  • 2500 × 1200 × 1300mm

19. Weight

  • Approx. 2000kg


Product Tags: Automatic Wire Stranding System , Planetary Strander , High-Speed Twisting Machine
