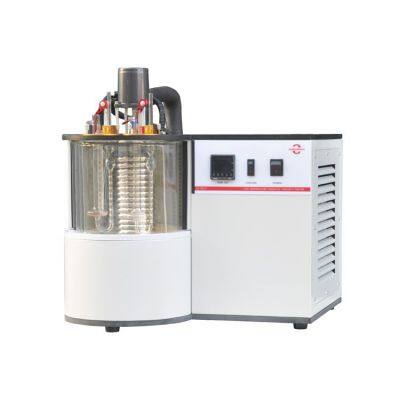

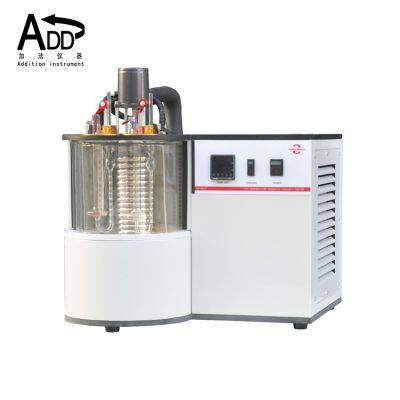

ASTM D445 Petroleum Products Low Temperature Kinematic Viscosity Tester

Petroleum Products Low Temperature Kinematic Viscosity Tester

Product Model: JF265D

Product Introduction

This instrument is suitable for measuring low temperature viscosity of petroleum products. The mechanism of the instrument: At a certain constant temperature, the time for a certain volume of liquid to flow through a calibrated glass capillary viscometer under gravity is measured, and the product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the liquid measured at that temperature.

Technical Parameter

1. Applicable standards: ASTM D445, ISO3104, DIN51366, GB/T265

2. Temperature control method: PID digital temperature controller

3. Temperature control accuracy: Rt ～ -20±0.1℃

Or Rt ～ -40±0.1℃

4. Heating method: Electric heating tube heating

5. Refrigeration method: Compressor refrigeration

6. Working unit: 2 tubes

7. Working power supply: AC220V/50Hz

8. Machine power: 2500W

9. Instrument size: 490*470*520mm

10. Net weight: 50KG

11. HS Code: 9027899090

Features

1. The Dewar bottle is used as the bath body for transparent observation;

2. One-piece structure, easy to operate;

3. Vacuum Dewar bottle insulation, inner cylinder Φ150×300mm;

4. Two samples can be tested at the same time, which is convenient for parallel samples;

5. High-power solid-state relay control output, no voltage leakage;

6. There is a stirrer on the electronic heating bath;

7. Stainless steel heater;

8. The thermostat displays the heating status;

9. The shell is made of high-quality cold-rolled steel plate, and the surface is treated with electrostatic spray, which has good rust resistance and is easy to clean;

10. Safety facilities to prevent overheating and low water level;

11. It is very convenient to contact the control box.
