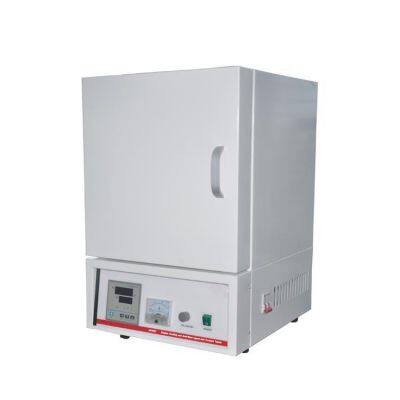

ASTM D482 Ash From Petroleum Products Tester Carbon Residue Test Device

Ash from Petroleum Products Tester

ASTM D482

Product model: JF508

Product Introduction

This instrument is suitable for the determination of ash in petroleum products. It does not apply to petroleum products containing pig iron additives. It also does not apply to lubricating oil containing lead and used engine crankcase oil.

Principle: Using ash-free filter paper as the kindling core, ignite the sample placed in an appropriate container and make it burn until only ash and residual carbon remain. The carbon residue is heated into ash in a 775℃ high temperature furnace, and then cooled and stabilized.

Technical Parameter

1. Applicable standard: ASTM D482, GB/T508

2. Heating method: Imported electric heating wire heating

3. Temperature control mode: Imported PID temperature controller

4. Temperature control range: Rt ~800℃

5. Temperature control accuracy: ±10℃

6. Power: 2500W

7. Size: 400*460*620mm

8. Working power supply: AC220V 50HZ

9. Net weight: 42KG

Main Feature

1. Hot ceramic furnace, good insulation effect, avoid scald to staff;

2. Microcomputer processing and PID control, digital display setting and actual temperature, accuracy 0.1 °C, Pt100 RTD temperature probe;

3. Porcelain silicon evaporating dish, 50~100ml,120~150ml, in line with the standard requirements;

4. Loose-leaf furnace door, easy to open and close;

5. Separate the electrical control box from the heating box to reduce the damage caused by high temperature to the electrical box;

6. Split structure, simple operation

7. Imported electric furnace wire heating, prolong the service life;

8. The shell is made of high quality cold rolled steel plate mold.

1. Q: What services are supported?

A: Free lifetime online technical services are supported.

2.Q: How long is the warranty period of the equipment sold?

A: The warranty is for twelve months

3.Q: How long is the delivery time?

A: Within 3 working days after receiving the down payment for the products in stock, and the specific delivery time depends on the order quantity and products.

4.Q: What is the minimum order quantity?

A: For the equipment, the minimum order quantity will be 1 set. For the lab parts, please contact us for final confirmation.

5.Q: What’s your transportation?

A: Express, air, sea transportation are supported, and appointed forwarders are also supported.

6.Q: Do you accept customization service? Can I have my logo on the machine?

A:Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.

7.Q: How to install and use the product?

A: Operating instructions or video will be sent to you online or by email. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.

8.Q: What’s the trade term and delivery term?

A: Most of the common trade terms are supported, like CIF, FOB, CFR and so on . We have ordinary instruments in stock, the delivery time is 1-7 working days. If there are not in stock, the delivery time is 15-30 working days after the down payment.  If you are in urgent, we can consider making a special arrangement for you.
