Low Intensity Type B Aviation Obstruction Light 48v Dc for Instrument Flight Procedures and Low Flying Zones

Shenzhen Dinsee Smart Tecnnology Co.,Ltd
Low Intensity Type B Aviation Obstruction Light 48v Dc for Instrument Flight Procedures and Low Flying Zones thumbnail-1
Low Intensity Type B Aviation Obstruction Light 48v Dc for Instrument Flight Procedures and Low Flying Zones thumbnail-2
Low Intensity Type B Aviation Obstruction Light 48v Dc for Instrument Flight Procedures and Low Flying Zones thumbnail-3
Low Intensity Type B Aviation Obstruction Light 48v Dc for Instrument Flight Procedures and Low Flying Zones thumbnail-4
Low Intensity Type B Aviation Obstruction Light 48v Dc for Instrument Flight Procedures and Low Flying Zones thumbnail-5
Low Intensity Type B Aviation Obstruction Light 48v Dc for Instrument Flight Procedures and Low Flying Zones photo-1
Low Intensity Type B Aviation Obstruction Light 48v Dc for Instrument Flight Procedures and Low Flying Zones photo-2

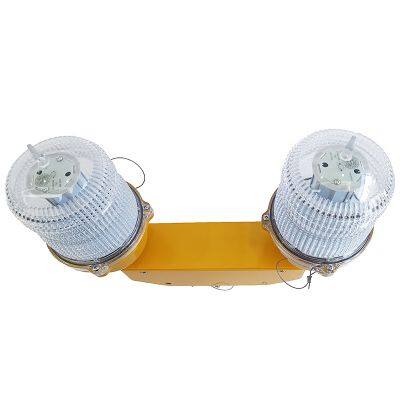

Low Intensity Type B Aviation Obstruction Light 48v Dc for Instrument Flight Procedures and Low Flying Zones photo-3
Low Intensity Type B Aviation Obstruction Light 48v Dc for Instrument Flight Procedures and Low Flying Zones photo-4
Low Intensity Type B Aviation Obstruction Light 48v Dc for Instrument Flight Procedures and Low Flying Zones photo-5
US$ 149 - 299 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
Dinsee
Place of Origin:
China
Model Number:
X-OL32D
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Dinsee
Place of Origin China
Model Number X-OL32D
Certification CCC, CE, EMC, FCC, ROHS
Light Source LED
Base Type E11
Lamp Body Material ABS
Emitting Color Red
IP Rating IP66
Beam Angle(°) 360
Color Temperature(CCT) Cool White
Lamp Luminous Flux(lm) 32cd
Lamp Power(W) 60
Input Voltage(V) DC24/48 or AC100-240V
Effective Intensity
32.5 Candela
Vertical Divergence
10 Degree
Horizontal Divergence
360 Degree
LED Color
Red
LED Lifespan
100,000 Hours
Flash Pattern
Steady Burning(Default) or Flashing Mode(20-60 times/min)
Power Consumption
5W(Steady Burning)
Input Voltage
85-265VAC,50/60 Hz;12VDC;24VDC;30-60VDC
Lens
Polycarbonate,UV Stabilize
Body
Die-casting Aluminium
Water-proof
IP67
Weight
3.5KGS
Dimension
340x413x140mm
Mounting Size
Threaded 3/4'' bottom hub
Temperature Range
-40°C~+55°C
Wind Speed
Up to 150mph(240kph)
Warranty
5 years
Optional
Available in flashing pattern(40FPM)
Available with built-in photocell
Available with built-in alarm relay contacts

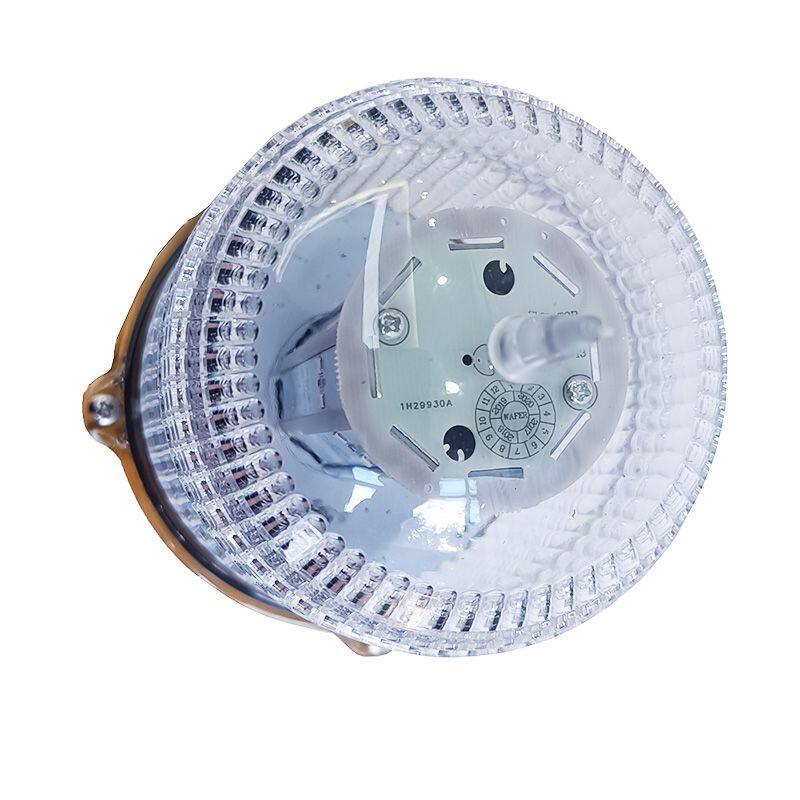

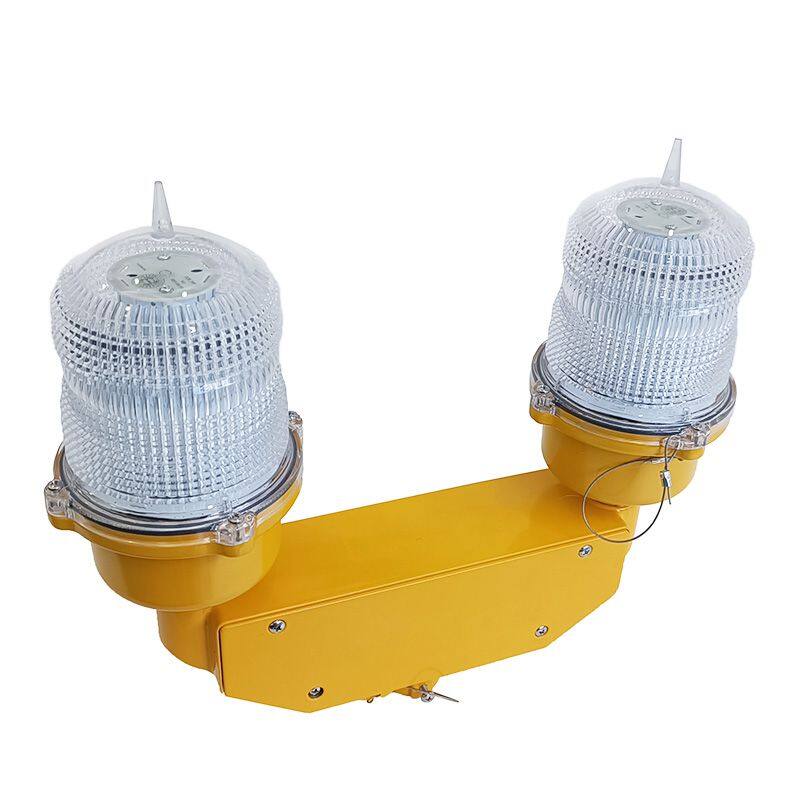

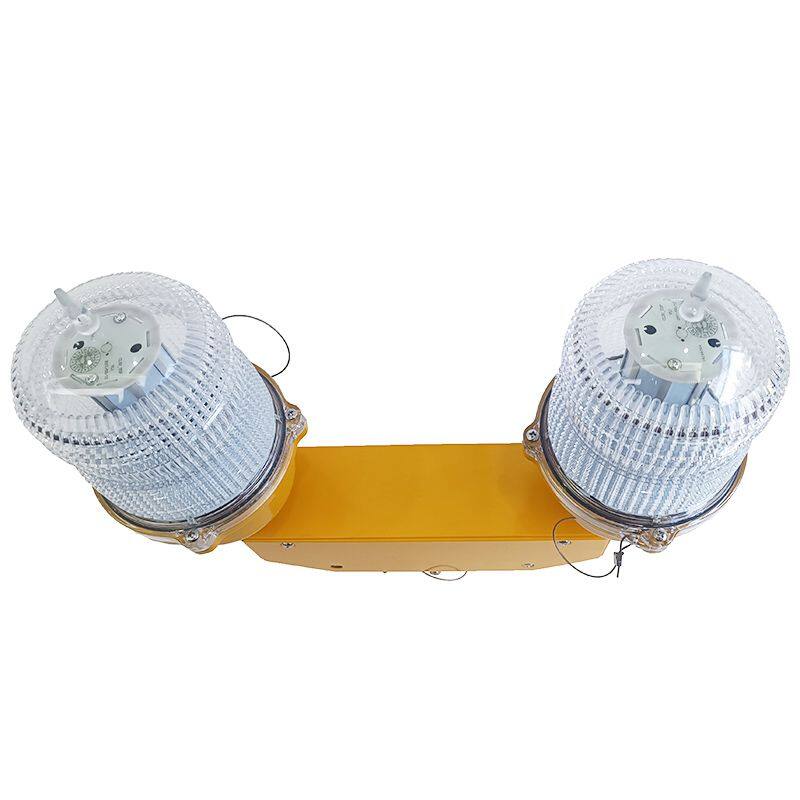

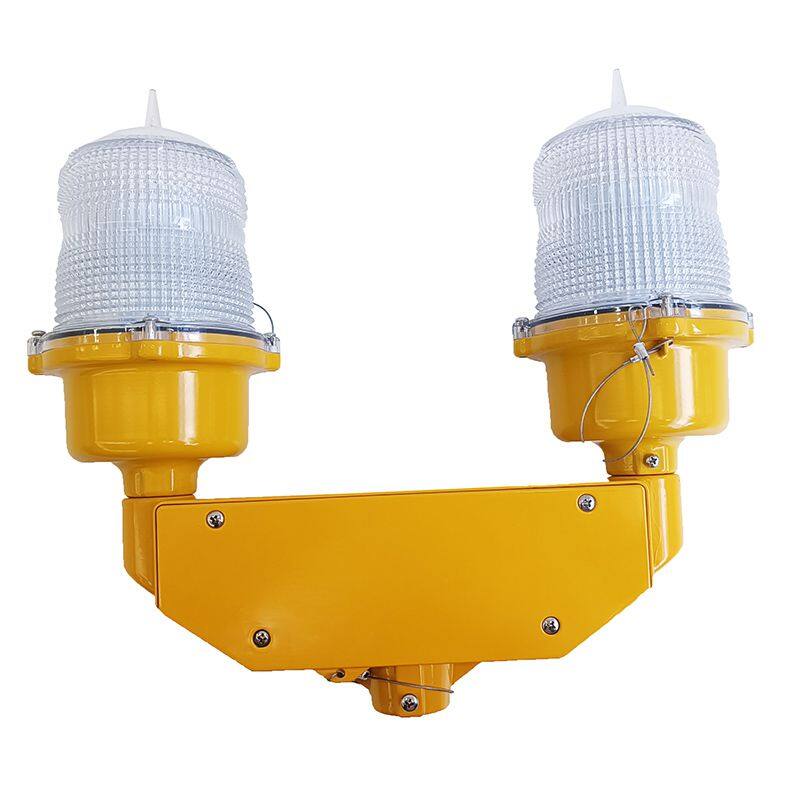

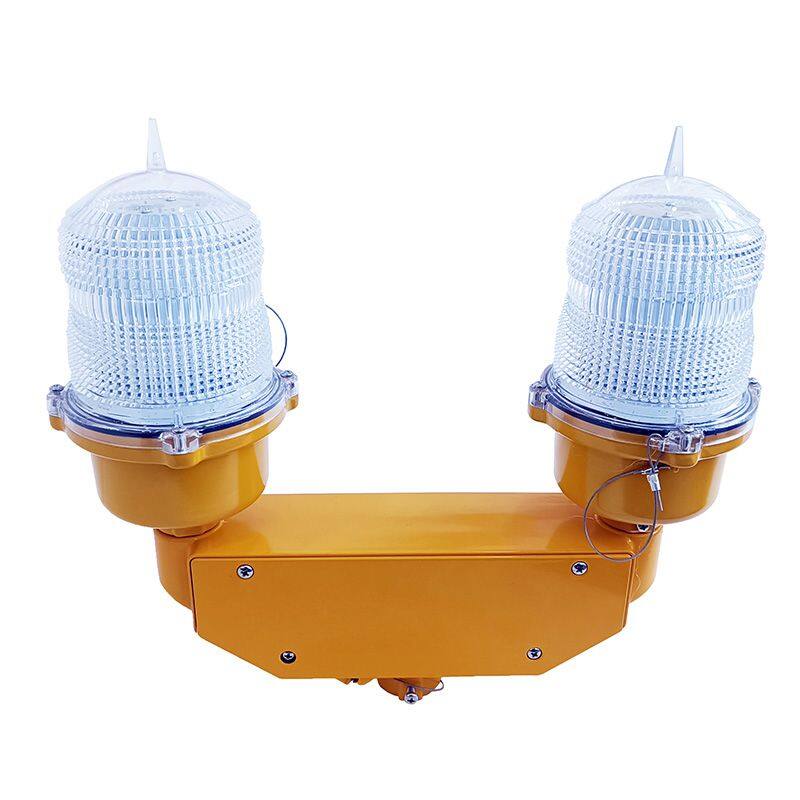

Obstruction light 7Obstruction light 2Obstruction light 4Obstruction light 6Obstruction Light 5

Product Tags: obstruction light , aviation obstruction light , light
