Home > Lights & Lighting > Emergency Light & Indicator Light > Aviation Obstruction Light > High Intensity Aviation Obstruction Light for Electric Transmission Line/Airport

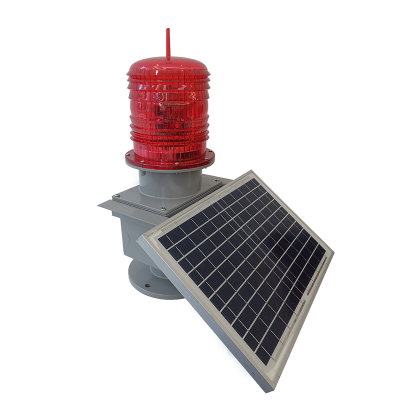

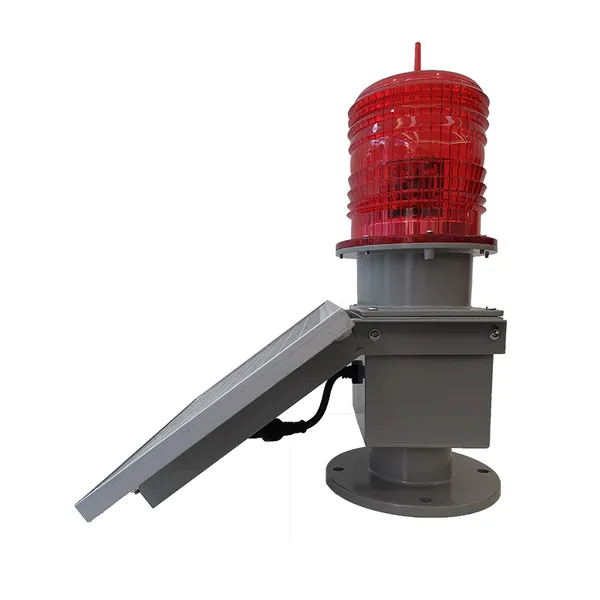

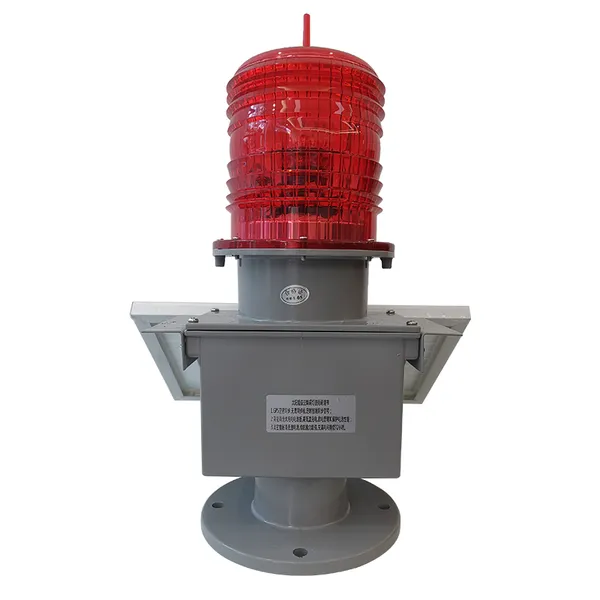

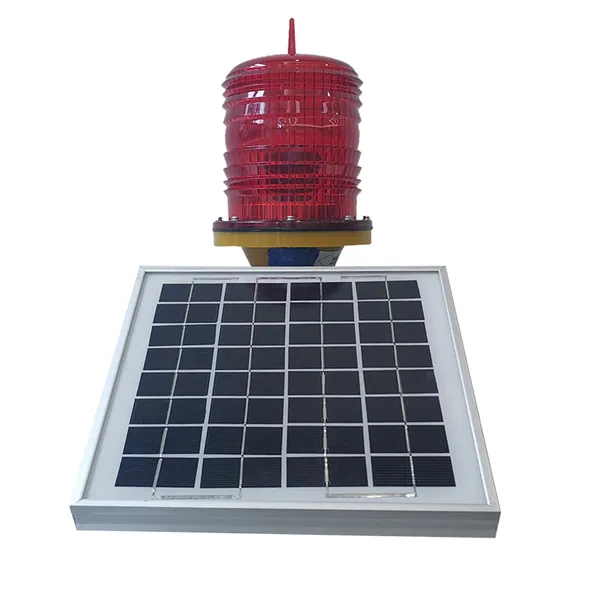

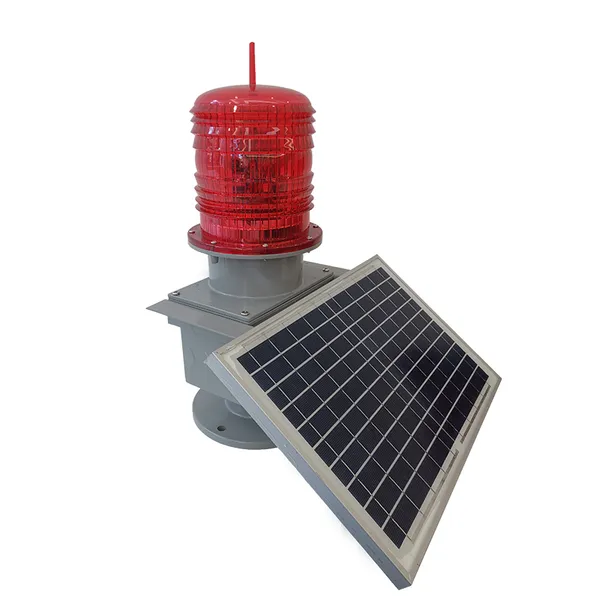

High Intensity Aviation Obstruction Light for Electric Transmission Line/Airport
US$ 159 - 299
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
Dinsee
Place of Origin:
China
Model Number:
DX-JSS100-HKD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
10 days
Related Products
-
Twin LED Obstruction Light for Electric Power LineUS$ 139 - 299MOQ: 10 Pieces -
Solar Obstruction Marker With Voice AlarmUS$ 69 - 199MOQ: 50 Pieces
-
Low Intensity Type B Aviation Obstruction Light 48v Dc for Instrument Flight Procedures and Low Flying ZonesUS$ 149 - 299MOQ: 50 Pieces
-
High Voltage Transmission Line Led Obstruction Light Mark and Illuminate Visual for Low Flying CraftsUS$ 139 - 299MOQ: 10 Pieces
-
Radar and Infrared Motion Active Siren Alarm Outdoor for High Electric Hazards Security SitesUS$ 69 - 199MOQ: 50 Pieces
Brand Name
Dinsee
Place of Origin
China
Model Number
DX-JSS100-HKD
Certification
CCC, CE, EMC, FCC, ROHS
Light Source
LED
Base Type
AR111
Lamp Body Material
ABS
Emitting Color
Red
IP Rating
IP66
Beam Angle(°)
360
Color Temperature(CCT)
Cool White
Lamp Power(W)
60
Input Voltage(V)
DC11-18V
| Parameter | Low/Medium Intensity(DX-JSS100-HKD/ML) | Medium/High Intensity(DX-JSS100-HKD/HL) |
| Working Voltage | DC11-18V | DC11-18V |
| Quiescent Current | ≤1mA | ≤1mA |
| Flash Frequency | 10-60 times(Adjustable)with soft boot flash mode | 10-60 times(Adjustable)with soft boot flash mode |
| Color | Red,White,Green,Yellow,Blue | Red,White,Green,Yellow,Blue |
| Light-operated Sensitivity | 50~300LX(Adjustable) | 50~300LX(Adjustable) |
| Working Environment | ~400°C~600°C | ~400°C~600°C |
| Effective Light Intensity | 1600cd(about 6.4KM) | 1600cd(about 6.4KM) |
| Battery Capacity | DC12V 12Ah | DC12V 12Ah |
| Illuminant Lifespan | 80-100K Hours | 80-100K Hours |
| Ingress Protection | IP65 | IP66 |
| External Dimension | 360MMx280MMx450MM | 470MMx365MMx600MM |
| Installation Size | Chassis180mm;Pitch Circle150MM;4-11 Holes | Chassis200mm;Pitch Circle170MM;4-14Holes |
| Weight | 8.5KGS | 8.5KGS |
| 1.Have Low Intensity/Medium/High Intensity aviation obstruction light | ||
| 2.Illuminant uses long lifespan,fast irradiation and high-intensity LED light. | ||
| 3.Daylighting control will be adjusted automatically based on different weather. | ||
| 4.Glint cycle could be setted if necessary. | ||
| 5.Could bear impact,thunder,insolation,blizzard,typhoon,hailstone etc severe weather. | ||
| 6.Long battery life,could work at -40°C low temperature condition and rainny days continuously for over 15 days. | ||
