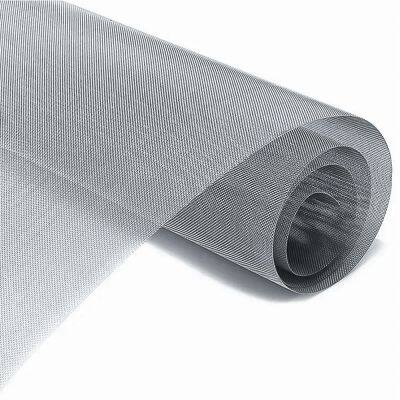

Nickel wire mesh is a metal wire mesh made of high-purity nickel wire. The materials of nickel wire mesh are N2, N4, N6, N8, NI200, NI201, etc. The most commonly used nickel wire mesh materials are N4 and N6. Different meshes, wire diameters and weaving methods can be customized according to different usage requirements.
PPure nickel wire mesh has excellent corrosion resistance and acid resistance. It is mainly used for gas and liquid screening and medium separation under strong acid and strong alkali environment conditions.

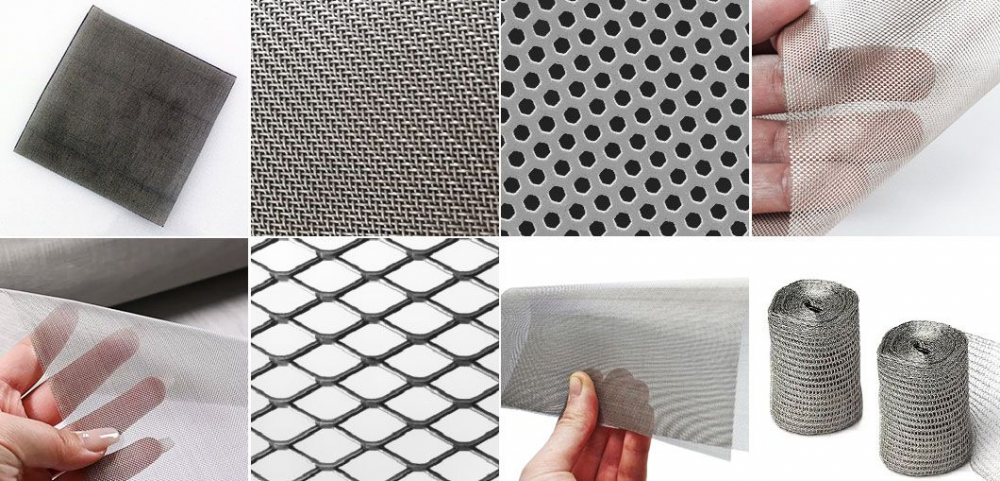

● Woven Nickel Wire Mesh ● Perforated Nickel Wire Mesh ● Electroformed Nickel Mesh ● Pulling Nickel Wire Mesh ● Knitted Nickel Mesh ● Nickel Wire Mesh Panels ● Nickel Wire Mesh Roll ● Customized | Very Competitive Price Adequate Stock & Fast Delivery Manufacturer/Factory Direct Supply With SGS/ISO 9001 Certification Low Minimum Order Quantity Free Test Samples Quick Response Within 12 Hours Payment Terms: T/T(30-50% in advance), L/C, T/T+L/C, Paypal |
Cechen Wire Mesh supports customization of various specifications of nickel wire mesh to suit any application scenario. Contact us now and we will reply you immediately after receiving your message.
Nickel mesh can be produced according to customer needs, and can be customized in wire diameter, mesh size, etc.
| Mesh count | Wire diameter(mm) | Aperture(mm) | Max width(m) |
| 10 | 0.60 | 1.94 | 1.60 |
| 20 | 0.40 | 0.87 | 1.60 |
| 30 | 0.30 | 0.55 | 1.60 |
| 40 | 0.23 | 0.40 | 1.60 |
| 50 | 0.20 | 0.31 | 1.60 |
| 60 | 0.15 | 0.27 | 1.60 |
| 70 | 0.12 | 0.24 | 1.60 |
| 80 | 0.13 | 0.19 | 1.60 |
| 90 | 0.12 | 0.16 | 1.60 |
| 100 | 0.10 | 0.15 | 1.60 |
| 120 | 0.09 | 0.12 | 1.60 |
| 150 | 0.063 | 0.11 | 1.60 |
| 180 | 0.053 | 0.01 | 1.60 |
| 200 | 0.053 | 0.07 | 1.60 |
| 250 | 0.040 | 0.063 | 1.60 |
| 300 | 0.040 | 0.044 | 1.60 |
| 325 | 0.035 | 0.043 | 1.60 |
| 350 | 0.030 | 0.042 | 1.60 |
| 400 | 0.030 | 0.033 | 1.60 |
| Pure Nickel Mark | Ni+Co | Cu | Si | Mn | C | Mg | S | Fe | Impurities |
| Min. | Max. | ||||||||
| N2 | 99.98 | .001 | .003 | .002 | .005 | .003 | .001 | .007 | .02 |
| N4 | 99.9 | .015 | .03 | .002 | .01 | .01 | .001 | .04 | .1 |
| N6 | 99.5 | .06 | .10 | .05 | .10 | .10 | .005 | .10 | .5 |
| N8 | 99.0 | .15 | .15 | .20 | .20 | .10 | .015 | .30 | 1.0 |
1.Extremely strong corrosion resistance
● Acid and alkali corrosion resistance - can resist strong acids such as sulfuric acid, phosphoric acid, hydrochloric acid and various alkaline solutions, suitable for chemical and marine environments.
● Anti-oxidation - will not easily rust or decompose in humid, high temperature and other environments, suitable for high-demand filtration applications.
2.Excellent high temperature resistance
● Can withstand high temperatures above 600℃, and some nickel alloys can even withstand extreme environments above 1000℃.
● Suitable for high-temperature filtration, combustion equipment, aerospace and other applications.
3.Excellent electrical and thermal conductivity
● With good electrical conductivity, it can be used in battery electrodes, electrolytic equipment, electromagnetic shielding and other applications.
● Excellent thermal conductivity, suitable for high-temperature heat transfer equipment and filtration systems.
4.High mechanical strength and wear resistance
● Has high tensile strength
1. Precise customization to meet personalized needs
● Provide nickel mesh products with various specifications, wire diameters, weaving methods, apertures, and thicknesses, which can be customized according to specific industry needs
● Advanced production equipment can realize deep processing services such as laser cutting, welding, stamping, bending, and coating treatment
● One-to-one communication with a professional engineering team to ensure that the product fully meets the customer's application requirements
2. Strict quality control to ensure product stability
● Use high-purity N4, N6 nickel wire and nickel alloy materials to ensure the corrosion resistance and high temperature resistance of the product
● The production process complies with the ISO 9001 quality management system, and each batch of products is strictly tested (chemical composition, mesh accuracy, tensile strength, etc.)
● Provide material test reports and third-party inspection reports to ensure that the product meets international standards
3. Quick response and efficient delivery
● 24-hour online customer service, quickly respond to customer needs, provide professional technical support and product consultation
● Modern production line + large-scale inventory to ensure the spot supply of conventional nickel mesh and fast production of special specifications
● Adopting an efficient logistics system, supporting global delivery, ensuring that products reach customers on time
4. Reasonable price, long-term cooperation guarantee
● Direct supply from the manufacturer, no middleman markup, ensuring that customers get the most competitive price
● Providing preferential policies for long-term cooperation, bulk purchases have more cost advantages
● Flexible and optional payment methods to reduce customer procurement risks
5. Global supply, perfect after-sales service
● With an international supply chain, products are exported to Europe, America, Southeast Asia, the Middle East and other countries and regions
● With a professional after-sales team, providing installation guidance, technical consultation, and maintenance suggestions
● If there are any quality problems with the product, return and exchange services can be provided to make customers worry-free
