The Mark V control system is widely applied in industries such as power generation and petrochemicals within the industrial field. It can precisely control and protect large-scale equipment and complex industrial processes. The GE DS200TCTGG1AFF simplex trip board, as a part of it, undertakes a crucial protective function. It promptly triggers the tripping action when the system malfunctions, ensuring the safety of equipment and personnel.

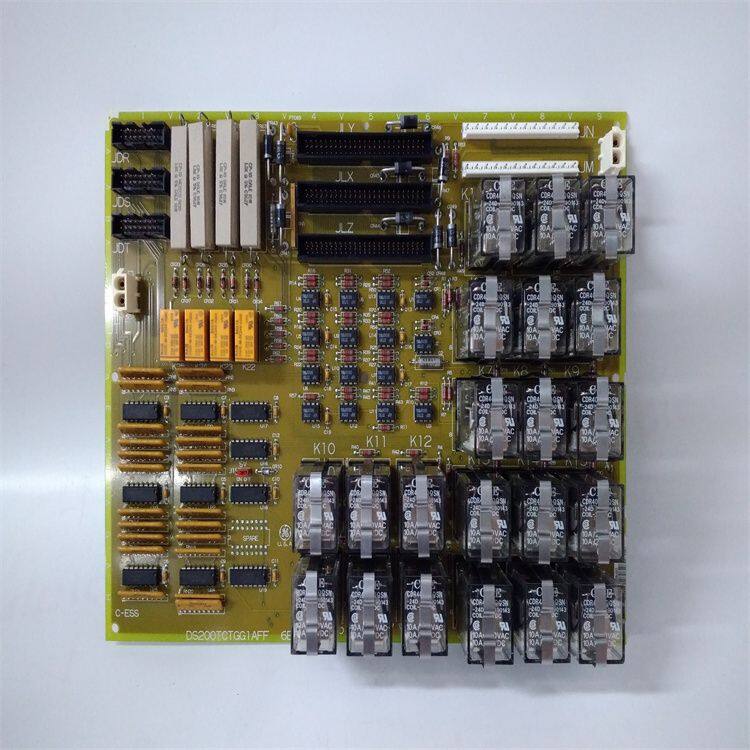

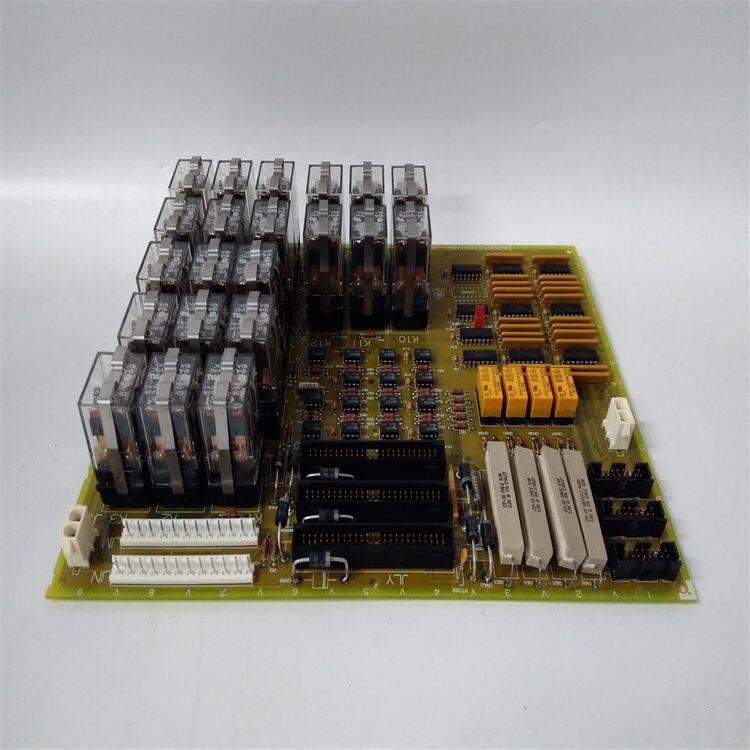

1. Hardware Composition Relays: Equipped with 21 plug-in relays, these relays serve as the executing components for the tripping action. When an abnormal signal is detected, the contacts of the relays will act, thereby controlling the on-off of the circuit and achieving the tripping operation. Electromechanical relays have a certain degree of reliability, but they are relatively fragile and are easily damaged by external factors such as vibration and impact. Connectors: There are 3 50-pin connectors (with IDs of JLY, JLX, and JLZ) and 2 12-pin connectors (with IDs of JN and JM). These connectors are used for electrical connections with other devices or modules to enable the transmission and interaction of signals. For example, they can receive monitoring signals from sensors and send control commands to other control devices.
2. Working Principle Signal Acquisition: By connecting with various sensors, it can collect the electrical parameters (such as current and voltage) and equipment status information in the system in real time. For instance, it connects with current transformers to obtain current signals and with voltage transformers to obtain voltage signals. Signal Processing and Judgment: The collected signals are processed through operations such as amplification, filtering, and analog-to-digital conversion. Then, the processed digital signals are compared with the preset protection thresholds. If the signals exceed or fall below the set thresholds, it indicates that the system may have faults, such as overcurrent, overvoltage, undervoltage, etc. Execution of Tripping Action: Once it is determined that tripping is required, the microprocessor will send control signals to the relays, causing the relay contacts to act. This, in turn, triggers the tripping of switchgear such as circuit breakers, cutting off the faulty circuit and preventing the further expansion of the fault.
3. Performance Characteristics Reliability: Although the relays are relatively fragile, the entire trip board has undergone strict testing and quality control during the design and manufacturing processes to ensure stable and reliable operation in industrial environments and reduce the probability of misoperation and faults. Response Speed: It can quickly respond to abnormal signals and trigger the tripping action within a short time, effectively protecting the safety of equipment and the system. Compatibility: It has good compatibility with other modules of the Mark V control system and can be conveniently integrated into the entire control system to achieve collaborative operation.
4. Application Scenarios Power Generation Industry: It is widely used in the control and protection of generator sets in power plants. It can provide timely protection against faults such as overcurrent, overvoltage, and undervoltage of generators, ensuring the safe and stable operation of generators. Petrochemical Industry: It is used for the protection of various equipment and pipelines in the petrochemical production process. When abnormal situations occur, it can quickly cut off the power supply or fluid channels to avoid safety accidents. Other Industrial Fields: It is also applied in other scenarios where the protection of electrical equipment and industrial processes is required, such as the metallurgical and mining industries.
5. Precautions for Use and Maintenance Electrostatic Protection: The circuit board is easily damaged due to the accumulation of static electricity. During operation and maintenance, anti-static measures need to be taken, such as wearing anti-static gloves and using anti-static tools. Installation and Inspection: When installing, ensure that the connectors are firmly connected to avoid abnormal signal transmission caused by looseness. Regularly check the working status of the relays and the wear condition of the contacts. If any abnormalities are found, replace them in a timely manner. Professional Operation: It is recommended that the operation and maintenance be carried out by technicians who have received professional training to prevent safety errors and production capacity losses caused by improper operation.
