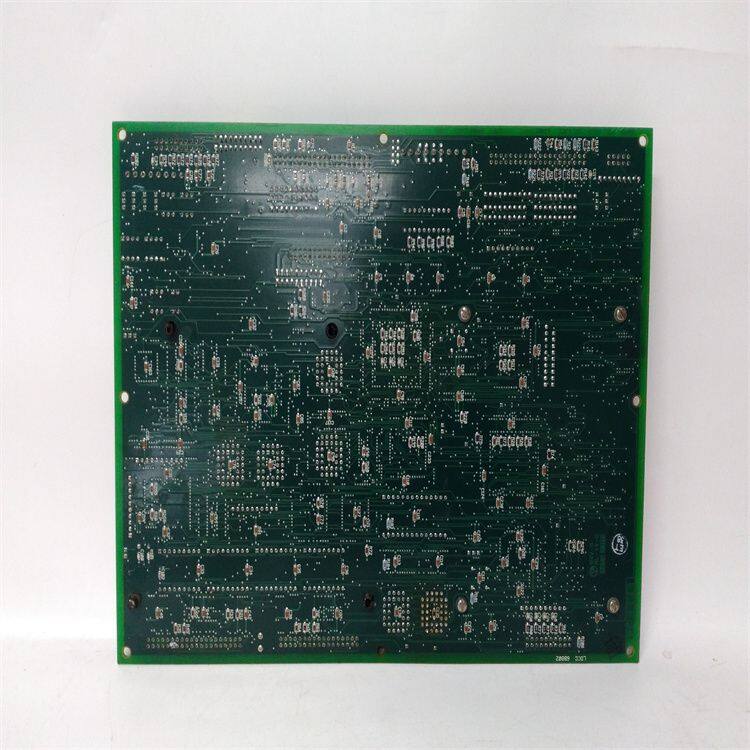

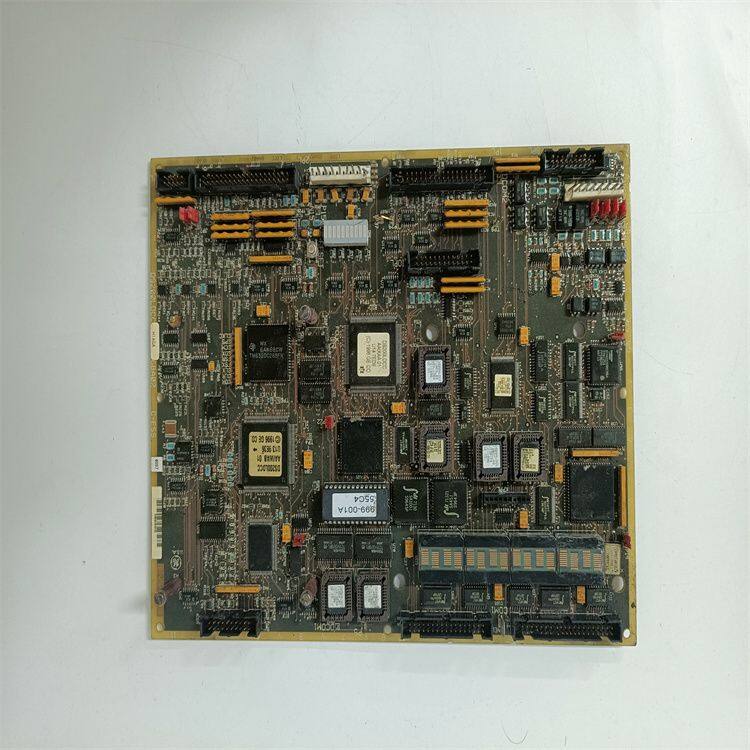

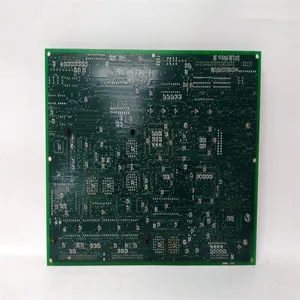

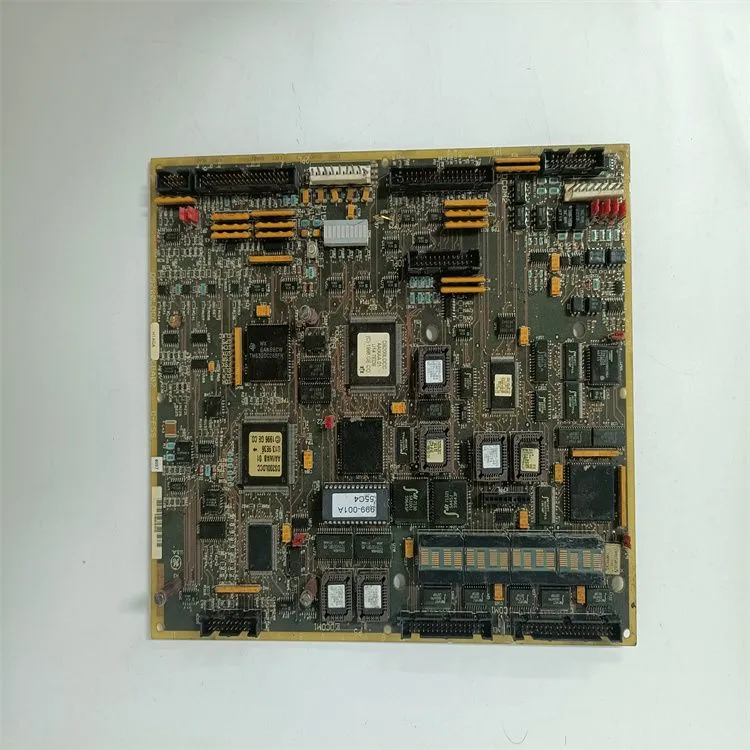

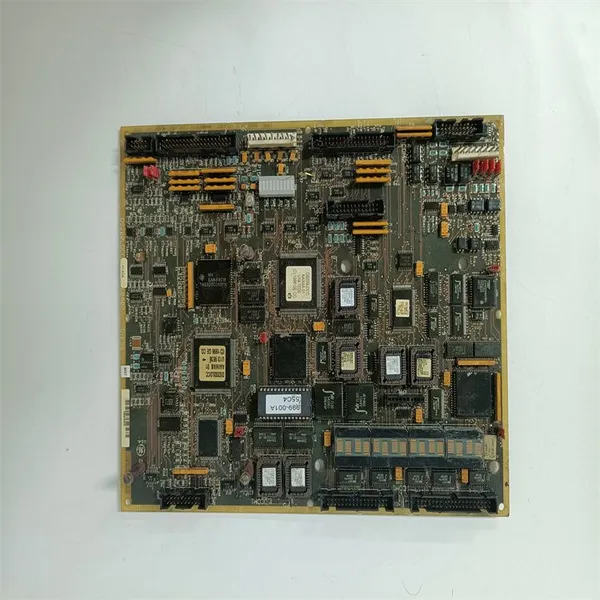

DS200LDCCH1AGA Network (LAN) Communications Board

• Hardware Composition

• Microprocessors: It houses four microprocessors, including a LAN control processor (LCP) that can accept five different bus types fed to the drive, a drive control processor (DCP) for processing analog and digital I/O conversions and controlling peripheral I/O devices such as encoders and timers, a motor control processor (MCP) for processing digital I/O sent to the drive, and a co - motor processor (CMP) that provides additional processing power when needed.

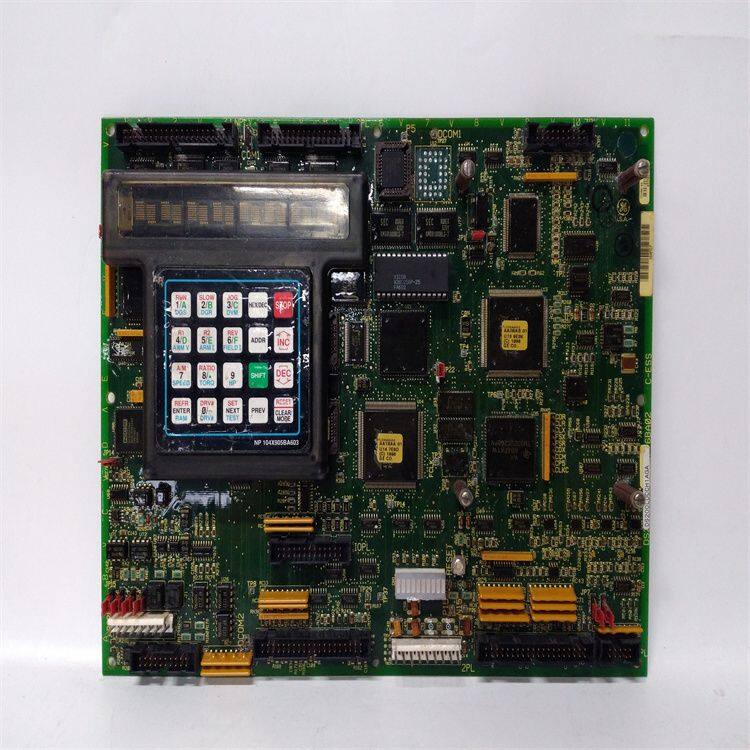

• Other Components: The board is equipped with an alphanumeric keyboard for system programming and diagnostic purposes. It also has six flash proms for storing configuration data, and a reset button for diagnosis and adaptation to possible functional fault conditions.




• Function and Application

• Drive and I/O Control: When installed in a drive, it provides a series of drive and I/O control functions for GE brand DIRECTO - MATIC 2000 drives and exciters. It can process various signals, control the operation of motors and other peripheral devices, and achieve accurate control of the drive system.

• LAN Communication: It serves as a communication interface for local area network connections, enabling the drive control system to exchange data with other devices or systems in the network, facilitating centralized monitoring and management. It plays a key role in industrial automation systems, power systems, process control industries, data centers, railway and transportation systems, building automation, and energy management systems.

•


• Physical Characteristics

• Weight: Approximately 0.76 kg.

• Dimensions: Compact, suitable for installation in control cabinets and other equipment with limited space.

• Electrical Characteristics: It has a working voltage of 24VDC and is designed to be energy - efficient for long - term stable operation.

• Environmental Adaptability

• Temperature Range: It can work in the temperature range of - 30℃ to 65℃, adapting to different industrial environments.

• Anti - interference Ability: It has certain anti - interference measures to ensure reliable operation in complex industrial electromagnetic environments.

Hardware Tips and Specifications As with any device available in General Electric's Mark V Series; this DS200LDCCH1AGA PCB's functionality is introduced through its internal assembly's inclusion of a specific series of hardware components and component specifications. The DS200LDCCH1AGA communication card houses four microprocessors onboard. A LAN control processor (LCP) is available to accept five different bus types fed to the drive. A drive control processor (DCP) is also available to process analog and digital I/O conversions. The DCP is also capable of controlling and converting peripheral I/O devices such as encoders and timers. A motor control processor (MCP) is provided to process digital I/O sent to the drive. Should calculations require extra processing power the DCP cannot provide, the co-motor processor (CMP) will provide the additional power needed to complete these functions. The board is completed with an alphanumeric keyboard used for system programming and diagnostic purposes. Six flash PROMS in the assembly of this DS200LDCCH1AGA Drive Control/LAN Communications Board are responsible for this DS200LDCCH1AGA device's configuration data storage. Each of these PROMS have been factory-programmed, although original DS200LDCCH1AGA instructional manual materials note that they can be reprogrammed in the field as needed. For diagnosis and adaptation to possible and common functional fault conditions, a singular RESET button has been included in this DS200LDCCH1AGA PCB's assembly as well. When shipped from AX Control the DS200LDCCH1AGA board will be wrapped in a protective, static-resistant plastic bag. Before removing the device from the shipping container, please review the installation parameters provided by the card’s manufacturer. Both the series manual and the board’s corresponding datasheet contain a complete wiring guide for this communications card. All members of the Mark V series were provided with technical support by General Electric. The DS200LDCCH1AGA model has field adjustable parameters; one of these is EEPROM U9 which will be programmed to download the drive configuration values needed to properly operate the LDCC unit. The EEPROM U9 firmware can be transferred directly to the LDCC unit by moving the U9 from another drive control board.

Frequently Asked Questions about DS200LDCCH1AGA What type of drives does DS200LDCCH1AGA provide to? DS200LDCCH1AGA provides primary drive and I/O control functions to General Electric's Directo-Matic 2000 drives and exciters. What are some of the test points and their definitions on the DS200LDCCH1AGA model? Some of the test points on this model are P5, DCOM1/DCOM2, and FCLK.  The P5 test point is used to help regulate the 5-volt power supply.  Test points DCOM1/DCOM2 will control the 0-volt common reference point used for all test signals.  The FCLK test point indicates that the unit is alive, and the 8 MHz output is coming from the oscillator output from the motor controller processor as needed.  For all of the other test points, refer to Table 1 on page five of the LDCC manual. Which manual should I use with DS200LDCCH1AGA? With DS200LDCCH1AGA, use Manual GEI-100216.  This manual for DS200LDCCH1AGA is the GE Motors and Industrial Systems Drive Control/LAN Communications Board Manual.  Although this is not a thorough installation, operation, and maintenance manual for DS200LDCCH1AGA, this manual will help you with understanding the DS200LDCCH1AGA.
