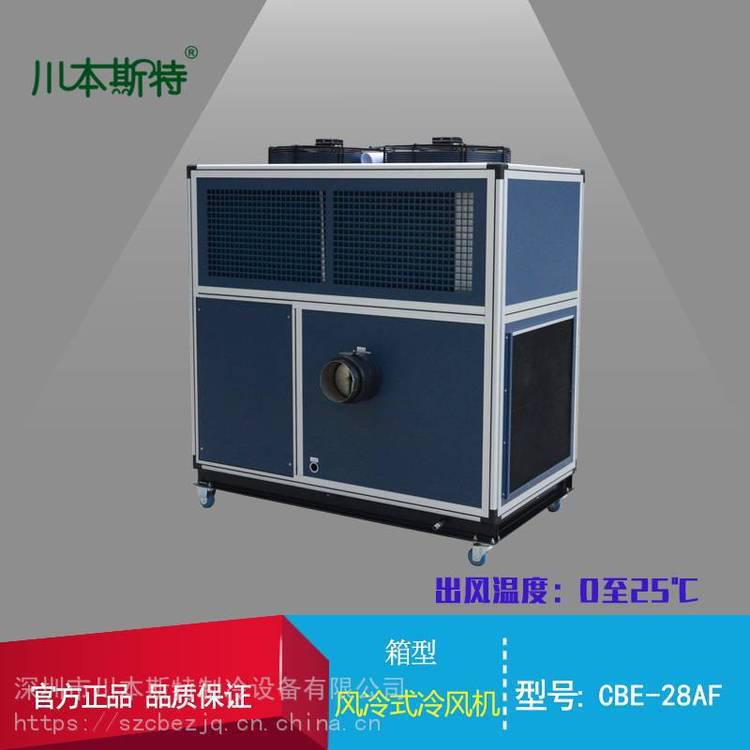

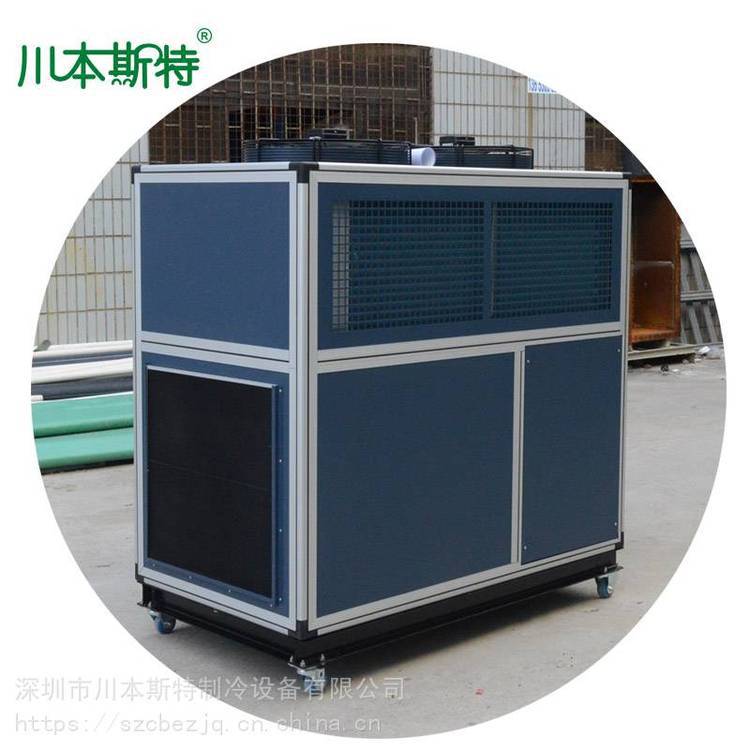

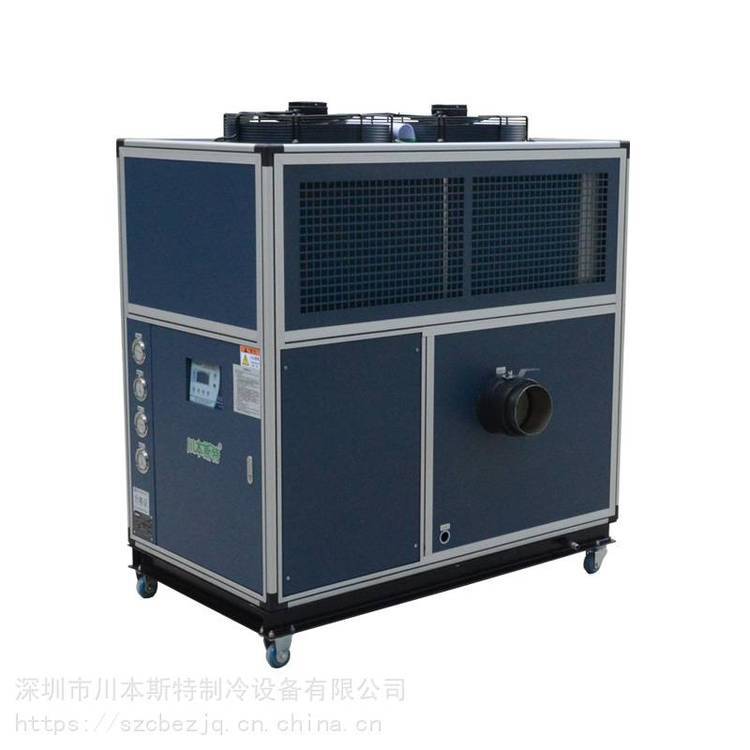

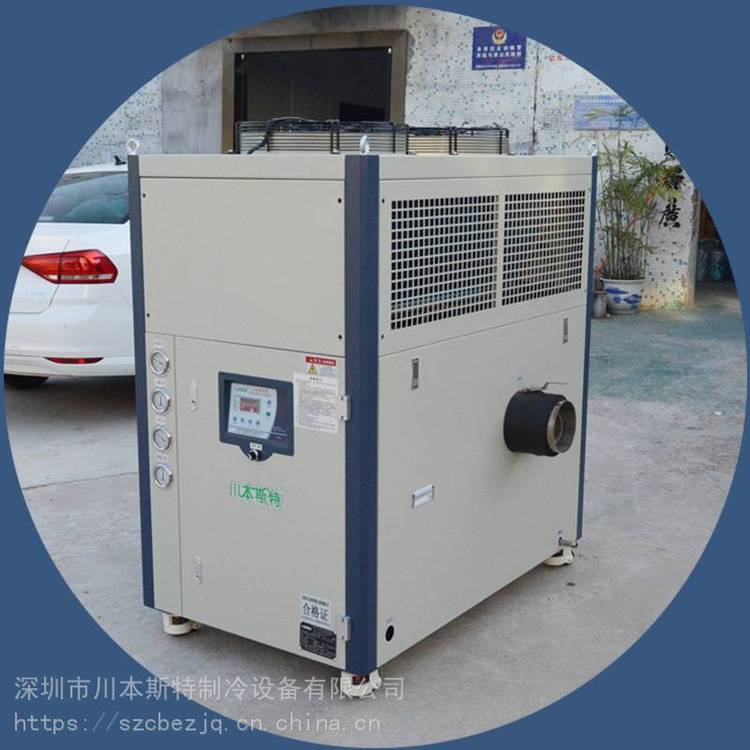

Variable-frequency Air Cooler for Melt-blown Fabric Cooling

Features and Functions of the Unit:

1. This unit features moisture resistance, low - temperature tolerance, low noise, stable and reliable operation, large air volume, and low forced - cooling temperature. It is widely used for rapid cooling of mechanical parts, chemical materials, finished products, food, medicinal materials, coating raw materials crushing, etc.

2. The system of this unit is optimized in design and has a high energy efficiency ratio.

3. With unique design, compared with similar products, it has advantages such as long air - supply distance, short defrosting time, and good refrigeration effect.

4. This unit is equipped with a micro - differential pressure controller optional component, which can intelligently control the defrosting frequency, achieving "defrost when there is frost, no defrost when there is no frost". Compared with the currently commonly used fixed - time and fixed - frequency defrosting method, it can reduce the temperature rise caused by defrosting and save defrosting energy consumption.

5. This unit adopts anti - oxidation gas - shielded welding technology, resulting in a high cleanliness level inside the system. The evaporator and copper tubes are arranged in a novel way to reduce the air - side resistance. The contact thermal resistance is small, and the heat transfer is efficient.

Selection Method of the Cooling Fan:

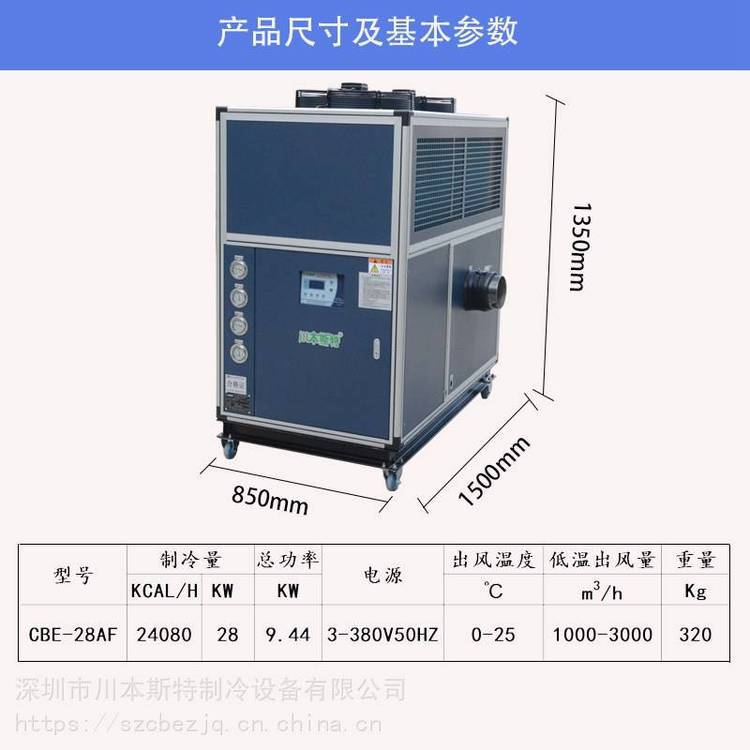

1. Different from other brand cooling fans sold in the industry, this unit is equipped with a refrigeration compressor. It is selected according to different air volumes, air pressures, and controlled temperatures. This unit is a low - temperature cold - air device. The temperature of the conventional machine is controlled at 0 - 20°C, with an accuracy of ±3 - 5°C. The ultra - low - temperature air conditioner can reach - 20°C.

2. When selecting this unit, please determine whether it is used for cooling components, finished products, raw materials, or a space.

3. When selecting, if the air volume cannot be provided, please determine the weight and quantity of the object to be cooled, the initial temperature and the final temperature, and the cooling time.

4. If you have any other questions, please call our company's engineering department, and they will directly select the appropriate model for you.

The marine cold (hot) air unit is a mobile product designed by Shenzhen Chuanbenster Refrigeration Equipment Co., Ltd. according to the current development needs of the shipbuilding industry and the working environment of the shipbuilding industry. This product is mainly used in places with harsh working environments and high temperatures, such as ship hull sections, sandblasting areas, and decks.

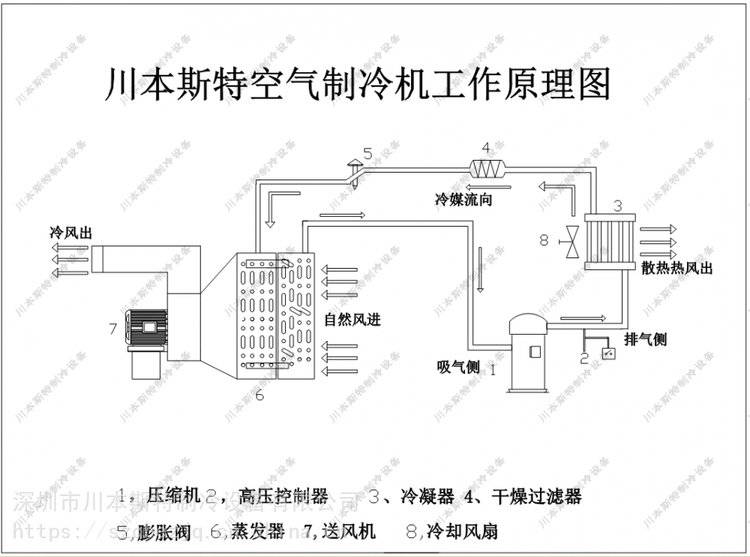

The unit is composed of a compressor, a condenser, an evaporator, a cooling fan, a supply fan, and a rough - efficiency filter. The supply fan is a medium - pressure and high - efficiency backward - inclined fan, with a large air volume and pressure.

The industrial cooling fans produced by Shenzhen Chuanbenster Refrigeration Equipment Co., Ltd. can not only keep the space temperature constant and low, making the welder's working area comfortable, but also keep the process at a constant temperature and the product within a specific temperature range. Such equipment is widely used in material cooling, bridges, shipyards and other large enclosed welding spaces.
