Help CenterYianfire Multipurpose High Rise Smoke Ventilation Nozzle
Related Products
-
Stationary Manual Fire Monitor YAPS20-40US$ 200 - 1000MOQ: 1 Set -
Stationery Manual Fire Monitor YAPS30-50US$ 200 - 1000MOQ: 1 Set
-
230LPM Handline Fire Hose Nozzle With 2.5" BIC CouplingUS$ 50 - 500MOQ: 10 Pieces
-
Constant Flow Marine Fire Nozzle Brass Branch PipeNegotiableMOQ: 10 Pieces
-
GPM or LPM Labeled Fire Nozzle Water Gun With Pistol Grip and 2.5\" Storz AdapterUS$ 50 - 500MOQ: 10 Pieces

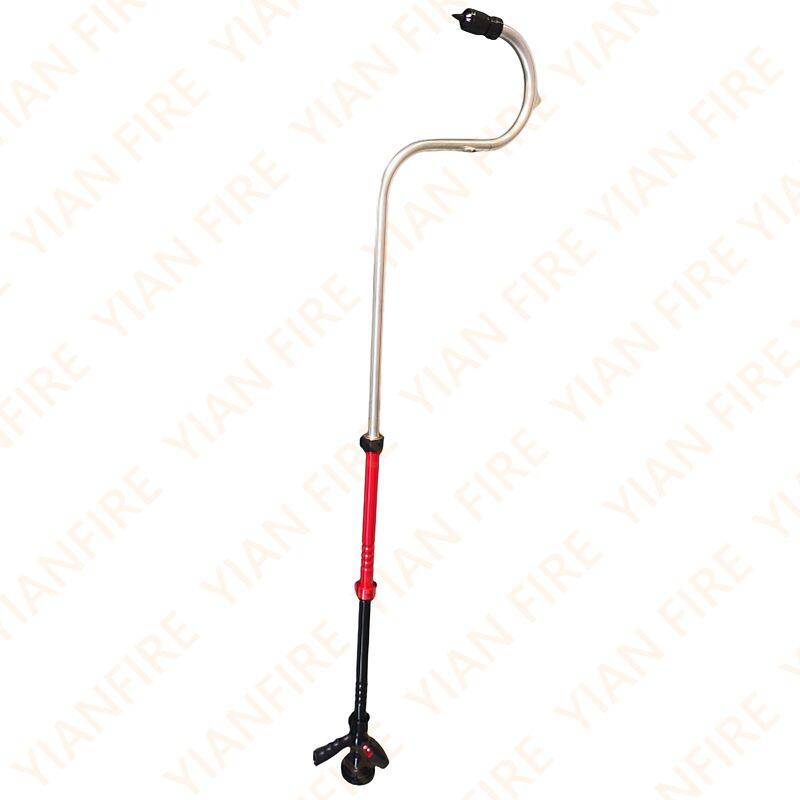

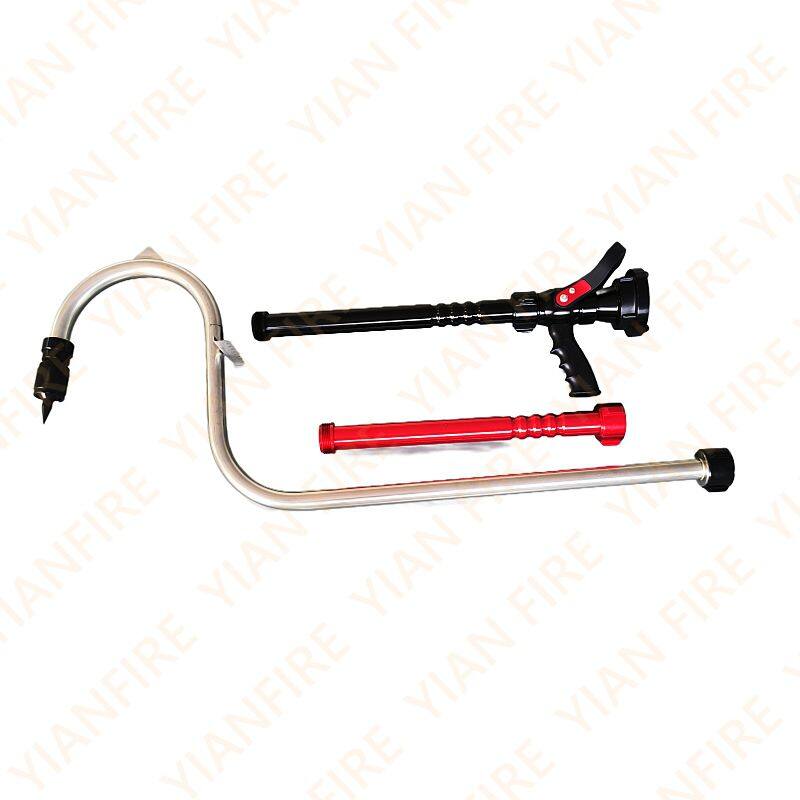

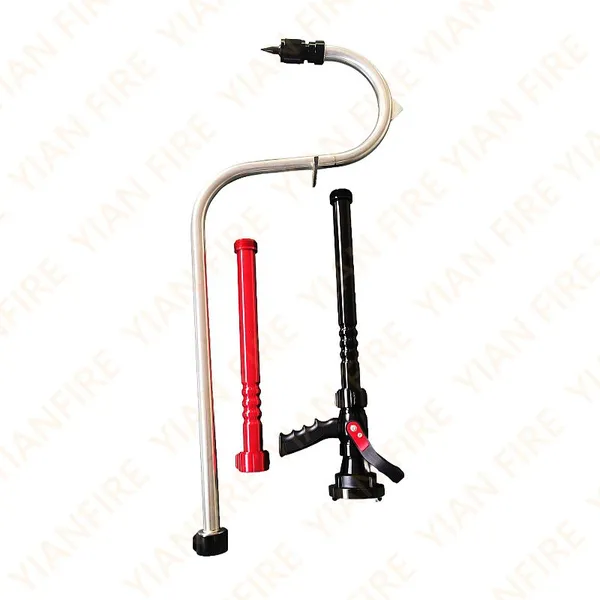

Yianfire Multipurpose High Rise Hydraulic Ventilation Nozzle likely refers to a specialized firefighting tool used for both suppressing fire and ventilating smoke. It is designed to rapidly and effectively clear dense smoke and hazardous gases from fire scenes, creating a safe environment for firefighters and trapped individuals. It plays a vital role in firefighting operations, particularly in warehouses, commercial buildings, large-scale structures, floors and basements, subways, underground malls, and tunnels. This equipment enables swift response to smoke dispersion, reduces fire damage, and secures critical time for rescue efforts.
Yianfire 2.5 Machino hydroshiled fire nozzle technical data
Model |
QDH6.0/3.5IIPY |
Opening/shutoff |
by operating handle（ball valve switch） |
Material |
Body：Aluminium，tube：304 s.s.steel |
Surface treatment |
hard anodisation |
Working pressure |
3.5-16bar |
Connection type |
Storz,John Morris,Gost,Machino, NH,etc |
flow |
210LPM@6BAR |
Shooting distance |
22M |
Fog angle |
0-180° |
Length |
2.16M |
operating torque |
7N.m |
Maximum exhaust air volume |
≤3400m³/h |
Inlet |
1.5”-2”-2.5” (40-50-65mm) |
Weight |
6kg |
Send Inquiry to This Supplier
