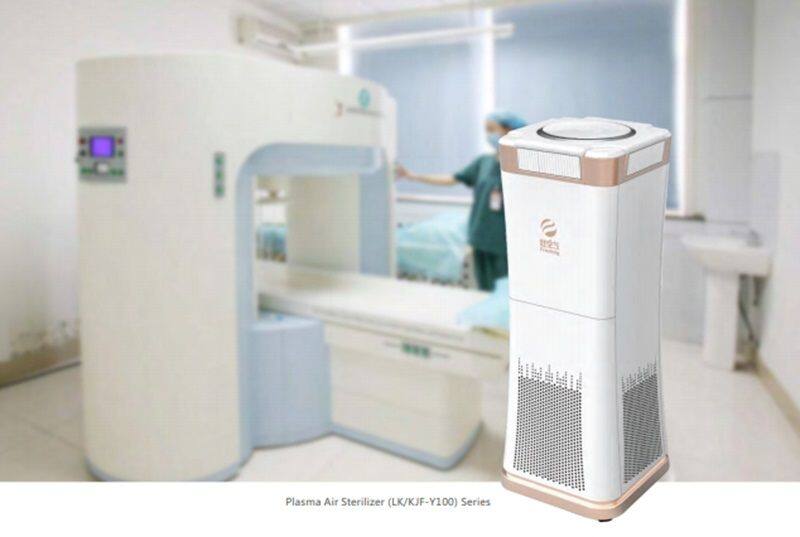

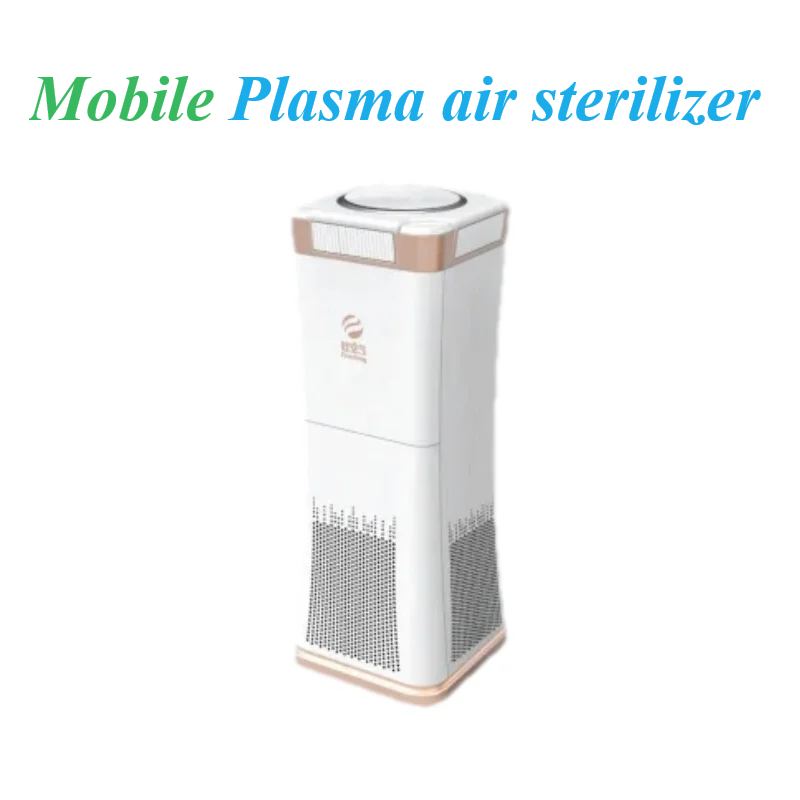

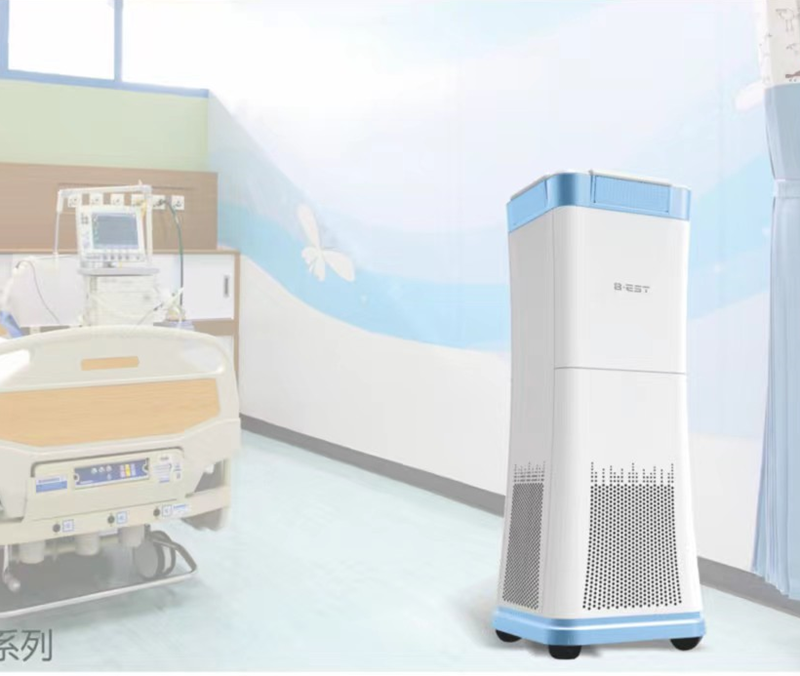

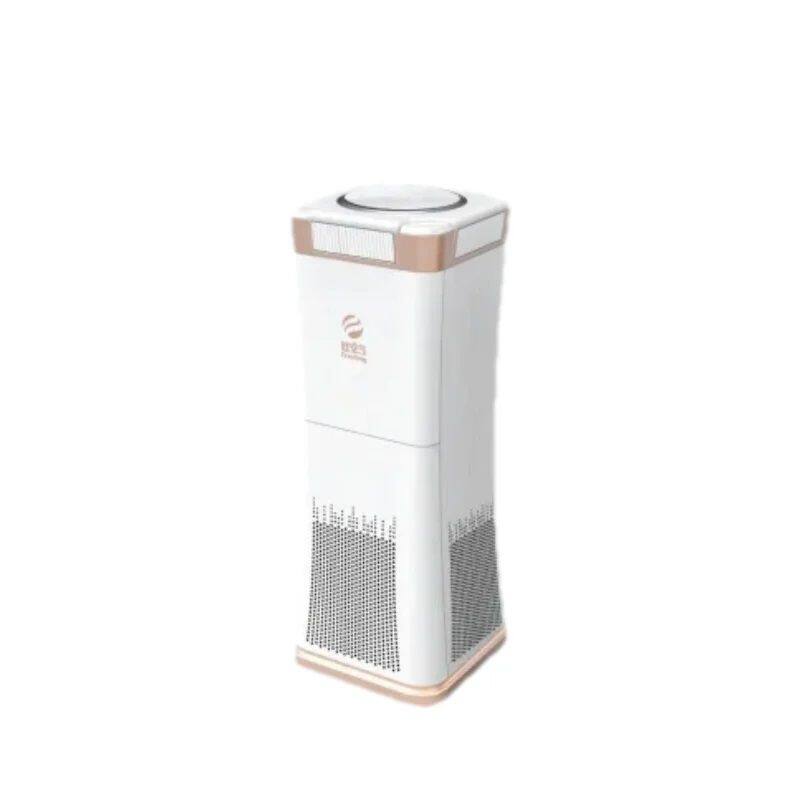

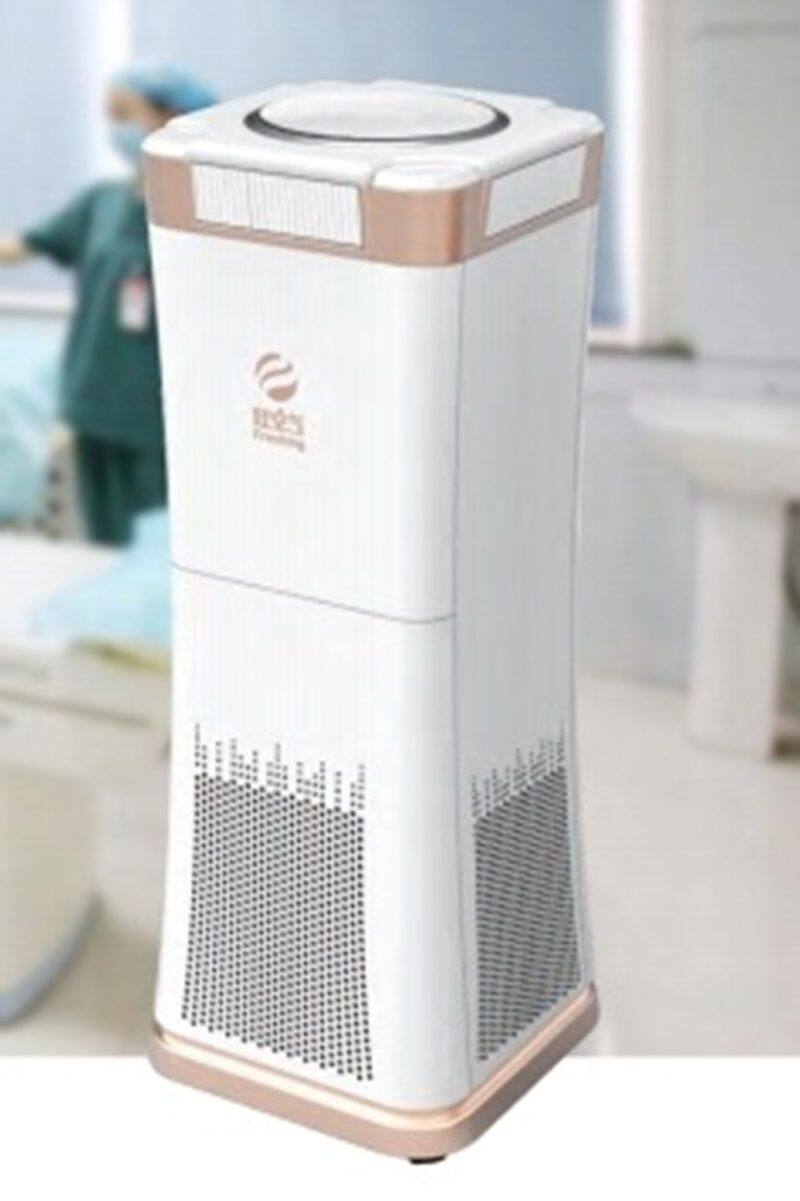

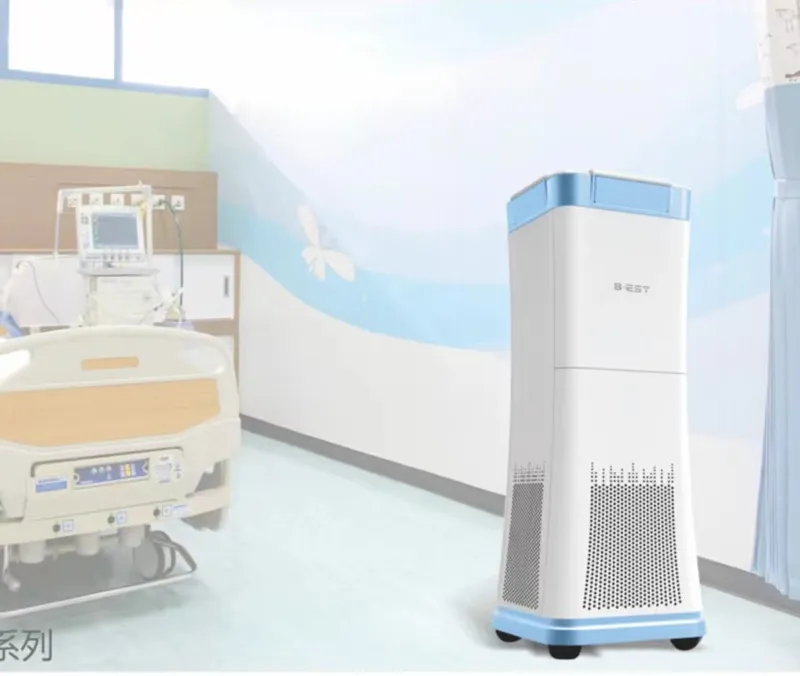

Mobile plasma air sterilizer

1 set / box

Mobile plasma air sterilizer

Applicable scenarios:

Hospitals: operating rooms, infectious disease wards, ICUs, NICUs, treatment rooms, adjustment rooms, sanatoriums, inpatient wards, laboratory departments, supply rooms, laboratories, pathology departments, diagnostic centers, neonatal departments, etc.

Public places: office buildings, commercial centers, government office buildings, banks, clubs, cafes, hotels, airports, stations, schools, libraries, etc.

Family residence: living room, bedroom, study, etc.

Product Overview:

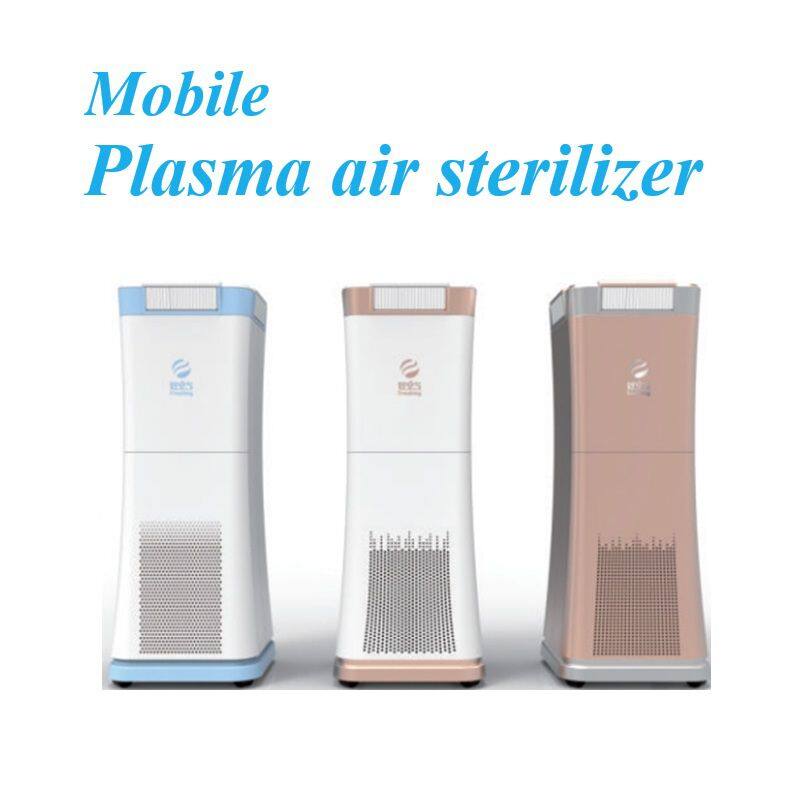

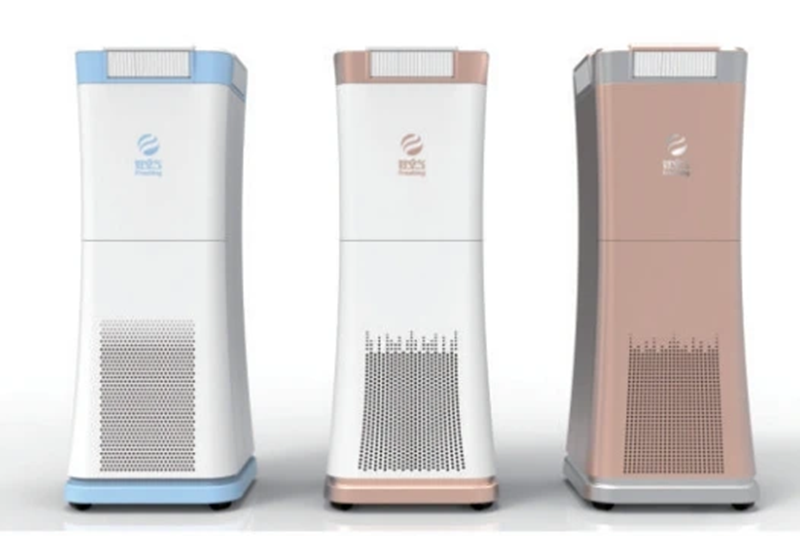

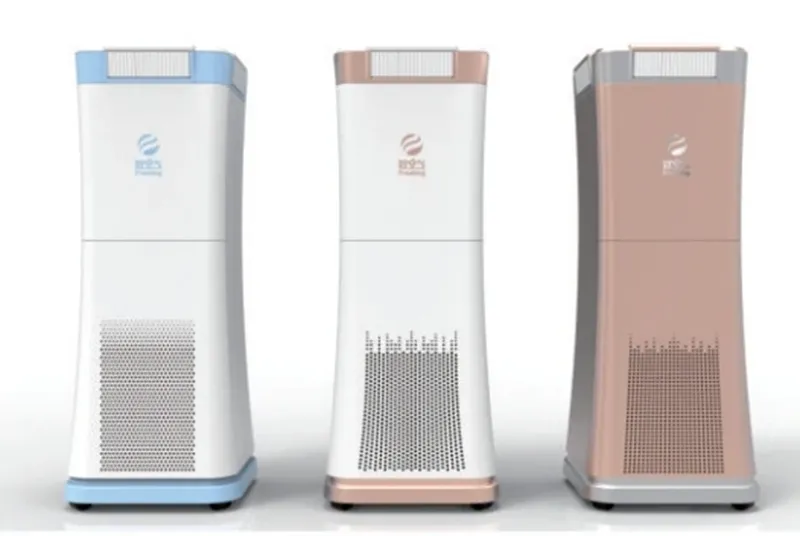

This product has a stylish and atmospheric appearance, and can be paired with multiple colors according to the needs of the usage environment; The whole machine is designed based on air circulation dynamics, truly integrating art and technology - adopting a bottom return air and an upper four sided air outlet method, it can form a 360 degree wide angle+Liszt curve circulation airflow indoors, comprehensively purifying and greatly improving indoor purification and disinfection efficiency. The air vent automatically closes when in standby mode, avoiding secondary pollution caused by natural settling and dust collection during non operating hours. Multiple operating modes are available.

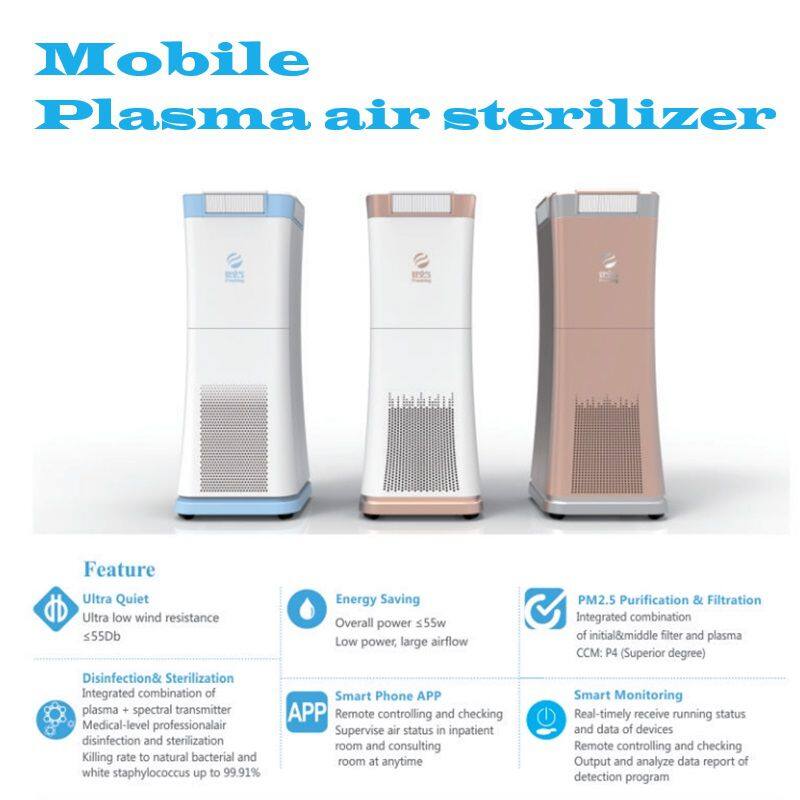

Product features: Plasma integrated combination, specialized in sterilization. The large amount of reactive oxygen species, high-energy free radicals, and other components contained in plasma are prone to undergo oxidation reactions with proteins and nucleic acid substances in bacteria, bacteria, and viruses, causing denaturation and death of various microorganisms, resulting in changes in PM2.5 and ultimately settling. Formaldehyde and harmful organic molecules decompose into carbon dioxide and water under the action of high-energy electrons and strong oxidative free radicals.

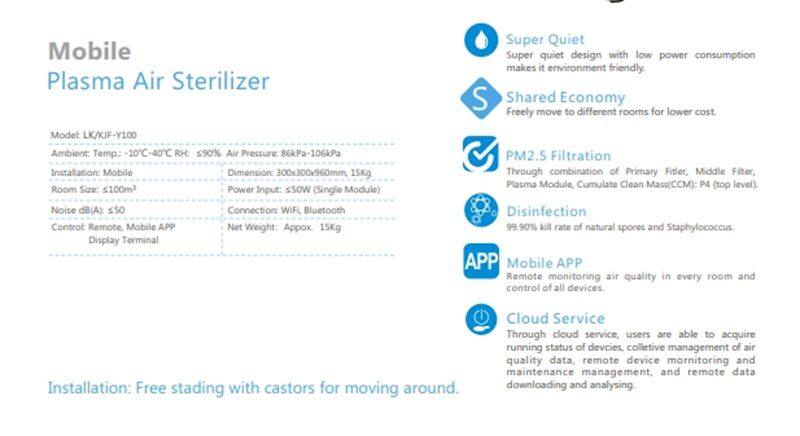

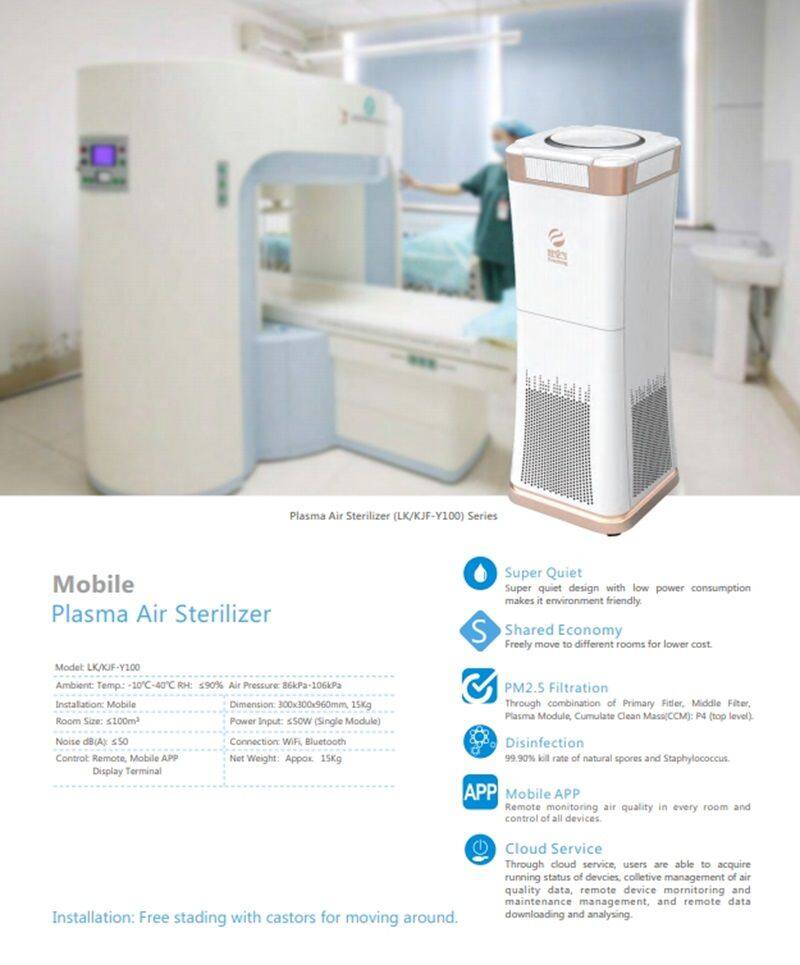

Text description:

1. Application location: Class II, III, and IV environments in medical facilities;

2. Disinfection method: Plasma;

3. Installation method: mobile;

4. Scope of application: ≤ 100 m3

5. Noise dB (A): ≤ 56dB;

6. Circulating air volume: ≥ 880m ³/ H

7. Power requirements: Working power supply: AC220V, 50/60Hz;

8. Human machine coexistence: Dynamic disinfection machine, used with human machine coexistence, does not generate secondary pollution;

9. Ozone residue: ≤ 0.004mg/m3;

10. Disinfection effect: The equipment can work continuously for 1 hour, and the natural bacteria in the air of a 100m3 room can have a sterilization rate of ≥ 90%, an actual average value of ≥ 98%, and a duration of 30 minutes/10m ³ The killing rate of Staphylococcus aureus in the air is ≥ 99.90%, and the removal rate of H1N1/influenza virus FM4.02 in the aerosol chamber is>99.95%;

11. Disinfection effect: The clearance rate of coronavirus HCoV-229E is ≥ 99.99%, and the killing rate of Klebsiella pneumoniae is>99.90%;

12. Plasma generator: Clean air volume (particulate matter)>760m ³/ h. Purification energy efficiency (particulate matter)>5m ³/ (W) ▪ h) Achieve high efficiency level and particle removal rate>99.98%;

13. Plasma generator: Clean air volume (formaldehyde)>400m ³/ h. Purification energy efficiency (formaldehyde)>1.2m ³/ (W) ▪ h) Achieve high efficiency level, cumulative purification rate reaches F4 level, and the removal rate of formaldehyde, ammonia, benzene, xylene, and TVOC is ≥ 97%;

After working for 60 minutes in a 100 m3 experimental chamber, the cleanliness level of suspended solids in the air reached 100000 levels;

15. The plasma generator is made of flame-retardant material, and the flame retardant level is required to reach V-0;

16. Plasma density distribution: 9.16X1017 m- ³～ 2.79X1018 m- ³；

17. The design life of core components is greater than or equal to 40000 hours;
