Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > TS2-5DS Forest Fire Pump 23bar 300L/min
TS2-5DS Forest Fire Pump 23bar 300L/min
US$ 800 - 1600
MOQ: 3 Sets
Key Specifications
Get Latest Price
Theory:
Centrifugal Pump
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
30 days
Related Products
-
TS2-5DSfire PumpUS$ 800MOQ: 1 Unit -
9.5kg Portable Single-stage Hand-cranked High-pressure Fire PumpUS$ 580 - 750MOQ: 3 Sets
-
85cc Horizontal Two-stroke EngineUS$ 600MOQ: 1 Unit
-
Fire Nozzle QLD6.0/8 III B-Selectable Flow RateUS$ 89 - 115MOQ: 100 Pieces
-
PV PV62 PV62R Series PARKER PV62R1EF02 Piston Pump Hydraulic Pump Oil PumpNegotiableMOQ: 1 Piece
Theory
Centrifugal Pump
Hand start and energy storage structure ensure that the water pump can be started at any time under extremely harsh conditions
Push-button start is the most convenient start-stop mode under normal conditions.
Magnetic induction start is suitable for ensuring normal start when there is a large amount of mud attached to the fuselage.
| Project |
Configuration details | |
| 01. | Start mode: |
induction magnetic control start, one button electric start, manual start; |
| 02. | Protection system: |
It should have a triple protection system for overspeed, overheating, and dehydration; |
| 03. | Igniter Integration: |
The digital DC igniter should be integrated with the overcurrent protector; |
| 04. | Cooling method: |
closed circuit circulation, forced water cooling; |
| 05. | Water pump structure: |
two-stage aluminum alloy impeller centrifugal pump; |
| 06. | Maximum range: |
33 m; |
| 07. | Maximum flow rate: |
5L/s; |
| 08. | Maximum head: |
≥ 220 meters, maximum pressure ≥ 2.2 Mpa; |
| 09. | Maximum suction depth: |
≥ 6m, single unit flat water transportation distance: ≥ 3000 meters; |
| 10. | Net weight of the whole machine: | ≤ 12 Kg; |
| 11. | Power generation voltage: |
12V-15V, should have charging function; |
| 12. | Display system: |
display of working pressure, engine speed, and accumulated working time of the engine; |
| 13. | Working performance: |
able to operate continuously for no less than 48 hours; |
| 14. | Operation test: |
The pump should be able to operate continuously for no less than 1 hour under rated conditions with a horizontal and vertical inclination of 45 °, and should be able to work normally; |
| 15. | Fuel tank and external fuel tank: | with a volume of ≥ 9L and an independent refueling port, it can achieve non-stop refueling. |
| 16. | External dimensions: | 430mmx300mmx170mm |
| 17. | Appearance requirements: |
Adopting a comprehensive reinforced protection framework to effectively protect the built-in engine and important components from damage, anti-corrosion, and scratch resistance. All castings have no obvious scars, bubbles, or sand holes on their surfaces. It should have a shock-absorbing support structure. |

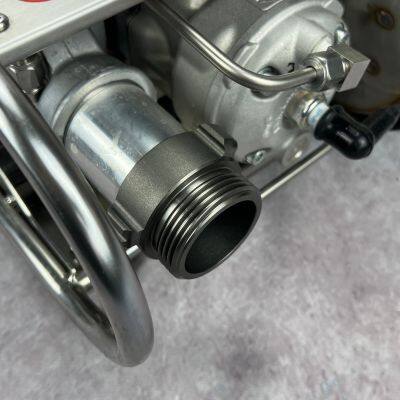

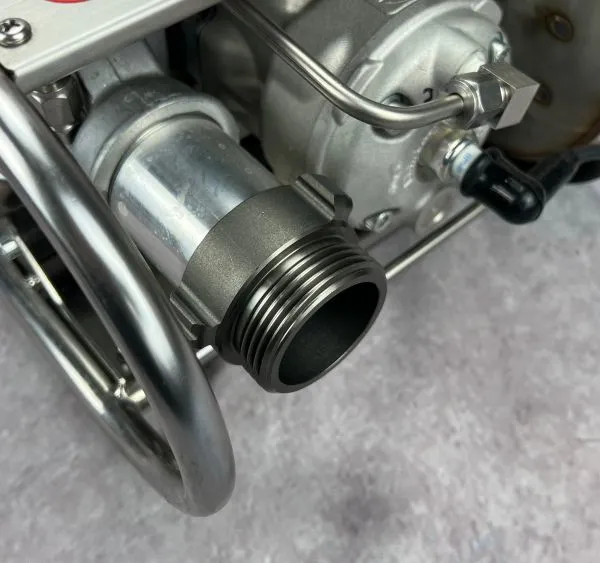

| 18. | Water pump inlet size: |
equipped with φ 38mm and φ 50mm interface; |
| 19. | The water pump can be connected in series: |
The water pump can achieve unlimited series and parallel connection; |
