Skl14/ W14 Rail Clip, Rail Insulator, Rail Fastening System
What is Skl14/ W14 Rail Fastening System?

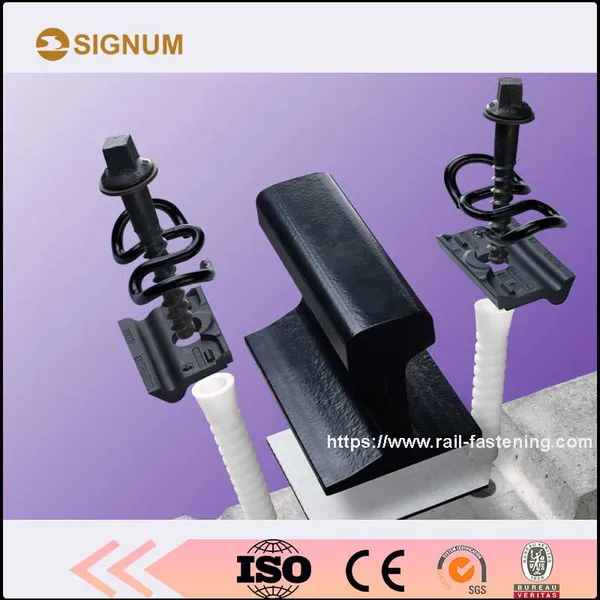

The SKL14 rail fastening system, also known as the W14 system, is a widely used system for fixing rails to sleepers, particularly in high-speed and conventional railway applications, designed for ballasted tracks and known for its elasticity and vibration damping.
The system's design, including the W-shaped SKL14 tension clamp and rail pad, allows for rail deflection and increases track elasticity, which helps absorb vibrations and reduces noise.
It's suitable for both high-speed tracks (up to 320 km/h) and conventional rail applications.
The SKL14 rail fastening system is designed to withstand the dynamic loads of moving trains, contributing to a longer track lifespan and reduced maintenance costs.
The SKL14 tension clamp ensures a secure and reliable connection between the rail and sleeper, preventing rail movement and ensuring proper track alignment.
The design of the system, including the angled guide plates and the W-shape of the SKL14 clamp, helps prevent rail tilting.

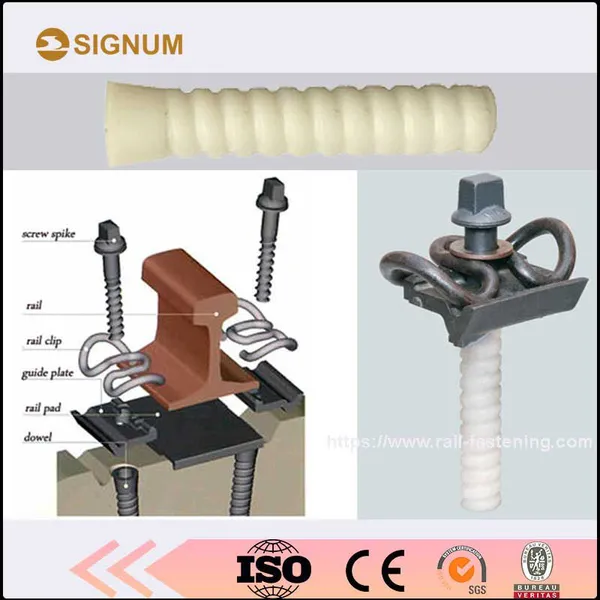

Components:
SKL14 Tension Clamp: The main component, a W-shaped clamp that provides the clamping force and elasticity.
Rail Pad: A resilient pad placed between the rail and the sleeper, further enhancing elasticity and vibration damping.
Guide Plates: Angled plates that help maintain rail gauge and distribute forces.
Screw Spikes/Dowel: Used to secure the components to the sleeper.
Washer: Used in conjunction with the screw spike/dowel.
Plastic Dowel: Used to prevent the screw from loosening.
Applications:
High-speed rail tracks, Conventional rail tracks, and Ballasted tracks.
Part name |
Type |
Material |
Finish |
Remark |
SKL14 tension clip |
Dia. 13mm |
60Si2CrA, 38Si7 |
Plain oiled, color painting, or the other required ones. |
Hardness: 42-47HRC |
Ss35 screw spike |
M24×150mm |
Grade 4.6: Q235 |
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized |
Standard: ISO898-1, UIC864-1 and NF F500-50 |
Plain washer |
Uls7 |
Q235 |
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized |
Standard: EN10025, EN10139 |
Plastic dowel |
For different sizes of screw spike |
HDPE, Reinforced Nylon 66 (PA66) |
Black, blue, yellow, green or other color |
For insert into concrete sleeper |
Guide plate |
UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered |
Reinforced Nylon 66 (PA66) |
Black, blue, yellow, green or other color |
Different designs are available. |
Rail pad |
UIC54,UIC60, and size as ordered |
EVA, or rubber |
Black, blue, yellow, green or other color |
Different designs are available. |
Kunshan Signum Machinery Technology Co., Ltd. specialize in manufacturing rail rail clips, rail angle plates, rail dowels, rail pads for the SKL14 rail fastening system.
