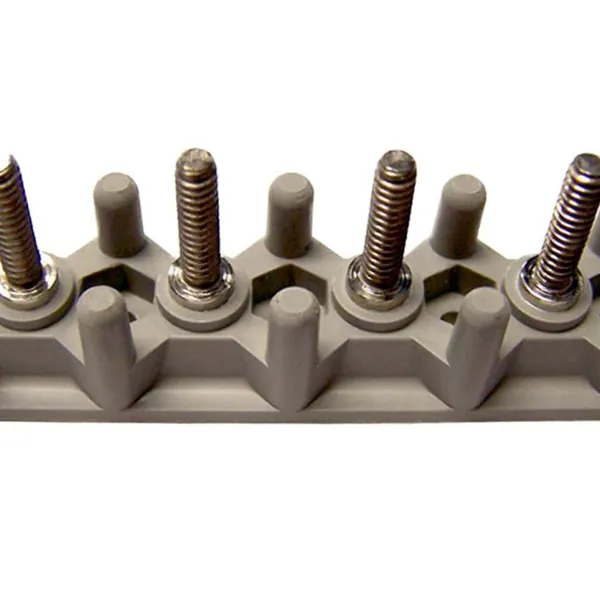

MS27212-1-1 Military Standard Terminal Board
Description:TERMINAL BOARD
Technical Characteristics
Material：plastic diallyl phthalate board
Base Thickness：0.275 inches
Board Construction：solid construction
Special Features：20 max non-feed-through terminals,cut to desiredsize at point of installation
Distance From Bottom Edge Of Terminal Board To Center Of Mounting Hole：0.344 inches
Board Overall Height：0.953 inches
Distance From Left Edge Of Terminal Board To Center Of First Mounting Facility：0.218 inches
Board Height Excluding Terminals：0.580 inches
Dielectric Withstanding Voltage In Volts：2500.0
Nonfeedthru Terminal Type：597 single
Material：steel corrosion resisting terminals
Board Overall Length：12.316 inches
Terminal Pattern Arrangement：single row
Board Overall Width：0.688 inches
Center To Center Distance Between Terminals：0.594 inches
Mounting Facility Type And Quantity：21 unthreaded hole
Body Style：barrier standoff
Mounting Hole Diameter：0.115 inches
Center To Center Distance Between Mounting Facilities Parallel To Length：0.594 inches
MS27212-1-1
MS27212-6-1
MS27212-2-1
MS27212-1-2
MS27212-6-2
MS27212-2-2
MS27212-1-3
MS27212-6-3
MS27212-2-3
MS27212-1-4
MS27212-6-4
MS27212-2-4
MS27212-1-5
MS27212-6-5
MS27212-2-5
MS27212-1-6
MS27212-6-6
MS27212-2-6
MS27212-1-7
MS27212-6-7
MS27212-2-7
MS27212-1-8
MS27212-6-8
MS27212-2-8
MS27212-1-9
MS27212-6-9
MS27212-2-9
MS27212-1-10
MS27212-6-10
MS27212-2-10
MS27212-1-11
MS27212-6-11
MS27212-2-11
MS27212-1-12
MS27212-6-12
MS27212-2-12
MS27212-1-13
MS27212-6-13
MS27212-2-13
MS27212-1-14
MS27212-6-14
MS27212-2-14
MS27212-1-15
MS27212-6-15
MS27212-2-15
MS27212-1-16
MS27212-6-16
MS27212-2-16
MS27212-1-17
MS27212-1-18
MS27212-1-19
MS27212-1-20
MS27212-3-1
MS27212-4-1
MS27212-5-1
MS27212-3-2
MS27212-4-2
MS27212-5-2
MS27212-3-3
MS27212-4-3
MS27212-5-3
MS27212-3-4
MS27212-4-4
MS27212-5-4
MS27212-3-5
MS27212-4-5
MS27212-5-5
MS27212-3-6
MS27212-4-6
MS27212-5-6
MS27212-3-7
MS27212-4-7
MS27212-5-7
MS27212-3-8
MS27212-4-8
MS27212-5-8
