Introduction of Explosion Proof Smartphone For Hazardous Areas
XUXIN KTW333(5G) is a Smartphone With Explosion Protection, which has passed coal safety, chemical, and dust explosion-proof certifications to ensure safe use in flammable and explosive environments. This phone has an IP68 protection level, which is dustproof, waterproof, and shock resistant, and can maintain normal operation in harsh environments such as humidity and dust.
Feature of Explosion Proof Smartphone For Hazardous Areas
1) Equipped with MTK6877 high-performance processor, 8GB of RAM and 128GB of storage space, providing a smooth operating experience.
2) Adopting a 6.3-inch LCD high-definition screen with a resolution of FHD+1080 * 2340, the display effect is delicate and smooth.
3) Camera: Rear 48 megapixel+5 megapixel (macro) dual camera, front 8 megapixel camera, meeting various shooting needs.
4) Equipped with a 5300mAh large capacity explosion-proof battery, it supports long-term calls and use.
5) Integrated GPS+Beidou+GLONASS and other positioning technologies provide more accurate location information, supporting real-time tracking and viewing of terminal location information.

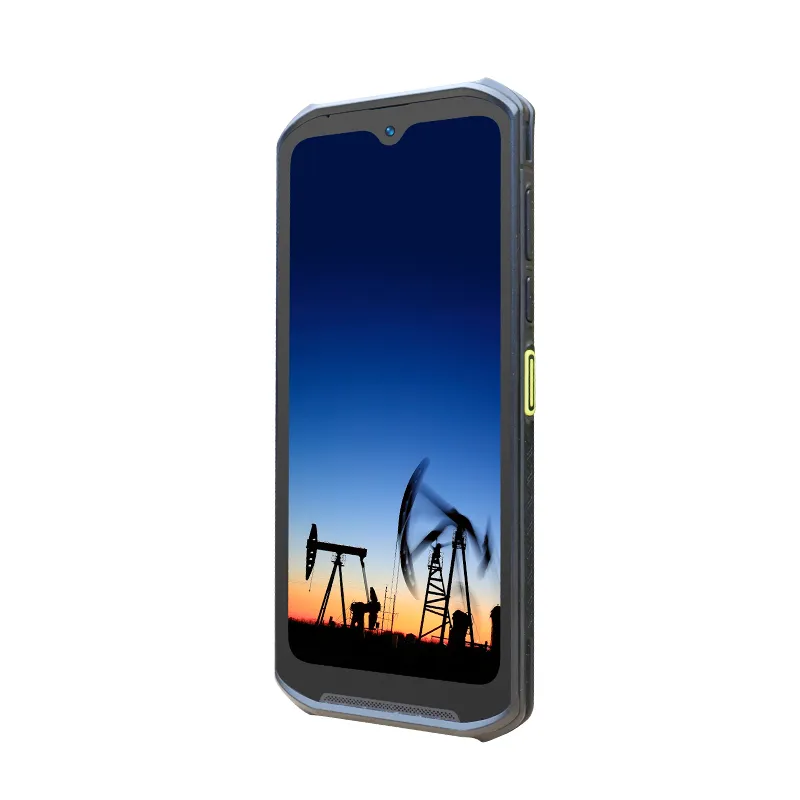

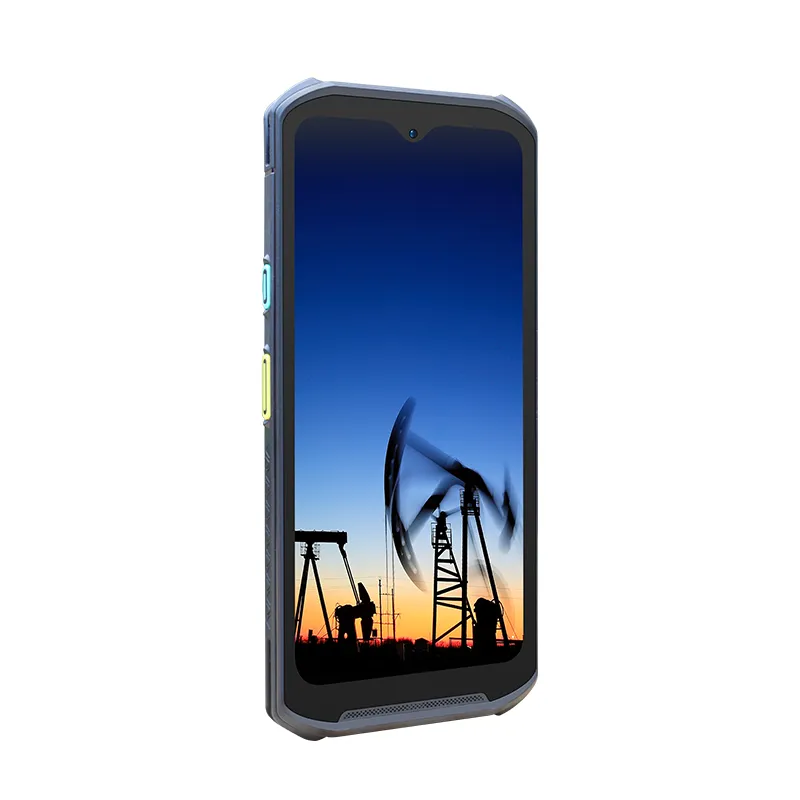

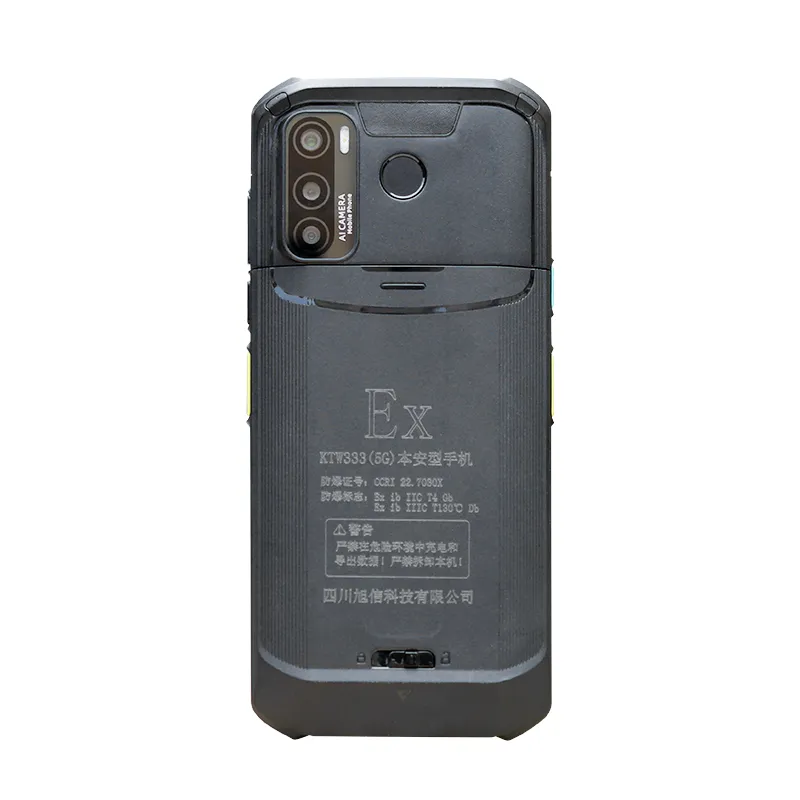

Detail photos of Explosion Proof Smartphone For Hazardous Areas
Product parameters of Explosion Proof Smartphone For Hazardous Areas
Explosion proof mark |
Ex ib IIC T4 Gb； Ex ib IIIC T130°C Db； Ex ib I Mb/KA |
|||
Network frequency band |
GSM：2/3/5/8 WCDMA：1/2/5/8 TDS：34/39 (compatible） TDD：34/38/39/40/41 FDD：1/2/3/5/7/8/20/26/28AB CDMA：BC0 5G:N1/N3/N8/N38/N41/N77/N78/N79/N28AB |
|||
Processor |
MTK 6877 |
|||
Operating system |
Android 11 |
|||
Display |
6.3 LCD, resolution FHD+1080 * 2340 |
|||
Touch Screen |
G+FF, Rainbow CG21 glass cover plate |
|||
|
Camera
|
Front camera |
8 million pixels |
||
Rear camera |
48 million pixels+5 million pixels (macro) |
|||
Voice |
Speaker |
Front dual speakers, 2 * 1W |
||
Microphone |
Digital MIC, intelligent noise reduction |
|||
Size |
169.00 mm×78.40 mm×17.06mm |
|||
Weight |
215g |
|||
SIM card |
Choose two out of three, Nano+Nano/Nano+TF |
|||
Bluetooth |
BT 5.1 |
|||
Motor |
support |
|||
Headset |
3.5mm independent headphone jack |
|||
GPS |
support |
|||
Beidou |
support |
|||
GLONASS |
support |
|||
Interface |
External interface |
TYPE-C2.0，TYPE-C 3.0(optional) |
||
Other interfaces |
Seat charging interface |
|||
Flash lamp |
support |
|||
NFC |
support |
|||
OTG |
support |
|||
Fingerprint identification |
support, rear fingerprint |
|||
Charging indicator light |
support |
|||
Charger |
support (optional) |
|||
Scanning head |
support (optional) |
|||
WLAN |
WLAN protocol |
support WIFI6, a.b.g.n.ac, ax |
||
WLAN frequency |
2.4GHz and 5GHz |
|||
WLAN hotspot |
support |
|||
key |
Side key (Physical buttons) |
power button |
||
volume+/- key |
||||
intercom button |
||||
left custom key |
||||
right custom key |
||||
Touch button |
menu key |
|||
desktop keys |
||||
return key |
||||
Accelerometer |
support |
|||
Geomagnetic rotation vector Sensor |
support |
|||
Gyroscope sensor |
support |
|||
Optical distance sensing sensor |
support |
|||
Internal storage |
8GB+128GB |
|||
External storage |
maximum support for 256GB TF card |
|||
Battery |
5300mAh intrinsic safety lithium battery |
|||
Temperature |
-20℃～+50℃ |
|||
Relative humidity |
≤98％(25℃) |
|||
Atmospheric pressure |
80 kPa～106kPa |
|||
Storage temperature |
-40℃～+60℃ |
|||
Applicable places |
Can be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and can also be used in combustible dust environments. |
|||
Protection level |
IP68（1.1m，40min） |
|||
Attachment: Scanning Head Parameters |
||||
Image sensor |
1280×800CMOS |
|||
Lighting |
White LED |
|||
Focusing |
Laser 650nm |
|||
Symbologies |
2D |
PDF417，Micro PDF417，QR Code，Micro QR ，DataMatrix， AZTEC，Maxicode，Composite，etc. |
||
1D |
EAN13，EAN8，UPCA，UPCE，Code 128，Code 39，Codabar， UCC/EAN128，RSS，ITF，ITF14，ITF6，ISSN，ISBN，Standard 25，Matrix 25，Industrial 25，Plessey，MSI Plessey，Code 11，Code 93，etc. |
|||
Reading accuracy |
≥3mil |
|||
Typical Reading Depth of Field |
EAN-13 |
70-600mm (13mil) |
||
PDF417 |
110-230mm (6.7mil) |
|||
Code39 |
120-280mm (5mil) |
|||
Data Matrix |
110-260mm (10mil) |
|||
QR Code |
55-400mm (15mil) |
|||
Symbol contrast |
≥25% |
|||
Barcode sensitivity |
Tilt ± 50 °, deflect ± 50 °, rotate 360 ° |
|||
Field of view angle |
Horizontal 42 °, vertical 28 ° |
|||
Communication interface |
IIC,MIPI |
|||
Appearance dimensions (mm) |
23.8 (D) × 16.5 (W) × 7.0 (H) (maximum value) |
|||
Weight |
2.4g |
|||
Working voltage |
VIMG:3.3VDC±5%，VLED: 3.3VDC±5% |
|||
Rated power consumption |
370mW (typical value) |
|||
Electric current@3.3VDC |
Work |
112mA (typical value), 295mA (maximum value) |
||
Standby mode |
5.5mA |
|||
Working temperature |
-20℃~+55℃ |
|||
Storage temperature |
-40℃~+70℃ |
|||
Working humidity |
5%~95% (no condensation) |
|||
Environmental lighting |
0~100,000LUX |
|||
FAQ
Q1. Is a Smartphone With Explosion Protection waterproof？
A1: The protection level of KTW333 (5G) has reached IP68, and "6" represents the dustproof level, which completely prevents foreign objects and dust from entering; 8 "represents the waterproof level and can be immersed in water for a long time under certain pressure, usually meaning it can be soaked in water up to 1.1 meters deep for up to 40 minutes.
Q2. What environments are Smartphone With Explosion Protection for？
A2: KTW333 (5G) explosion-proof mobile phone is suitable for industries with flammable and explosive hazards such as petrochemicals, coal mines, safety inspections, emergency rescue, and pharmaceutical factories, providing safe and reliable communication support for workers.
Q3. Why choose you?
A3: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q4. Can you put my brand name(LOGO)on the products?
A4: Yes,We can. Laser print, Silk print for your choose, MOQ 1000pcs each model
Q5. Can you printed our logo on the product or do the customized package box for us?
A5: Sure, our factory produces OEM/ODM .
Q6. How can you slove the problem if we receive the defective goods？
A6: Send us the pictures or video first time, we will send free replacement spare parts for you.
