Explosion-Proof Phone For Hazardous Areas

Explosion-Proof Phone For Hazardous Areas thumbnail-1
Explosion-Proof Phone For Hazardous Areas thumbnail-2
Explosion-Proof Phone For Hazardous Areas thumbnail-3
Explosion-Proof Phone For Hazardous Areas thumbnail-4
Explosion-Proof Phone For Hazardous Areas photo-1
Explosion-Proof Phone For Hazardous Areas photo-2
Explosion-Proof Phone For Hazardous Areas photo-3
Explosion-Proof Phone For Hazardous Areas photo-4
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
XUXIN
Place of Origin:
China
Model Number:
KTW399 (5G)
Contact Supplier Request Quote Chat Now
Sichuan Xuxin Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XUXIN
Place of Origin China
Model Number KTW399 (5G)

Introduction of Explosion-Proof Phone For Hazardous Areas

XUXIN KTW399 (5G) is an explosion-proof mobile phone suitable for hazardous areas, widely used in chemical plants, oil tank areas, steel plants, gas stations, pharmaceutical factories, environmental inspections and other places that require high security, providing stable and reliable communication services for workers.


Feature of Explosion-Proof Phone For Hazardous Areas

1) Support 5G dual-mode network to ensure users can enjoy high-speed network services anywhere.

2) Adopting a dual screen design, the main screen size is 6.43 inches and the secondary screen size is 1.58 inches, providing a clear visual experience.

3) It has excellent waterproof and dustproof performance, and can work normally in harsh environmental conditions such as humidity and dust.

4) The phone shell can effectively resist impact and collision, protecting the internal components of the phone from damage.

5) Equipped with fast charging function and a large battery capacity, it can maintain sufficient power for long-term use.

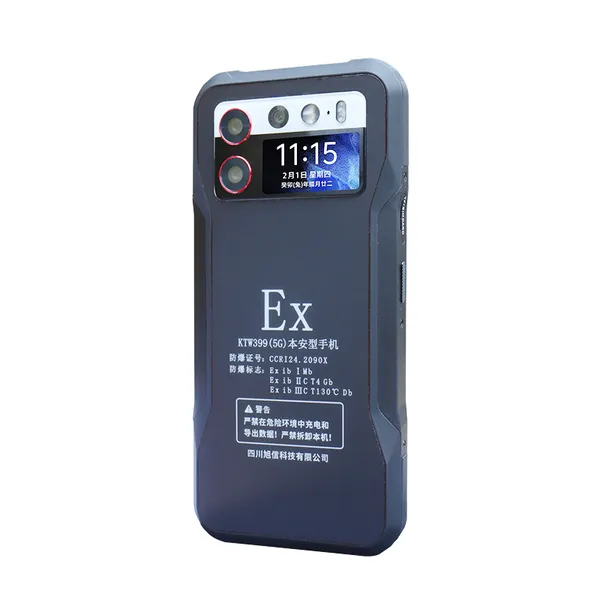

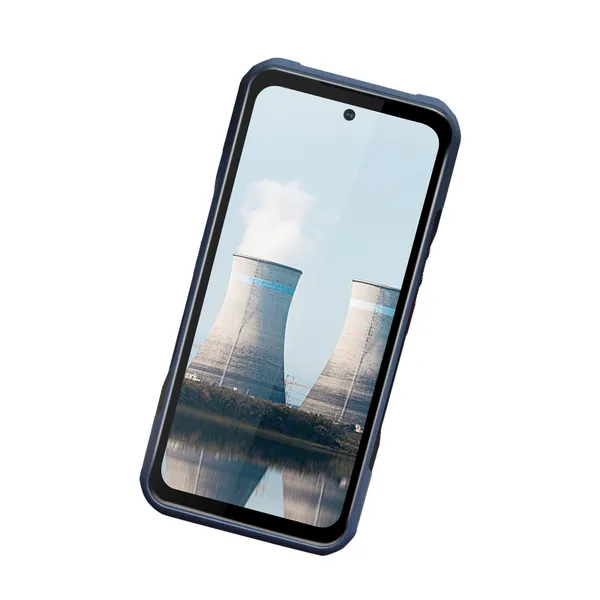

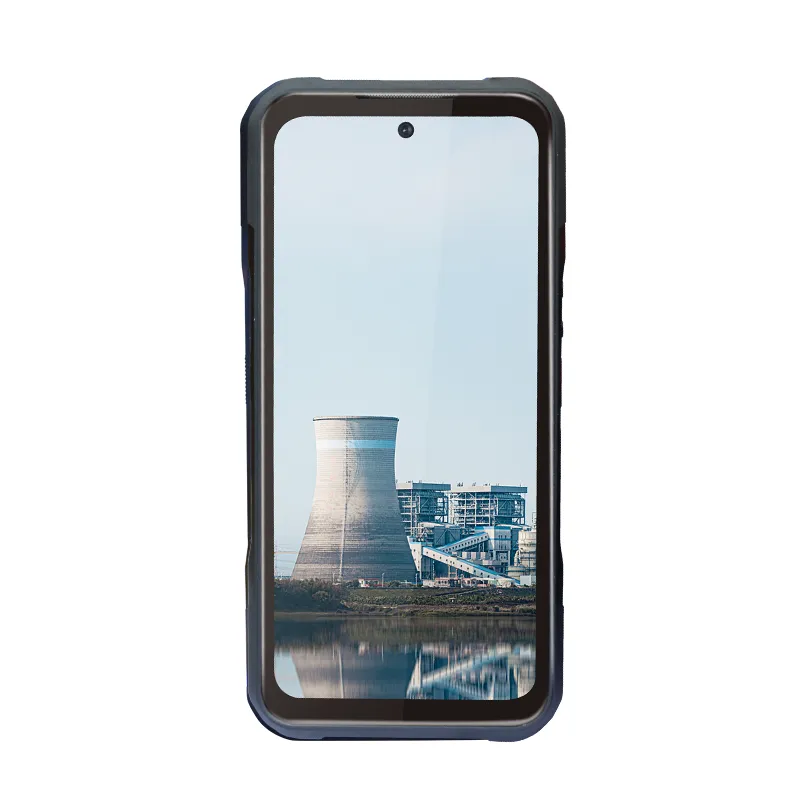

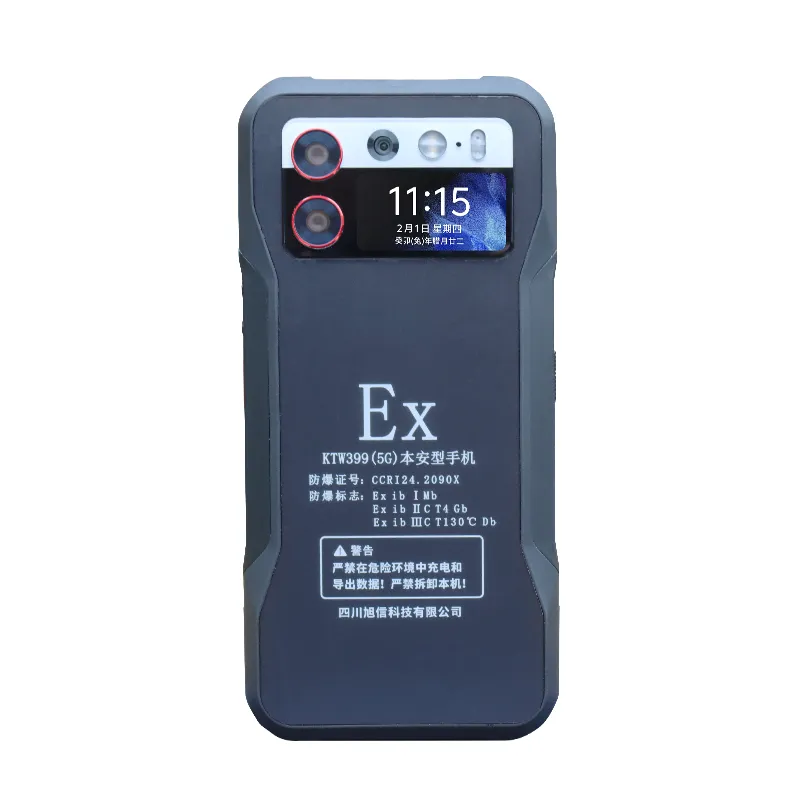

Detail photos of Explosion-Proof Phone For Hazardous Areas





Product parameters of Explosion-Proof Cell Phones For Hazardous Areas

Product model

KTW399(5G)

Explosion proof mark

Ex ib I Mb

Ex ib IIC T4 Gb；

Ex  ib IIIC T130℃ Db；

Network standard

GSM/WCDMA/CDMA/FDD/TDD/SA/NSA

Network frequency band

NR: N1/3/5/7/8/20/28/38/40/41/77

78/79

FDD: B1/2/3/4/5/7/8/12/13/17/18/

19/20/25/26/28A/28B/66

TDD: B34/38/39/40/41

WCDMA: B1/2/4/5/6/8/19

CDMA: BC0/BC1/BC10

GSM: B2/3/5/8

CPU model

MT6833  Dimensity 700

CPU core

2x ARM Cortex-A76 2.2GHz 256KB L2、6x ARM Cortex-A55 2.0GHz 128KB L2、1MB L3

Processor technology

7nm

GPU model

Arm Mali-G57 MC2

Operating system

Android 13

Main screen

Screen type

AMOLED

Screen size

6.43 inches

resolving power

2400 × 1080 pixels

screen color

16.7 million colors

Pixel density

409PPI

Screen aspect ratio

20:9

Screen to body ratio

84.89%

brightness

500cd/m2

contrast ratio

80000:1

Touch

Multi touch

IC

GT9885

Secondary screen

Screen type

AMOLED

Screen size

1.58 inches

resolving power

460*228

screen color

16.7 million colors

Pixel density

325PPI

Screen aspect ratio

2:1

Screen material

Panda Glass

IC

FT3168

contrast ratio

10000:1

Front camera

sensor chip

OmniVision  OV20880

Sensing area

1/3.1inch  5P

Pixel size

5184*3888   20M

aperture

F/2.0±5%

Field of view angle

75.5°(Diag)

focus mode

FF

Shooting function

Video, Picture, Potrait, GIF, Beauty, Anti flicker, Filter, Film mode, Mirror



















Rear Camera

main camera

sensor chip

OmniVision OV50C

Sensing area

1/2.5 inch  5P

Pixel size

8192*6144   50M

aperture

F/1.8±5%

Field of view angle

78.83°(Diag)

focus mode

AF

flash lamp

support

Shooting function

HDR, AI camera, Night Mode, Video, Picture, Pro Mode (adjustable parameters), Portrait, GIF, Panorama, Intelligent Scanning, Beauty, Anti flicker, Slow motion, Film mode, Time Lapse, Filter

Wide angle+macro camera

sensor chip

Samsung  S5K4H8YX

Sensing area

1/4inch 5P

Pixel size

8M 3264*2448

aperture

F/2.2±5%

Field of view angle

118.8°(Diag)

focus mode

AF

Shooting function

Picture, Brand watermark, Filter, Anti flicker, Macro, Wide Angle

Night vision camera

sensor chip

OmniVision OV24A1B-rev-1B

Sensing area

1/2.83inch 6P

Pixel size

24M 5664*4248

aperture

F/1.8±5%

Field of view angle

78°(Diag)

focus mode

AF

Shooting function

Video, Picture, Anti flicker, Filter

Image format

JPEG、BMP、GIF、PNG etc

Video format

MP3、M4A、AAC、MKA、AMRALAC(Apple Lossless)、FLAC、APE、WAV

Size

171mm×81.70 mm×14.60mm

weight

Approximately 296g (including battery)

SIM card

Nano SIM+Nano SIM

Or Nano SIM+TF card

Bluetooth

BT 5.1

Data/charging interface

USB Type-c

Headphone jack

Type-C to 3.5mm headphone jack

Horn

1217BOX  AAC

Motor

1027 Flat Motor

Receiver

0809 waterproof earpiece

Microphone

AAC Silicon microphone

WLAN

WLAN protocol

802.11 a/b/g/n

WLAN frequency

Supports 2.4G and 5.0G

WLAN hotspot

support

NFC

support

OTG

support

Fingerprint identification

Support (side fingerprint)

Facial recognition

support

Location

Beidou、Galileo、Glonass、GPS

Side keys

Power button

Volume+/- key

Customize buttons

Gravity sensor

support

Distance sensor

support

Environmental light sensor

support

Compass

support

Ground pool

support

Gyroscope

support

Barometer

support

Gyroscope

support

Compass

support

Memory

8GB+256GB

12GB+256GB

20GB+256GB



Expand storage

TF memory card, with a maximum expansion support of 2TB

Battery

6000mAh intrinsic safety lithium battery (built-in)

Working temperature

-20℃～+50℃

Relative humidity

≤98%（25℃）

Atmospheric pressure

80 kPa～106kPa

Storage temperature

-40℃～+60℃

Applicable places

Can be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and can also be used in combustible dust environments

Protection level

IP68（1.2m，30min）



FAQ

Q1：Can I customize Explosion-Proof Cell Phones For Hazardous Areas?

A1：Sure, our factory produces OEM/ODM .

Q2： Can you put my brand name(LOGO)on the products?

A2: Yes,We can.

Q3. Why choose you?

A3: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .

Q4. How can you slove the problem if we receive the defective goods？

A4: Send us the pictures or video first time, we will send free replacement spare parts for you.

Q5：Are you a trading company or a manufacturer?

A5：We are a manufacturer with over 10 years of experience. Welcome to visit our factory.
