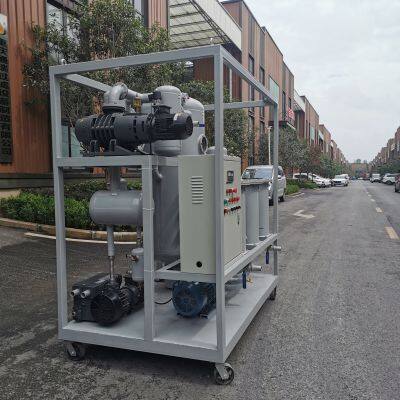

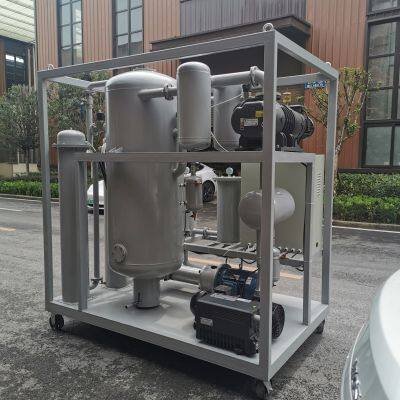

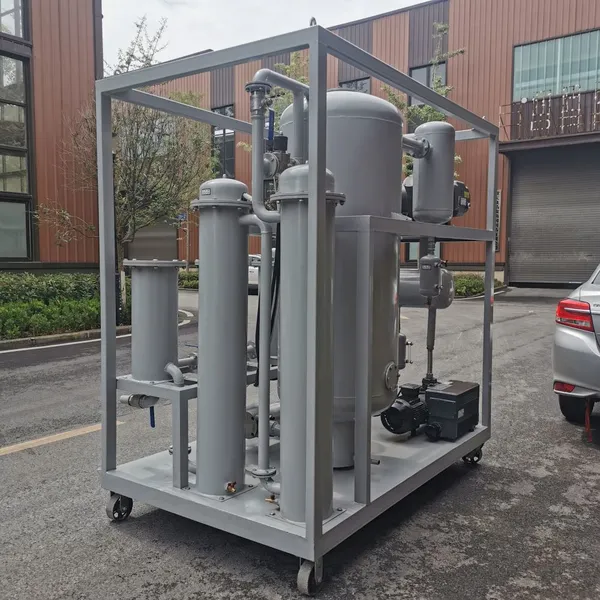

ZJA-J100 Insulation Oil Filtration Equipment Transformer Oil Treatment Plant

1.For maintenance of large scale power substation transformers, rapid and deep treatment of new transformer oil, imported insulation oil. As well as vacuum filtering and purifying of mutual inductor oil, capacitor oil, refrigerator oil.

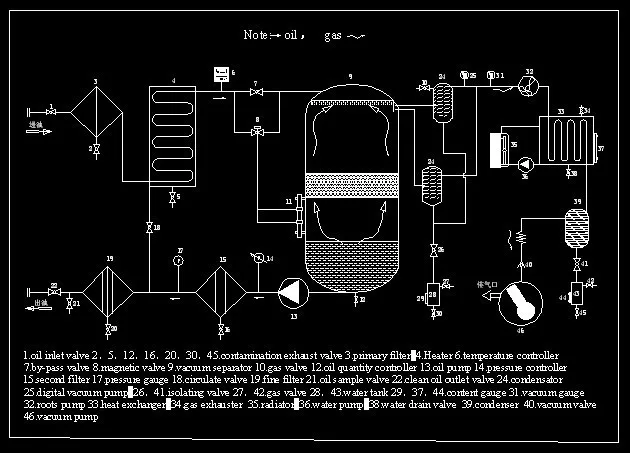

THE FLOW CHART OF Transformer oil purifier machine

Advantages:

1.outdoor use with roof,close/open ventilation window,skid basic mounted,enough lifting hook;
2.To remove free, soluble water, carbon, free and dissolved gases and particulate matters, dust from insulating oil effectively and rapidly.
3.Enhance the value of breakdown voltage greatly.
4.Easy handling and maintenance.
5.Inject oil into the transformers online.
6.Automatic reverse-washing system will extend the lifetime of filters and improve the performance of the filters.
7.High performance security system including pressure protection device and automatic temperature controller makes purifier operate safely.
