Home > Industrial Equipment & Components > Bearing > Thrust Self-aligning Roller Bearing > BFS-8054 Tapered Roller Thrust Bearings
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
WJZW
Place of Origin:
China
Number of Row:
Single Row
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
4 days
Related Products
-
BFS-8028 Tapered Roller Thrust Bearings T911NegotiableMOQ: 2 Pieces -
BFS-8023 A Tapered Roller Thrust Bearings T921NegotiableMOQ: 2 Pieces
-
BFS-8040 B Tapered Roller Thrust Bearings T921NegotiableMOQ: 2 Pieces
-
BFS-8033 Tapered Roller Thrust Bearings T1120US$ 2385 - 3000MOQ: 2 Pieces
-
BFS-8052 Tapered Roller Thrust Bearings T11500US$ 2650 - 2800MOQ: 2 Pieces
Brand Name
WJZW
Place of Origin
China
Number of Row
Single Row
Seals Type
open
Outside Diameter
,
Bore Size
,

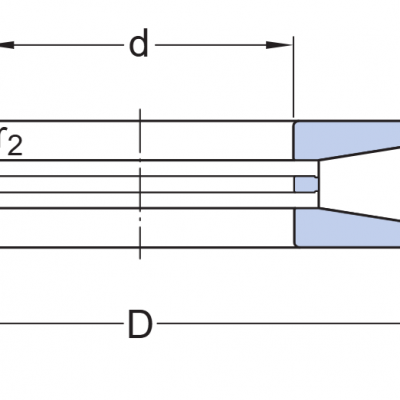

| d | 203.2 mm | Bore diameter washer |
|---|---|---|
| D | 419.1 mm | Outside diameter washer |
| H | 92.075 mm | Height |
| B | 30 mm | Height of washer |
| r1,2 | min.9.7 mm | Chamfer dimension, shaft side |
| r3,4 | min.9.7 mm | Chamfer dimension, shaft side |
Abutment dimensions
da
min.384 mm
Abutment diameter shaft
Da
max.231 mm
Abutment diameter housing
ra
max.8 mm
Fillet radius
Calculation data
Basic dynamic load rating C
3 450 kN
Basic static load rating C0
12 500 kN
Fatigue load limit Pu
800 kN
Reference speed
400 r/min
Limiting speed
750 r/min
Comparative load ratings for the oil and gas industry
Dynamic load rating C90
1 200 kN
Dynamic load rating C1
4 627 kN
Main thrust rating (API 8C) WS
273 ton (US)
