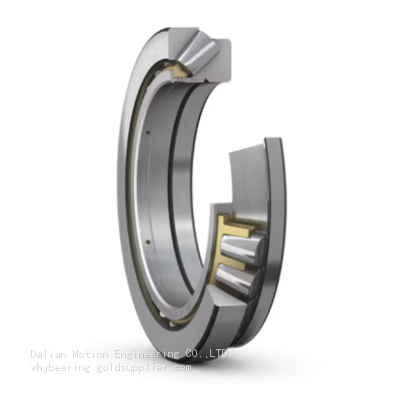

294/900EM Thrust spherical roller bearing

Name: 294/900EM Thrust spherical roller bearing
Brand: WJZW
Availability: InStock

FOB Price

USD $2 - $65 / Piece

2 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port DALIAN
Payment TermsT/T L/C PayPal D/P Western Union Other
Delivery Detail4 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	WJZW	Place of Origin	China
Model Number	294/900EM	Number of Row	Single Row
Seals Type	OPEN	Precision Rating	P0
Outside Diameter	,	Bore Size	,

Product Description

(mm)									(kN)			(rpm)
Boundary Dimensions									Basic Load Ratings			Speed Ratings			Bearing Code
									Basic Load Ratings
d	D	H	r1.2	d1	D1	B	C	S		Ca	Coa		Grease	Oil		New	Old

100	170	42	1.5	152	128	26.2	20.8	58		410	1280		1500	2000		29320	9039320
	210	67	3	190	146	45	32	62		590	860		1000	1400			9069420
	210	67	3	185	144	43	33	62		840	2400		1100	1600		29420	9039420

110	190	48	2	175	135	30	24	64		347	970		1100	1600			9069322
	190	48	2	175	143	16	23	64		530	1710		1300	1800		29322	9039322
	230	73	2	195	150	43	35	69		545	1497		950	1400			9069422

	230	73	3	208	155.5	26	34.4	69		1010	2930		950	1400		29422	9039422

120	210	54	2.5	188	161	34	30	57		380	680		1000	1600			9069324
	210	54	2.1	187.5	156.5	34	27	70		645	2100		1100	1600		29324	9039324
	250	78	4	222	181	48	38	74		720	1100		750	1100			9069424

	250	78	4	222	172	50.5	37	74		1160	3400		900	1300		29424	9039424

130	225	58	2.5	200	170	37	29	76		440	750		950	1500			9069326
	225	58	2.1	200	166	36.5	28	76		740	2450		1000	1500		29326	9039326
	270	85	4	240	190	55	44	79		760	1100		700	1100			9069426

	270	85	4	246	183	31	39.7	81		1330	3900		850	1200		29426	9039426

140	240	60	2.1	216.5	179	38.5	30	82		840	2810		950	1400		29328	9039328
	280	85	4	247	203	55	47	64		825	1120		670	950			9069428
	280	85	4	244.5	195.5	54	42	86		1370	4200		850	1200		29428	9039428

150	215	39	1.5		177					351	1560			1800		29230	9039230
	250	60	2.1	220	185	36	31	87		525	1670			1200			9069330
	250	60	2.1	240	194	20	29	87		870	2900		950	1400		29330	9039330

	300	90	4	270	220	60	48	69		995	1760		630	900			9069430
	300	90	4	266	206	58	44	92		1580	4900		800	1100		29430	9039430

160	225	39	1.5		188					362	1650			1700		29232	9039232
	270	67	3	240	200	45	32	92		610	2240			1100			9069332
	270	67	3	243	203	42	33	92		1010	3400		850	1200		29332	9039332



160	320	95	5	275	234	61	53	74		1000	1720		560	800			9069432
	320	95	5	285	218.5	34	46.9	99		1740	5400		750	1000		29432	9039432

170	240	42	1.5		201					408	1900			1600		29234	9039234
	280	67	3	260.3	216	43.5	31.7	96		1050	3500		850	1200		29334	9039334
	340	103	5	310	243	71	48	104		1210	2200		530	750			9069434
	340	103	5	302	235	65.5	50	104		1680	5800		700	950		29434	9039434

180	250	42	1.5	239	209	15	21.3	97		420	2010		900	1600		29236	9039236
	300	73	3	270	225	46	36	103		790	2731		630	900			9069336
	300	73	3	275	229	25	34.4	103		1230	4200		800	1100		29336	9039336

	360	109	5	308	265	67	58	82		1210	2200		550	750			9069436
	360	109	5	326	249.5	39	51.2	110		1870	6500		670	900		29436	9039436

190	270	48	2	250	224	30	24	110		420	1746			1000			9069238
	270	48	2	255	226		25.5	103		518	2200			1400		29238	9039238
	320	78	4	288.5	244	49	38	110		1370	4700		750	1000		29338	9039338

	380	115	5	345	263	41	53.7	117		2100	7450		630	850		29438	9039438

200	280	48	2	266	236	15	24	108		540	2310			1400		29240	9039240
	340	85	4											800			9069340
	340	85	4	306.5	257	53.5	41	116		1570	5450		700	950		29340	9039340

	400	122	5	360	278	62	62	122		1740	6054			710			9069440
	400	122	5	360	267.5	44	56.7	122		2290	8150		600	800		29440	9039440

220	300	48	6	286	260	31	24	117		504	1932		850	1300			9069244
	300	48	6	285	254	15	24	117		560	2500			1300		29244	9039244
	360	85	6	320	270	52	44	125		970	3768			800			9069344

	360	85	6	330	277.5	29	40.7	125		1340	5200		700	950		29344	9039344
	420	122	6	400	330	78	59	142		1830	6624			710			9069444
	420	122	6	385	308	43	58	132		2350	8650		560	750		29444	9039444

240	340	60	2.1	325	283	19	30	130		800	3450			1100		29248	9039248


240	380	85	4	340	290	52	44	135		1320	4250			800			9069348
	380	85	4	360	298.5	29	41	135		1360	5400		670	900		29348	9039348
	440	122	6	380	310	62	62	142		1920	7160		550	750			9069448

	440	122	6	400	316	43	60	142		2420	9100		560	750		29448	9039448

260	360	60	2.1	335	302	38	30	139		645	2880		530	750			9069252
	360	60	2.1	345	302	19	30	139		855	3850			1100		29252	9039252
	420	95	5	370	315	60	46	148		1420	5850			710			9069352

	420	95	5	392.3	327.5	70.9	46	148		1700	7500		600	800		29352	9039352
	480	132	6	415	335	80	66	154		2120	8220			630			9069452
	480	132	6	445	346	86	63	154		2820	10700		500	670		29452	9039452

280	380	60	2.1	365	323	19	30	150		885	4100		700	1000		29256	9039256
	440	95	5	413	348	64	46	158		1560	6120		530	750			9069356
	440	95	5	410	348	32	46	158		1830	7650		600	800		29356	9039356

	520	145	6	450	365	75	72	166		2600	9860			630			9069456
	520	145	6	480	384	104	68	160		3400	13100		480	630		29456	9039456

300	420	73	3	400	353	21	38	162		1160	5150			900		29260	9039260
	480	109	5	425	365	58	52	168		1870	7650			630			9069360
	480	109	5	450	379	37	50	168		2190	9100		530	700		29360	9039360

	540	145	6	500	402	52	70	175		3500	13700		450	600		29460	9039460

320	440	73	3	420	372	21	38	172		1190	5450			850		29264	9039264
	500	109	5	445	385	68	55	180		2030	7960			560			9069364
	500	109	5	463	394	83.4	52.3	180		2230	9400		500	670		29364	9039364

	580	155	7.5	500	410	95	75	191		2930	11660						9069464
	580	155	7.5	555	436	108	75	191		3650	14600		430	560		29464	9039464

340	340	73	3	438	388	48	36	204		1150	2550		530	750			9069268
	460	73	3	440	395	21	37	183		1230	5750			850		29268	9039268
	540	122	5	480	410	74	62	192		2710	11000						9069368


340	540	122	5	510	428	41	59	192		2640	11200			600		29368	9039368
	620	170	7.5	560	449.5	61	80	201		4400	17400		380	500		29468	9039468

360	500	85	4	480	423	25	44	194		1550	7300			750		29272	9039272
	560	122	5	525	448	41	59	202		2670	11500			600		29372	9039372
	640	170	7.5	555	460	87	85	210		3790	15440			450			9069472
	640	170	7.5	580	474	63	83.5	210		5200	21000			500		29472	9039472

380	520	85	4	496	441	27	42	202		1620	7800			700		29276	9039276
	600	132	6	561	475	44	61.4	216		3300	14200			530		29376	9039376
	670	175	7.5	610	494	120	87.5	222		5800	24000			480		29476	9039476

400	540	85	4	500	450	55	42	212		1260	7060						9069280
	540	85	4	510	460	27	42	212		1640	8000		500	700		29280	9039280
	620	132	6	555	475	81	65	225		2860	12200						9069380

	620	132	6	582	489	44	64.7	225		3250	14500		440	620		29380	9039380
	710	185	7.5	659	547	112	96	236		4450	19200						9069480
	710	185	7.5	645	525	67	89.5	234		6350	26100			450		29480	9039480

420	580	95	5	548	489	62	46	251		1880	5300			560			9069284
	580	95	5	553	489	30	46	225		2010	9800			630		29284	9039284
	650	140	6	610	514.5	48	68	235		3600	16000		420	600		29384	9039384

	730	185	7.5	665	545	67	90.5	244		6650	27500			430		29484	9039484

440	600	95	5	575	508	30	49	235		2030	10100			630		29288	9039288
	680	145	6	626	540	49	70.5	245		4250	16700			480		29388	9039388
	780	206	9.5	710	577	74	101	260		7550	32000			380		29488	9039488

	780	206	9.5	660	588	110	100	260		7880	34000					29488/HV

460	620	95	5	590	525.5	30	49.4	245		2060	10300		400	600		29292	9039292
	710	150	6	666	567	51	72	257		4100	18400			450		29392	9039392
	800	206	9.5	765	608	74	100	272		6900	28300			380		29492	9039492

480	650	103	5	600	540	65	50	259		1950	10500						9069296


480	650	103	5	624	556	33	55	259		2370	12100			560		29296	9039296
	730	150	6	690	590	51	72	270		4150	19000			450		29396	9039396
	850	224	9.5	810	638	81	108	280		7200	31000			340		29496	9039496

500	670	103	5	620	560	60	50	268		2050	1080						90692/500
	670	103	5	645	574	33	55	268		2390	12400		380	560		292/500	90392/500
	750	150	6	705	611	98	71	280		3550	1720						90693/500

	750	150	6	715	611	51	74	280		4350	20400		340	520		293/500	90393/500
	870	224	9.5	760	630	140	110	290		6290	27340						90694/500
	870	224	9.5	790	648	81	107	290		7850	33000		320	460		294/500	90394/500

530	710	109	5														90692/530
	710	109	5	680	604	69.5	54	288		2620	15300		350	530		292/530	90392/530
	800	160	7.5	760	648	54	76	295		5050	23300			400		293/530	90393/530

	920	236	9.5	840	700	145	116	309		8386	32600						90694/530
	920	236	9.5	880	696	85	114	310		8550	37000			320		294/530	90394/530

560	750	115	5	695	625	72	58	300		2430	13300						90692/560
560	750	115	5	732	644	37	61	302		2990	17900		360	480		292/560	90392/560
	850	175	7.5	810	687	59	85	310		5700	26700			360		293/560	90393/560

	980	250	12	935	744	91	124	325		9600	42000			300		294/560	90394/560
	980	250	12	830	727	142	122	328		12000	51000					294/560/HV

600	800	122	5	772	688	39	58	321		3300	17800			450		292/600	90392/600
	900	180	7.5	840	720	65	89	340		6330	33700			340		293/600	90393/600
	1030	258	12	900	750	156	130	360		9860	38500						90694/600
	1030	258	12	985	780	93	127	345		10100	43000			280		294/600	90394/600

630	850	132	6	800	728	86	65	338		3450	19800			300			90692/630
	850	132	6	810	723	50	62	338		4770	24200			400		292/630	90392/630
	950	190	9.5	880	761	68	92	359		8450	40300			320		293/630	90393/630

	1090	280	12	1040	830	100	136	365		11600	51500			260		294/630	90394/630
	1090	280	12	995	815	179	137	365								294/630EM


670	900	140	6	830	750	86	70	365		3670	20280						90692/670
	900	140	6	880	773	45	73	361		4200	25500			380		292/670	90392/670


670	1000	200	9.5	935	804	73	98	379		7360	39600			300		293/670	90393/670
	1150	290	15	1090	870	105	140	385		12500	56000			240		294/670	90394/670

710	950	145	6	895	805	92	75	380		3600	12000			240			90692/710
	950	145	6	900	815	46	71	380		5230	27500			360		292/710	90392/710
	1060	212	9.5	985	855	74	103	404		9950	45500			280		293/710	90393/710
	1220	308	15	1160	920	132	148	407		14300	65500			220		294/710	90394/710

750	1000	150	6	950	858	52	74	409		5870	33700					292/750	90392/750
	1120	224	9.5	1086	910	76	109	415		9370	51000					293/750	90393/750
	1280	315	15	1152	972	160	158	448		14340	58600						90694/750

	1280	315	15	1220	970	128	152	429		15100	69000					294/750	90394/750

800	1060	155	7.5	985	890	80	80	475		5635	28870						90692/800
	1060	155	7.5	1010	907.5	50	80	426		6350	33700					292/800	90392/800
	1180	230	9.5	1146	965	78	111	440		9950	56100					293/800	90393/800

	1360	335	15	1300	1030	121	162	445		16600	77500					294/800	90394/800
	1360	335	15	1160	1034	185	165	462		20200	93000					294/800A

850	1120	160	7.5	1060	967	47	82	455		6730	37400					292/850	90392/850
	1250	243	12		1024					11100	61600					293/850	90393/850
	1440	355	15	1250	1034	142	172	507		18700	99000					294/850	90394/850

900	1180	170	7.5		1023					6330	40900					292/900	90392/900
	1520	372	15	1450	1164	135	185	520		22200	121000					294/900	90394/900

950	1250	180	7.5	1185	1081	58	88	507		8280	46600					292/950	90392/950
	1600	390	15	1470	1209	153	191	546		28200	13200					294/950	90394/950

1000	1320	190	9.5		1139					7990	52800					292/1000	90392/1000
	1460	276	12	1365	1192	100	137	561		14400	82500					293/1000	90393/1000


1060	1400	206	9.5	1300	1180	128	103	566		7800	48000						90692/1060
	1400	206	9.5	1335	1208	66	100	566		10500	59400					292/1060	90392/1060

1180	1520	206	9.5	1450	1331	83	101	625		10900	64000					292/1180	90392/1180

1250	1800	330	12	1685	1474	147	161	698		24800	129000					293/1250	9039/1250

1600	2280	408	19	2130	1885	166	195	894		36800	200000					293/1600	9039/1600

Contact Us

Dalian Motion Engineering CO.,LTD.: Contact namewang
Chat Now; Addresswafangdian, Dalian, Liaoning

*Email
Please enter Your valid email address.
*To

wang
*Message
Your inquiry content must be between 20 to 5000 characters.
Please enter a correct verification code.

Product Categories

Cylindrical Roller Bearing	Spherical Roller Bearing	Thrust Spherical Roller Bearing	BEARING HOUSE CATINGS
Tapered Roller Bearing	Angular Contact Ball Bearing	Spherical Plain Bearing	Splite Bearing
Single Row Cylindrical Roller Bearing CARB BEARING

294/900EM Thrust spherical roller bearing

You May Like

Product Details

Product Description

Contact Us

Product Categories

New Products

Popular Searches

Recommended Products

Find Similar Products By Category

Product Tags:
