Plastic PP PE HDPE LDPE ABS PS PET Sink Float Washing / Rinsing / Floating Separating Cleaning tank for Plastic Recycling

Standard transport package

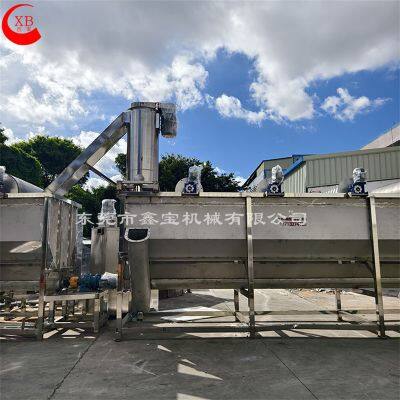

Plastic sink and float tank

Working principle

Put the plastic material into the front end of the rinsing tank, the rinsing wheel rotates to drive the material rinsing and forward, under the action of the reducer, the bottom screw pushes the material to clean while feeding. Because the density of different plastics is different, it will naturally sink and float in the sink, so as to achieve separation, such as PET is a sinking material, and the beverage bottle cap is a floating material, which can be separated in this way.

Structural characteristics

 Material: Mostly made of high-quality stainless steel or carbon steel material, stable and durable, corrosion resistant, such as the use of bearing external design, can avoid long-term contact with water immersion caused by corrosion.

 style: single screw and twin screw two kinds of structure, can be used with the whole assembly line can also be used alone.

 Internal components: usually equipped with rinsing wheel, spiral blade, material plate, dredge machine, drainage screen, drainage valve, etc., the bottom can also be equipped with spiral charging machine, convenient for quick separation of sinking and floating materials.

Functional advantage

 separation and cleaning: suitable for rinsing pp, pe, pet and other sheets, can automatically separate bottle caps and other floating debris, effectively separate the sand and paper in various sheet materials, remove the cleaning agent, stain, glue and dust on the bottle sheet, make the broken sheet cleaner and whiter.

 Cycle filtration: The cycle filtration system is comprehensively upgraded to improve the filtration and precipitation efficiency, ensure the recycling of cleaning agents, save the amount of cleaning agents and water consumption, and reduce secondary pollution.

 Safety protection: equipped with anti-sound partition, which can effectively prevent shock and reduce noise, the motor is equipped with over-load protection device, and the power supply chain protection system, the operation is safer.

 Non-standard customization: Supports non-standard customization, and can accurately match the width, length, height and power according to the actual needs of customers' projects to meet different production and process requirements.

Application field

Mainly used in plastic recycling industry, widely used in ABS, PS separation and PET bottle recycling cleaning process, is the plastic broken sheet, block plastic cleaning, multi-material material mixed sorting and cleaning necessary equipment.
