Product No: CK210

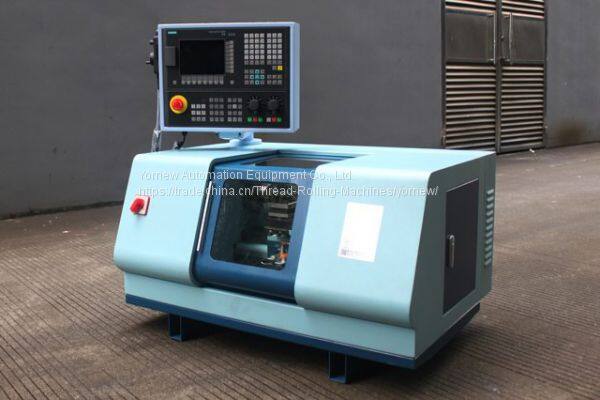

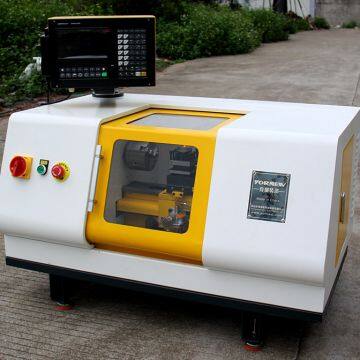

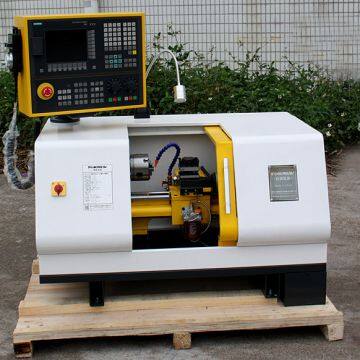

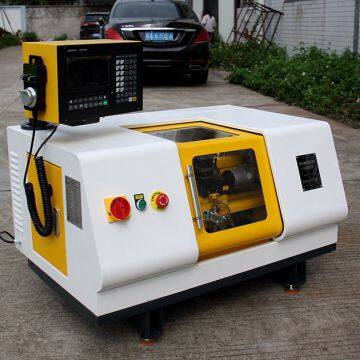

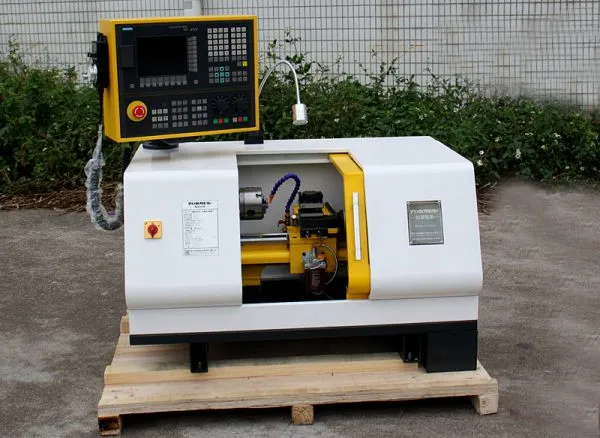

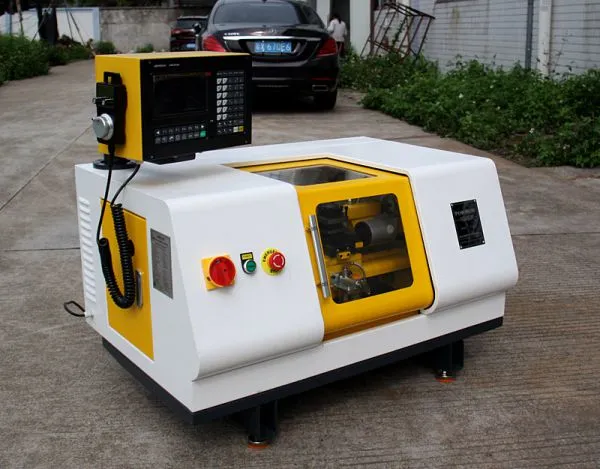

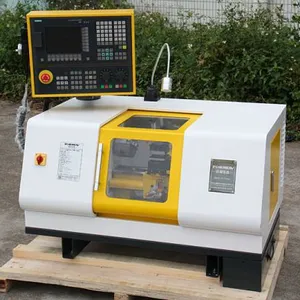

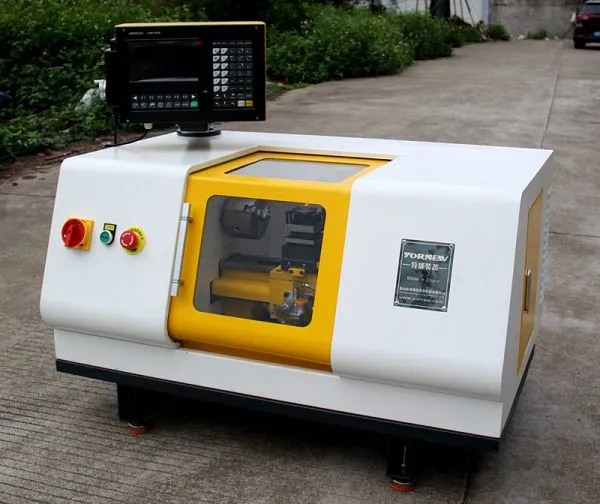

Product Name: Mini CNC Lathe
Features

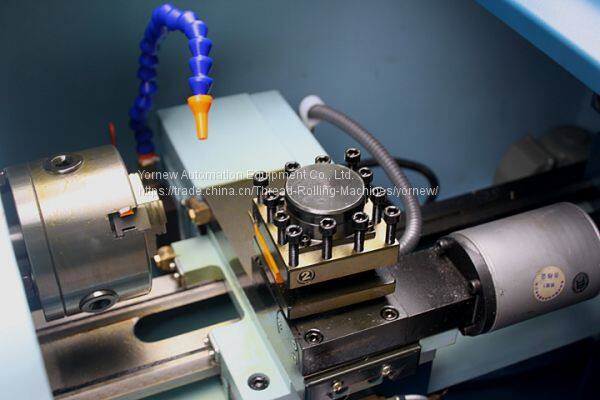

(1).Automatic 4 positions tool post.
(2).With sink and nozzles.
(3).High performance 2 axis cnc lathe controller,Optional siemens 808D or GSK980TB3 CNC controller..
(4). ARM 9 CPU+FPGA,Ethernet network interface,Support B macro function,PLC function,Mutil-language library function..
(5).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(6). The standard spec includes MPG hand wheel.
(7). USB and RS232 port, DNC function of USB.
(8). Network interface, supporting for remote monitoring and DNC file transfer processing.
(9). Control speed of G code.
(10). Selection of high -quality casting materials,more compact.
(11). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(12). 220V single-phase AC power supply.
(13). Safety electrical components of high quality.
(14). Auto power off when door open.
(15). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters | |
|---|---|
| Turning diameter over bed(max) | 210mm |
| Chuck diameter | 100mm |
| Spindle speed | 100-1750r/min(control speed of G code) |
| Spindle through-hole | 20mm |
| Spindle mount | MT3 |
| Spindle motor power | 500W |
| X travel | 80mm |
| Z travel | 290mm |
| The max moving speed | 2000mm/min |
| The max feeding speed | 1000mm/min |
| Control system | Adtech 4620,Optional siemens 808D or GSK980TB3 cnc controller |
| Instruction | DXF+G code template function, converting DXF automatically to G code for processing |
| MPG handwheel | 4 axis |
| Tool position | 4 |
| Tool dimension | 10*10mm |
| Tailstock taper | MT2 |
| Tailstock sleeve diameter | 20mm |

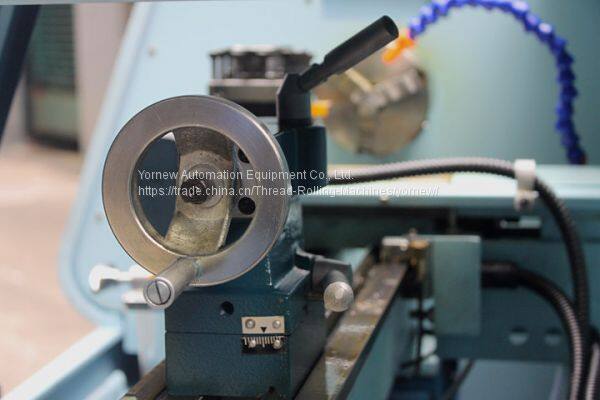

| Travel of tailstock | 25mm |
| Positioning accuracy: | 0.015mm |
| Repeatability accuracy | 0.02mm |
| Power | 220V/110V |
| Weight(NW/GW) | 180/200KG |
| Overall dimension | 1000*580*680mm |
| Packing size | 1100*700*610mm |
