2RS485 12DI Industrial Controller With 2+16G Supports Docker for Automation Control

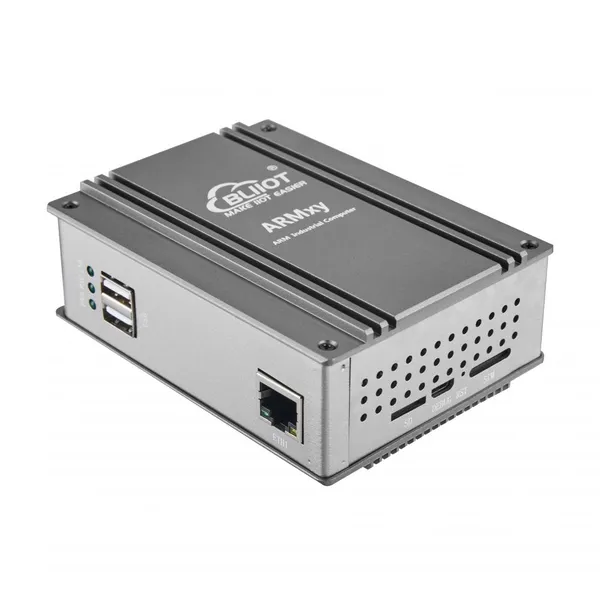

The ARMxy BL370 series is an industrial-grade ARM embedded computer powered by the Rockchip RK3562/RK3562J processor with a quad-core ARM Cortex-A53 and a single-core ARM Cortex-M0. It offers up to 1.8GHz/2.0GHz clock speed and comes with 8/16/32GB eMMC storage, 1/2/4GB LPDDR4X RAM, and a built-in 1TOPS NPU for deep learning. It features multiple I/O interfaces, including 1-3 10/100M Ethernet ports, USB 2.0, HDMI 2.0, and I/O boards for data acquisition and control. The device supports 1080P@60fps H.264 video encoding, 4K@30fps H.265 video decoding, and communication modules like Bluetooth, WiFi, 4G, and 5G via Mini PCIe. Compatible with Linux, Ubuntu 20.04 it supports Docker, Node-RED, and Qt for IoT development. The BL370 series is widely used in fields such as industrial control, edge computing, AIoT, artificial intelligence, communication management systems, AGV robots, machine vision inspection, robotics, industrial IoT gateways, energy storage systems, automation control, and transportation rail systems.


Product Selection Guide

The ARMxy series ARM embedded controllers adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.
Product naming convention
Product Series Model Number - SOM Model Number - X Board Model Number - Y1 Board Model Number - Y2 Board Model Number
For example: BL370-SOM370-X10 means 1 Ethernet port, 8GB eMMC, 1GB LPDDR4X, and 2 RS485 ports.
If you need to add WiFi, then you would append "W" to the host model number. For example: BL370W-SOM370-X10
If you need to add a 4G module, you would append "L" to the host model number. For example: BL370L-SOM370-X10


ARMxy BL370 SOM Model List
