Home > Products > Fiber Optic Cable > Fiber Patch Cord, LC/UPC-LC/UPC, G657A1, Simplex, 3.0mm, LSZH, 3.5 Meter

Fiber Patch Cord, LC/UPC-LC/UPC, G657A1, Simplex, 3.0mm, LSZH, 3.5 Meter

FOB Price

US$ 0.99 - 1.69 / Piece

200 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T L/C PayPal D/P Western Union Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CSYHT		Place of Origin	China
Model Number	Fiber Patch Cord, LC/UPC-LC/UPC, 3.5 meter

Product Description

Product Description:

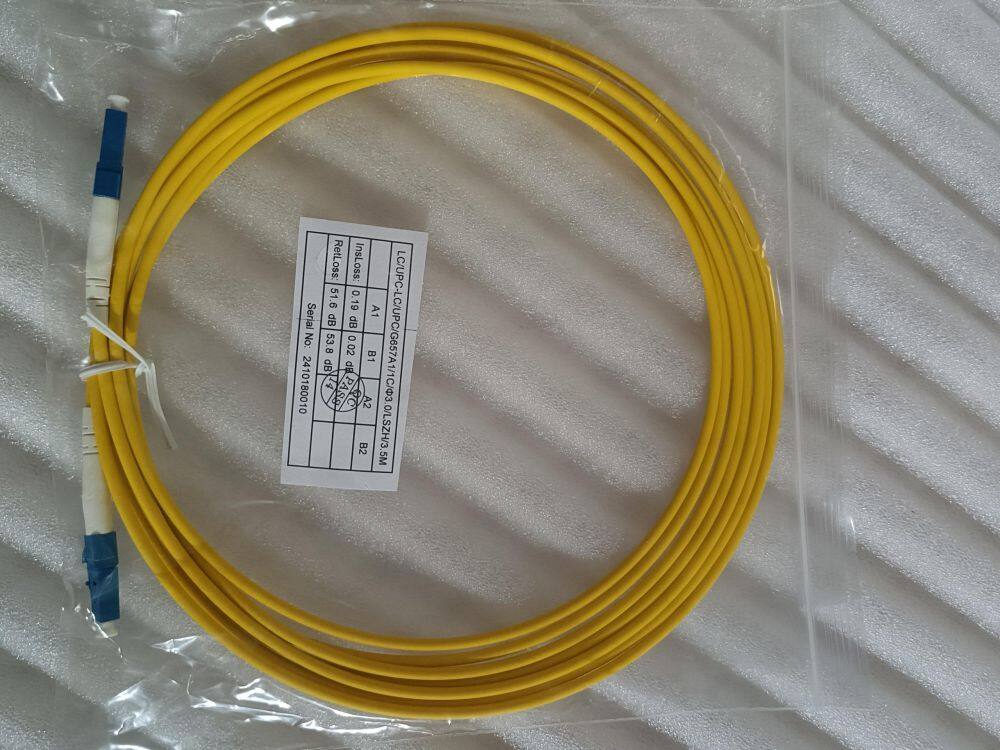

Patch cord L=3.5 m, single-mode, single, with LC-LC type connectors, UPC polishing, in a flame retardant sheath, with low smoke and gas emission, halogen- free, outer diameter not more than 3 mm

Fiber Patch Cord, LC/UPC-LC/UPC, G657A1, Simplex, 3.0mm, LSZH,

3.5 meter

LC Fiber Optic Patch Cord

LC fiber optic patch cord is available in both single-mode and multimode versions.

Both single-mode and multimode versions LC fiber patch come with a zirconia ceramic ferrule.

Features:

¨ Standard exact plastic material

¨ Low insertion loss

¨ High return loss

¨ Small, light, high dense connection

¨ Push-pull RJ-45 lockable structure, easy for operation

¨ Good in repeatability

¨ Good in exchange

Application:

¨ Telecommunications

¨ CATV, LAN,MAN, WAN, Test & Measurement

¨ Military industry

¨ Medical

Parameter:

Parameter	Unit	Standard & Requirement
Parameter	Unit	PC(SM)	UPC(SM)	APC(SM)	PC(MM)
Insertion Loss (Typical)	dB	≤0.3	≤0.3	≤0.3	≤0.3
Return Loss	dB	≥45	≥55	≥60	≥35
Mechanical Endurance (500T)	dB	≤0.2
Exchangeability	dB	≤0.2
Durability	Time	＞1000
Vibration	dB	≤0.2
Operating Temperature	℃	﹣40 ～﹢75
Storage Temperature	℃	﹣45 ～﹢85
Cable Diameter	mm	Ф3.0, Ф2.0, Ф0.9

For more customization details, message or email supplier!

Company Profile:

YHT is a 20 years professional manufacturer of fiber optic products that certified by ISO9001:2015.

We are the big professional manufacturer of fiber optic products in South of China.

YHT has its own industry park. It has more than 10 buildings and with solar power for conserving energy.

There are hardware, diemaking, injection moulding, painting, assembling, optical cable, connector & cable assembling, optical fusion splicer , workshops etc.

The following form is our product contents, please kindly review it.

If you have any inquiry about these products, please feel free to contact us.

Item	Product Name
1	Plastic fiber optic terminal box
2	Plastic fiber optic terminal box (with splitter cassette)
3	Fiber optic splitter cassette
4	Dome type fiber optic splice closure
5	Inline type fiber optic splice closure
6	Fiber optic face plate / wall socket
7	FTTH drop cable protection box
8	DIN rail fiber optic terminal box & rack
9	Wall mounted fiber optic terminal box
10	Wall mounted fiber optic distribution box
11	Fiber optic splitter box / cassette
12	Fiber optic splitter
13	Plastic 19inch fiber optic patch panel
14	Drawer 19inch fiber optic patch panel
15	Fixed 19inch fiber optic patch panel
16	Rotary 19inch fiber optic patch panel
17	MPO 19inch chassis & MPO cassette
18	Optical cable storage box
19	Optical cable management panel
20	Fiber optic cross connection cabinet
21	Fiber optic distribution cabinet
22	Fiber optic network cabinet
23	Fiber optic splice tray
24	Fiber optic adapter panel
25	Fiber optic attenuator
26	Fiber optic adapter
27	Fiber optic connector
28	Fiber optic fast connector
29	Fiber optic pigtail
30	Fiber optic patch cord
31	Fiber optic cable
32	FTTH drop cable & Fiber optic drop cable clamp
33	Cable clamp, Cable stripping protection box, Fiber spool
34	Fiber fan out kit, Mid span cable slitter, Heat shrinkable protection sleeve
35	Fiber optic connector cassette cleaner, clean pen, cleaning paper
36	Optical fiber fusion splicer , FTTH tool bag
37	OTDR, OTDR optical fiber launch cable, Insertion/Return loss tester
38	Optical power meter, optic talk set, fiber microscope, Fiber optic connector inspection system, optical fiber identifier
39	Optical light sourse, Visual fault locator, Gas detector, Fiber optic media converter, SFP

Company Information

Shenzhen YHT Broadband Equipment Co., Ltd

Provide fiber optic products such as fiber optic terminal box, fiber optic patch panel, fiber optic distribution box, ODF, FTTH box, fiber optic splice closure, fiber optic splitter box, cassette, cabinet, fiber optic connector, adapter, jumper, pigtail, PLC splitter and so on.

There are hardware, diemaking, injection moulding, painting, assembling, fiber optic cable production, connector and cable assembling workshops for producing fiber optic splicing, connection, distribution and termination products.

Packaging & Shipping

Fiber Patch Panel, Fiber Terminal Box, Fiber Splice Closure, Fiber Patch Cord, Fiber Adapter, PLC Splitter, Fusion Splicer, OTDR, FTTH tool...

FAQ

Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment
If you have another question, pls feel free to contact us as below:

Q: CAN YOU DO OEM & ODM SERVICE?

A: Yes, we can do OEM & ODM service. We have professional engineer team, over 10 peoples, to make product design & drawings, Logo design, carton box design...
