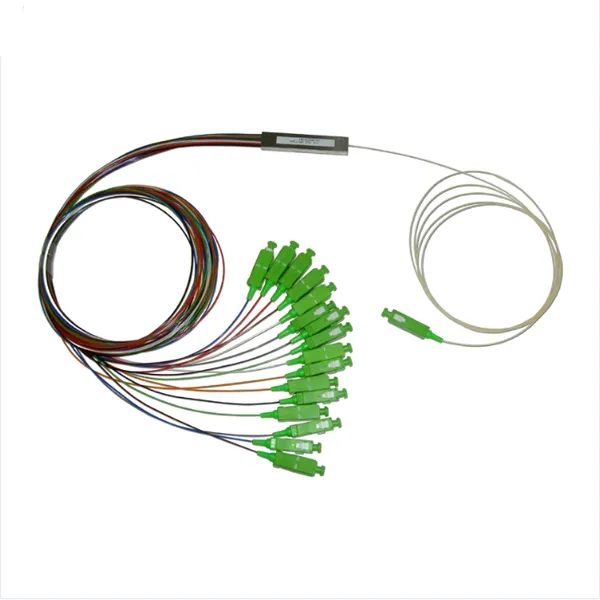

FTTH 1X8 1X16 0.9mm Fiber Optic PLC Splitter with Connector
- 10000000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
- 1*2 1*4 1*8 1*16 ABS PLC Optical Fiber Splitter
- FBT/PLC fiber optic splitter PLC 1x8 steel tube type mini type
- FTTH Network 1x8 1x12 Uneven PLC Fiber Splitter Optical Fiber Optic Splitters Fiber Optic PLC Splitter
- PLC Splitter SC APC 1X2/4/8/16/32 Mini Steel Tube Type 0.9mm Fiber Optic Splitter
- FTTH drop cable clamp 201 steel stainless materials for telecommunications solutions
- FTTH Good Price High Quality Fiber Optic Drop Cable Clamp
Product Details
Brand Name: | YHT | Place of Origin: | China | Model Number: | PLC Splitter |
Product Description
PLC Optical Splitter
PLC (Planar Lightwave Circuits) splitters are developed using silica glass waveguide circuits and aligned fiber pigtails, integrated inside a miniature package. PLC splitters provide low-cost solution for optical signal distribution, with small form factor and superb reliability.
The PLCs devices have 1x4, 1x8, 1x16 and 1x32 standard configurations, as well as customized structures of 2x4, 2x32, and 2x64. These products meet or exceed Telcordia GR-1209-CORE and GR-1221-CORE reliability qualification requirement
Features:
Low insertion loss
Various coupling ratio
high return loss and excellent uniformity.
Low Polarization dependent loss
Environmental stable
Operation wavelength: 1260nm to 1650nm
Operating Temperature:-40ºC to 85ºC
Application:
FTTx systems
Optical LAN, Metro, WAN networks
Passive optical networks
CATV networks
Specification:
Table 1 - 1×N PLC optical splitter
Parameter | Unit | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
Standard Grade | ||||||||
Insertion Loss | Max | dB | 4.2 | 7.2 | 10.5 | 13.7 | 17.0 | 20.6 |
Channel Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.6 | 1.6 | 2.0 |
Polarization Dependent Loss | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Operation Wavelength | nm | 1260~1650 | ||||||
Return Loss | MIN | dB | 55(Premium Grade) / 50(Standard Grade) | |||||
Directivity | MIN | dB | 55 | |||||
Operation Temperature | ºC | -40~+85 | ||||||
Storage Temperature | ºC | -40~+85 | ||||||
Fiber Type | - | G.657A | ||||||
250um Basic type PLC splitter | Dimension (H*W*L) | mm | 4*4*40 | 4*7*50 | 4*7*50 | 4*12*60 | ||
900um Steel tube type PLC splitter | 4*7*60 | 4*12*60 | 6*20*80 | 6*40*100 | ||||
Cassette type PLC splitter | 10*80*100 | 18*80*120 | 18*115*140 | 18*115*140 |
Table 2 - 2×N PLC Optical Splitter
Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 | |
Operating wavelength (nm) | 1260~1650 | |||||||
Fiber type | G657A or other request | |||||||
Insertion Loss (dB) (Max.) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 | 23.8 | |
Uniformity(dB) (Max.) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | 2.0 | |
Return Loss(dB) (Min.) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
Temperature stability (-40~85 ºC)(dB) (Max.) | 0.6 | 0.6 | 0.6 | 0.8 | 1.0 | 1.0 | 1.0 | |
Polarization dependent loss (dB)(Max.) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | |
Wavelength Dependent Loss (dB)(Max.) | 0.6 | 0.6 | 0.6 | 0.8 | 1.0 | 1.0 | 1.2 | |
Directivity (dB)(Min.) | 55 | |||||||
Operating Temperature (ºC) | -40~85 | |||||||
Storage temperature(ºC) | -40~85 | |||||||
Device package size (mm) (L×W×H) 0.25mm fiber | 50×4×4 | 50×7×4 | 60×12×4 | 120x26x10 | ||||
Micro Module Size (mm) (L×W×H) 0.9mm fiber | 55×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100x40x6 | 120x50x12 | ||
Module Box Dimensions (mm) (L×W×H) 2.0mm fiber | 100×80×10 | 120×80×18 | 140×115×18 | 150x130x25 |
Note:
1. Above parameter without fiber optic connectors;
2. Each connector will add loss 0.2dB.
For more customization details, message or email supplier!
