Product Overview:

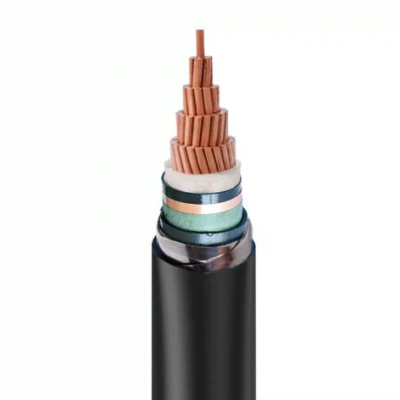

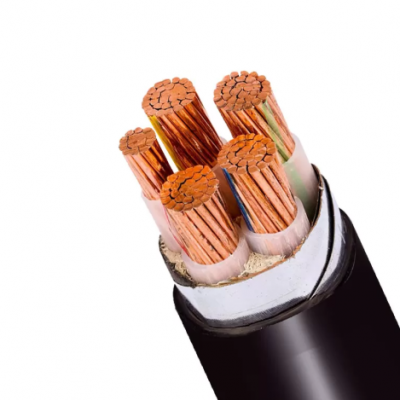

N2XBY is a type of low-voltage power cable designed for use in fixed installations. It is commonly used in power distribution systems and is suitable for both indoor and outdoor applications.
Key Features:
Conductor Material: Copper or aluminum (depending on the specific variant)
Rated Voltage: Typically up to 0.6/1kV
Insulation Material: Cross-linked polyethylene (XLPE), providing excellent thermal and mechanical properties
Sheath Material: Polyvinyl chloride (PVC) or other weather-resistant materials
Temperature Range: Operating temperatures can typically reach up to 90°C
Applications:
Power distribution in industrial and commercial buildings
Connection to electrical equipment and machinery
Suitable for use in cable trays, ducts, and conduits
Outdoor applications where moisture and mechanical protection are required
Technical Specifications:
Conductor Structure: Stranded or solid copper/aluminum wire, depending on the application
Insulation Thickness: Varies according to voltage ratings and application requirements
Sheath Thickness: Designed to withstand environmental factors and mechanical stresses
Standards Compliance: Conforms to international standards (e.g., IEC) and local regulations
Advantages:
Durability: The XLPE insulation offers high resistance to thermal stress and chemical exposure.
Flexibility: The cable is designed for easy handling and installation in various environments.
Low Smoke and Halogen-Free Options: Some variants are available with low smoke and halogen-free properties, enhancing safety in case of fire.
