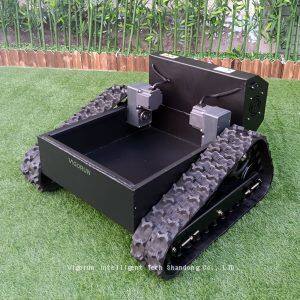

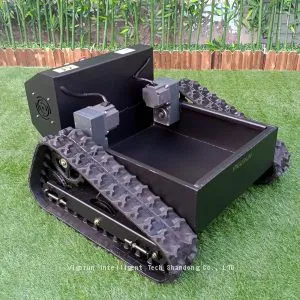

Remote Control Track Chassis (RTC100)

Description

Features:

1) Beautiful

The remote control chain chassis is beautiful in appearance. The fuselage is large, and the space reserved for development is sufficient.

2) Strong

The frame of the fuselage is reinforced to prevent deformation and displacement.

The track is 15cm wide and capable of working in muddy, rough, and sloping environments.

3) Mature technology

This product is modified on the basis of our very mature remote control lawn mower, an economical chassis product.

It adopts the mature walking motor controller on our remote control lawn mower, which has the characteristics of sensitive response and fast response speed.

The built-in smart chip can intelligently detect the current and heating conditions, which can ensure stable use all year round.

And it has a slow start function, the operation is smooth, and there will be no frustration when accelerating or decelerating suddenly.

4) Scalability

Equipped with a function expansion HUB, which can control additional 4 channels, it can easily control and expand other functions required by customers without professional remote control knowledge.

On the basis of our chassis, you can freely add other functional modules to create a new vehicle that meets your own needs.

Specification:

Walking Speed: 0~4km/h

Working Temperature: -20~55°

Min Ground Clearance: 150mm

Remote Control Range: 200m

Walking Motor

Motor Type: Brushless electric traction

Voltage / Power: 24V / 500W

Reduction Ratio：40:1

Rotating Speed: 75RPM

Output Torque: 37Nm

Rubber Track

Width: 150mm

Pitch: 60mm

Links: 32

Driving Wheel

Pitch: 60mm

Tooth Number: 11

Battery: 24V 20Ah

Remote Control Channel: 7

Extended Controllable Channel: 4

Rated Payload: 100kg

Truck Bed: 695*595*175mm

Machine Size: 960*930*580mm

Machine Weight: 110kg

Package Size: 1000*970*7250mm

Gross Weight: 140kg
