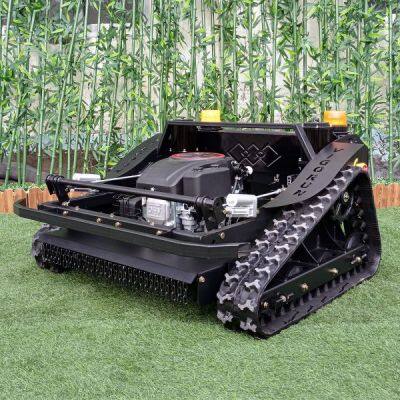

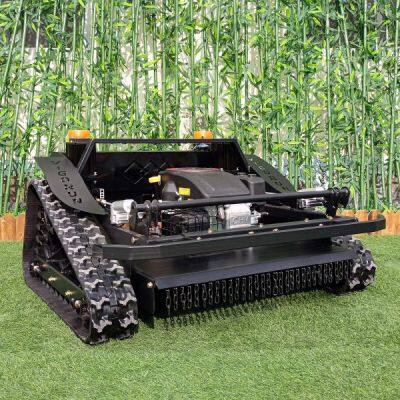

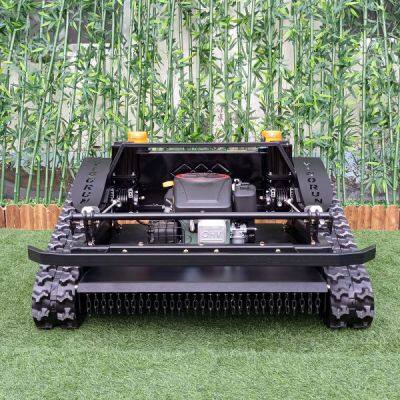

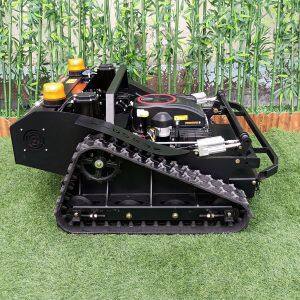

Rubber Track Remote Operated Slope Mower (VTLM800)

Features:

1) Security

Our remote-controlled lawnmower allows for safe operation on hazardous slopes by enabling remote control functionality.

This feature keeps staff away from the risk of rolling down the slope while still efficiently mowing the grass.

2) Worm gear & worm reducer

The walking motor is equipped with a worm gear and worm reducer.

The nature of this reducer design provides an inherent self-locking feature.

This means that even when power is cut off, the worm gear mechanism prevents the motor from moving due to the high friction generated between the worm and worm wheel.

As a result, the motor remains stationary, ensuring safety and preventing any unintended sliding or rolling on the slope.

3) Walking motor & reducer

Our mower features a powerful brushless 48V motor with a 110mm diameter coil, ensuring strong power output with minimal heat generation.

It is designed to support long hours of continuous operation.

Equipped with a large RV063 gearbox with a high reduction ratio, our slope mower guarantees strong torque at low speeds and exceptional climbing ability.

4) Oil pump & forced lubrication

The gasoline engine equipped with an oil pump is capable of forced lubrication, which is essential for reliable operation and preventing premature wear.

This system ensures that the engine receives a constant supply of pressurized oil for effective lubrication, particularly during the demanding conditions of driving on a slope.

5) High efficiency & labor savings

Our lawn mower, with a travel speed of up to 4 km/h and a cutting width of 800mm, offers high efficiency.

While requiring staff for remote control operation, the wide cutting width significantly reduces labor costs, making it a cost-effective solution.

Specification:

Model: VTLM800

Cutting Width: 800mm

Walking Speed: 0-4km/h

Working Degree: 0-60°

Adjustable Cutting Height: 25~120mm

Min Ground Clearance: 20mm

Remote Control Range: 200m

Engine

Brand: Loncin

Fuel Type: Gasoline

Engine Type: Single cylinder, air cooled, 4-stroke, OHV

Power / Emission: 9.2Kw / 452cc

Start Method: Electric start

Lubrication System: Splash + pressure

Emission Standard: Euro5/EPA

Fuel Tank: 7L

Engine Oil Capacity: 1.2L

Working Time: 4h (full fuel)

Walking Motor

Motor Type: Servo control

Voltage / Power: 48V / 1000W

Dynamo: 56V 4000W

Battery: 48V 20Ah

Machine Size: 1240*1170*660mm

Machine Weight: 235kg

Package Size: 1320*1220*810mm

Gross Weight: 290kg
