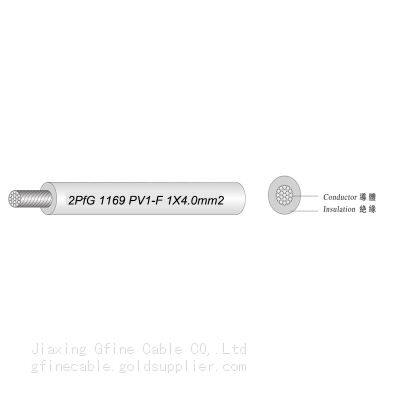

PV1-F Tinned Photovoltaic Cable
US$ 0.09 - 9.99
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
GFINE
Place of Origin:
China
Model Number:
PV1-F Tinned Photovoltaic Cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
14 days
Related Products
-
Nyy 3X1.5mm2 PVC Insulation Copper Conductor Cable WireUS$ 0.09 - 9.99MOQ: 1000 Meters -
SYV-50 RF Coaxial CableUS$ 0.09 - 9.99MOQ: 1000 Meters
-
SYV-75 RF Coaxial CableUS$ 0.09 - 9.99MOQ: 1000 Meters
-
SYWV-50 Series PE RF Coaxial CableUS$ 0.09 - 9.99MOQ: 1000 Meters
-
SYWV-75 Series PE RF Coaxial CableUS$ 0.09 - 9.99MOQ: 1000 Meters
Brand Name
GFINE
Place of Origin
China
Model Number
PV1-F Tinned Photovoltaic Cable
Type
Insulated
Application
Overhead
Insulation Material
Other, XLPE
Conductor Material
Copper
Conductor Type
Stranded
PRODUCT DESCRIPTION
1. Rated temperature:90ºC
2.Rated voltage:600V,1000V
3.According to:2Pfg 1169
4.Solid or Stranded,tinned or bare copper conductor
5.XLPE insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Environmental testing pass RoHS
8.Connecting wires for photovoltaic modules
PRODUCT PARAMETERS
| UL TYPE | Gauge(㎟) | Construction(no/mm) | Conductor outer diameter(mm) | Wire O.D(mm) | Max Cond. resistance（Ω/km ,20ºC） | Reference Weight (KG/KM) |
| PV1-F 1×1.5 | 1.5 | 30/0.25 | 1.50 | 4.98 | 13.7 | 40.69 |
| PV1-F 1×2.5 | 2.5 | 49/0.25 | 2.15 | 5.63 | 8.21 | 54.64 |
| PV1-F 1×4.0 | 4.0 | 56/0.30 | 2.90 | 6.38 | 5.09 | 73.36 |
| PV1-F 1×6.0 | 6.0 | 84/0.30 | 3.60 | 7.52 | 3.39 | 107.17 |
| PV1-F 1×10.0 | 10.0 | 84/0.40 | 4.90 | 8.82 | 1.95 | 161.6 |
| PV1-F 1×16.0 | 16.0 | 126/0.40 | 5.80 | 10.04 | 1.24 | 225.94 |
| PV1-F 1×25.0 | 25.0 | 196/0.40 | 7.40 | 12.52 | 0.795 | 348.51 |
| PV1-F 1×35.0 | 35.0 | 276/0.40 | 9.00 | 14.44 | 0.565 | 470.98 |
