TAEPO - Your Professional Fiber Distribution Box Manufacturer in China !
Descriptions
Fibe Distribution Box / FDB (TP-3221-12) is a rugged, low-cost, low-profile interconnect between the central office feed and the indoor/outdoor drop cables for multidwelling unit applications. It is also called multidwelling Unit (MDU).
It simplifies the FDB installation by reducing the materials, complexity and space required to turn up service. A single housing combines the functionality of a local convergence cabinet with an FDB terminal. The multilayer design allows installers to access only the components necessary for initial installation or subscriber turn-up.
Main Features
Both indoor and outdoor applications
Quick, easy and reliable connections
Craft-friendly with easy access
Maximum product lifetime and security
Closure structure with excellent sealing performance
Equipped with cable guide for tidy wiring
Bending radius greater than 40mm.
Robust long-term environmental stability

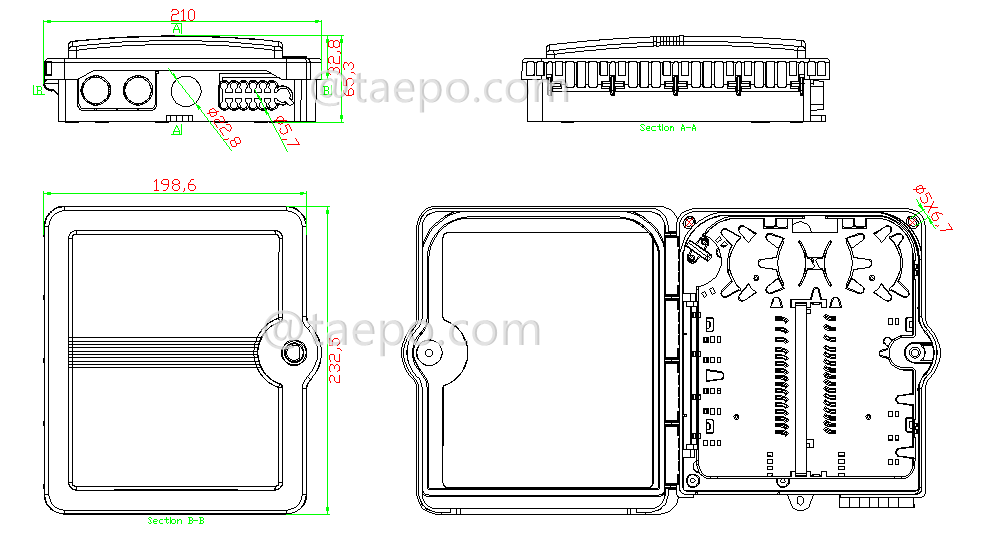

Schematic Diagrams

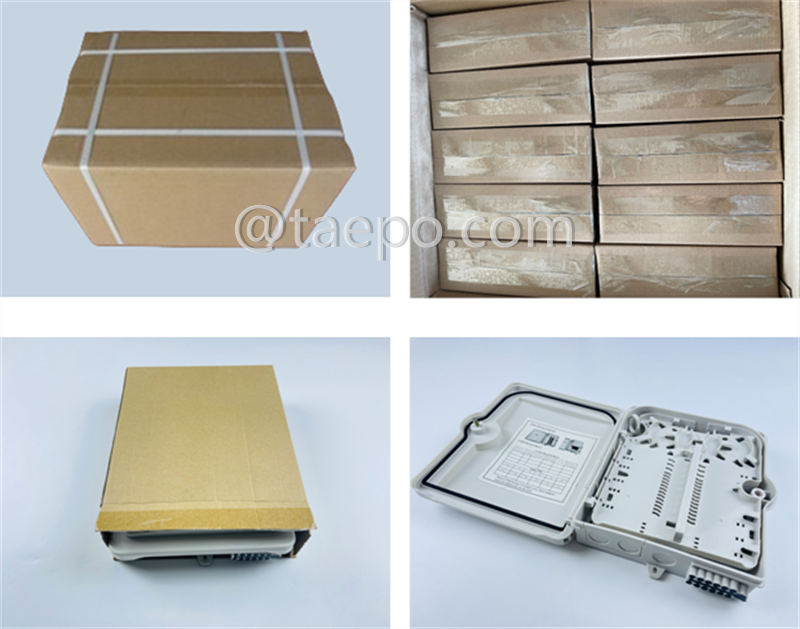

Packing Pictures
Order Data
| Item No | Descriptions |
| TP-3221-12 | Fiber distribution box (FDB), outdoor, SC, 12 fibers, plastic housing, 230x195x60mm, without adapters, pigtails |
