Free Sample Hybrid Outlet SC APC Duplex Wall Type Fiber Optic FacePlate for High Performance Networks and Fiber Optic Connection

    Service & Certificate

    Descriptions

A Fiber Optic Wall Outlet with SC APC Duplex Adapters is a device used in fiber optic networks to provide a connection point for fiber optic cables within a building or home. Here's a breakdown of its components and purpose:

Wall Outlet Design: It is designed to be mounted on a wall, typically in a convenient location within a building or home. This allows for easy access to fiber optic connections without the need for additional equipment or enclosures.

SC APC Duplex Adapters: The outlet includes SC (Subscriber Connector) APC (Angled Physical Contact) duplex adapters. SC connectors are commonly used in fiber optic networks due to their reliable performance and ease of use. The APC variant of the SC connector features an angled ferrule end face, which helps minimize back reflection and improve signal quality, particularly in high-performance applications.

Duplex Configuration: The duplex adapters accommodate two SC connectors, allowing for the termination of two separate fiber optic cables. This configuration is commonly used for duplex fiber optic connections, where one cable is designated for transmitting data (TX) and the other for receiving data (RX).

Fiber Optic Termination: The outlet provides a termination point for fiber optic cables, allowing them to be connected to network equipment or devices. This termination point is crucial for establishing reliable and high-speed fiber optic connections within a building or home.

Compatibility: The outlet is compatible with standard SC APC connectors, ensuring compatibility with a wide range of fiber optic cables and equipment. This makes it suitable for use in various fiber optic network installations.

In summary, a Fiber Optic Wall Outlet with SC APC Duplex Adapters provides a convenient and reliable connection point for fiber optic cables within a building or home, utilizing SC APC connectors to ensure optimal performance and compatibility with various fiber optic network installations.

Installation: Installation typically involves mounting the outlet on a wall and connecting it to the existing fiber optic infrastructure within the building. The duplex adapters allow for easy insertion and removal of SC connectors, facilitating quick and hassle-free installation.

Applications: Fiber optic wall outlets with SC APC duplex adapters are commonly used in FTTH (Fiber to the Home) installations, LAN (Local Area Network) setups, data centers, and other fiber optic network environments where reliable and high-speed data transmission is required.

    Main Features

The main features of a Fiber Optic Wall Outlet with SC APC Duplex Adapters typically include:

Wall-Mountable Design:

Designed for easy installation on walls, providing a tidy and organized appearance for fiber optic connections within homes or buildings.

SC APC Duplex Adapters:

SC (Subscriber Connector): Known for its reliable and straightforward connections in fiber optic networks.
APC (Angled Physical Contact): Features an angled end face to reduce back reflection and enhance signal quality.
Duplex Configuration: Supports two connections, facilitating bidirectional communication (one fiber for transmission and one for reception).

High-Performance Connectivity:

Ensures low insertion loss and high return loss, crucial for maintaining signal integrity and performance in fiber optic networks.
Ease of Installation and Maintenance:
The adapters allow for quick and secure connections and disconnections, making it easy for technicians to install and maintain fiber optic links.

Compact and Aesthetic Design:

The outlet is designed to be compact and visually unobtrusive, blending seamlessly with typical home or office environments.

Cable Management:

Includes features for organizing and securing fiber optic cables, reducing the risk of damage and maintaining a neat installation.

Protection and Durability:

Provides physical protection for fiber optic terminations, shielding them from dust, dirt, and potential physical damage.
The housing, typically made of durable plastic or metal, ensures long-lasting performance.
Compatibility:
Compatible with standard SC APC connectors, ensuring interoperability with a wide range of fiber optic cables and equipment.

Versatile Applications:

Suitable for various applications including FTTH (Fiber to the Home) installations, LAN (Local Area Network) setups, data centers, and other environments requiring reliable fiber optic connections.

These features collectively make the Fiber Optic Wall Outlet with SC APC Duplex Adapters a practical and efficient solution for managing and terminating fiber optic connections in both residential and commercial settings.

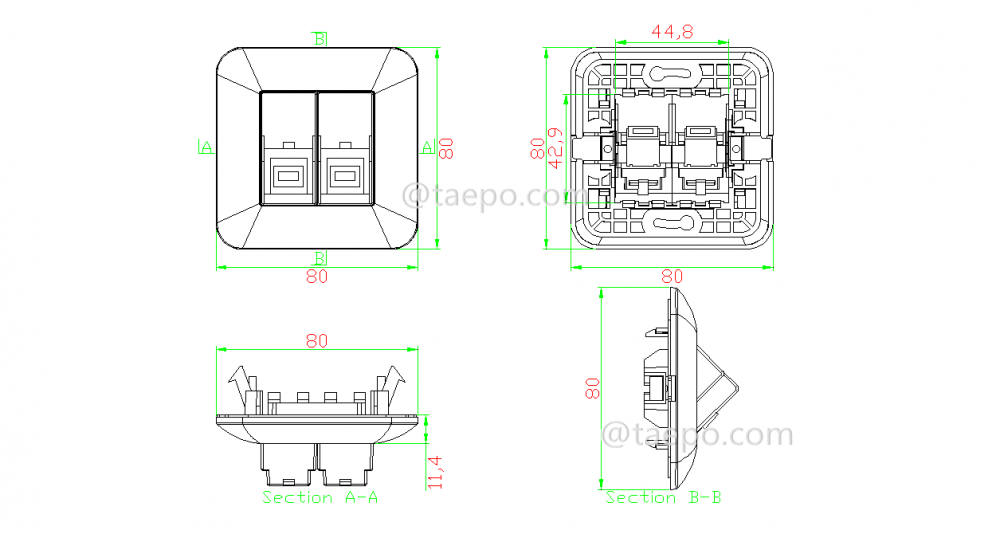

    Schematic Diagrams

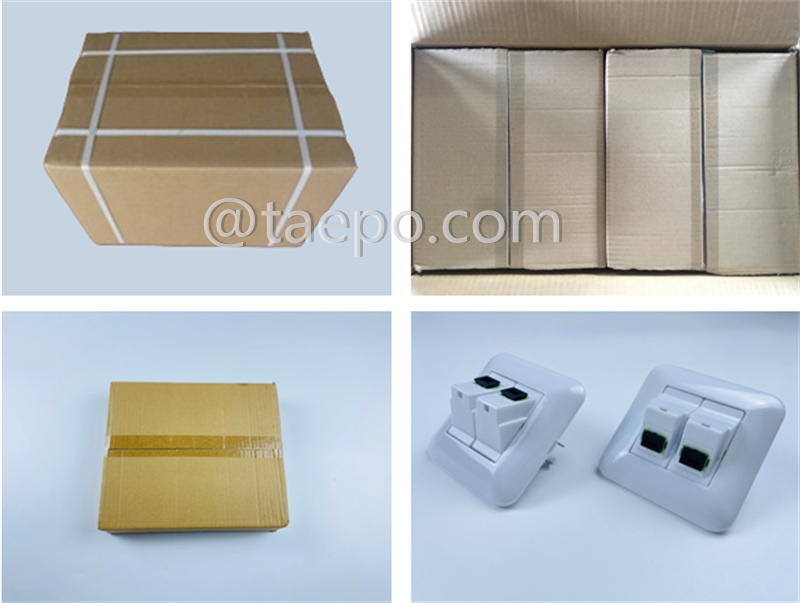

    Packing Pictures

    Order Data
