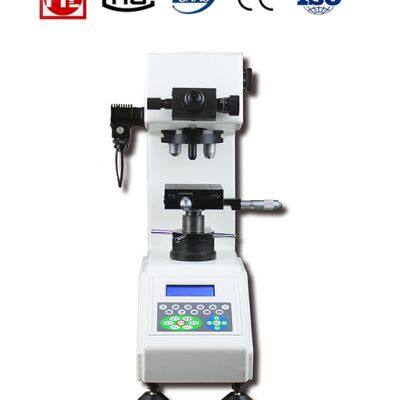

HV-1000 Micro hardness tester
- 100 Set / Sets per Month
You May Like
-
Model HV-50D Touch Screen Digital Display Vickers Hardness Tester
-
Model HBRV-187.5 Motorized Brinell, Rockwell & Vickers hardness tester
-
Model LDW-S Series Digital Display Touch Screen Electromechanical Universal Testing Machine
-
Model LDW Series Digital Display Touch Screen Electromechanical Universal Testing Machine
-
Model WDW Series Computer Control Electromechanical Universal Testing Machine
-
Model WDW-S Series Computer Control Electromechanical Universal Testing Machine
Product Description
Main Features:
Model HV-1000 Micro hardness tester is micro Vickers hardness of basic plan, the aircraft used LCD display screen, through the operation panel of hardness or HK each file ruler HV benchmark test time by choice, the lighting source can do promise regulation. Operation can be measured D1 eyepiece, D2 value after the direct input, hardness value in LCD display screen is directly on display.
Technical Specifications:
Model | HV-1000 |
Test force | 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N) |
Min measuring unit | 0.5µm |
Data output | LCD screen display |
Max Height of Specimen | 80mm |
Distance of Indenter to outer wall | 95mm |
X-Y Testing table | Dimension: 100*100mm Max mobile：25*25mm |
Conversion Scale | HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
Hardness measuring range | 8~2900HV |
method of testing force applied | Automatic（Loading, Dwell, Unloading） |
Test microscope magnification | 400X(Measuring)，100X（observation） |
Duration time | 0~60s |
Power supply | AC220V+5%，50-60Hz |
Overall Dimension | 405*290*480mm |
Net weight | About 25Kg |
Standard Accessories:
Item | Quantity | Item | Quantity |
Weight shaft | 1 | Weight | 6 |
Cross clamping testing table | 1 | Flat clamping testing table | 1 |
Filament clamping testing table | 1 | Thin Specimen Testing Table | 1 |
Screw driver | 2 | Level adjustment screw components | 4 |
Level bubble | 1 | Objective 10X | 1 |
Micro Vickers hardness block (High, Low) | Each 1 | Fuse(2A) | 2 |
Power cable | 1 | Product Certificate | |
Manual | 1 |
