Elliptical Tube Finned Gas Cooler of YDA in Dalian, China.

FOB Price

CNY 92000 - 150000 / Unit

1 Unit(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port DALIAN
Payment TermsL/C Cash
Delivery Detail50 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

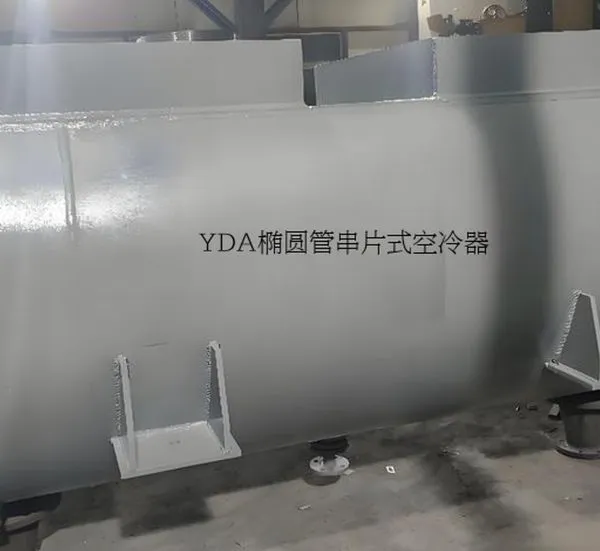

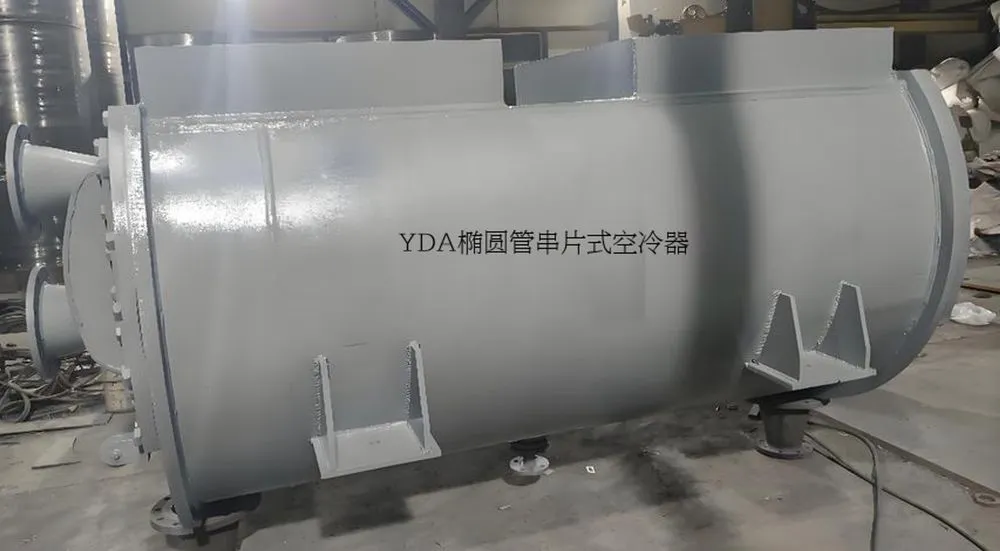

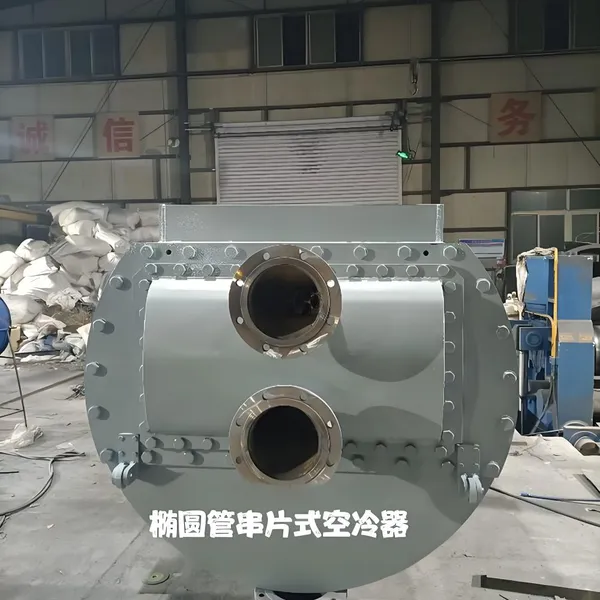

Elliptical Tube Finned Gas Cooler

The elliptical tube finned gas cooler is a highly efficient heat - exchange device. The following is an introduction to it:

Structural FeaturesBasic Composition

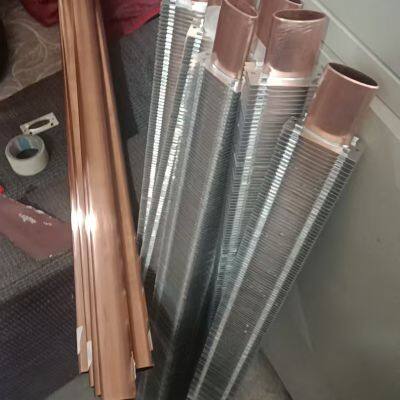

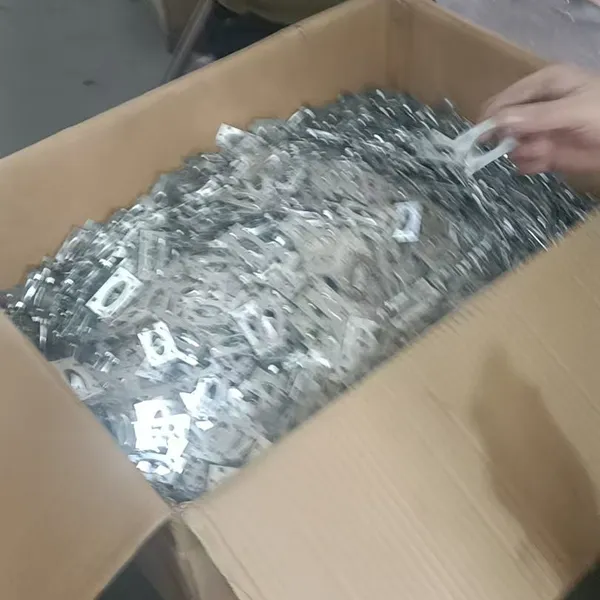

It uses elliptical tubes as the base tubes, with fins installed on the outer surface of the elliptical tubes. The fins can take various forms such as plain fins, interrupted fins, corrugated fins, and perforated fins.

Material Selection

The materials of the elliptical tubes and fins usually include stainless steel, steel - aluminum composite, copper, etc., which can be selected according to different usage environments and medium requirements.

Working PrincipleHeat Transfer Process

The gas to be cooled flows inside the elliptical tubes. The air outside the tubes passes through the fins through natural convection or forced convection by a fan. Due to the temperature difference between the gas and the air outside the tubes, heat is transferred from the high - temperature gas inside the tubes to the tube wall, and then to the air outside the tubes through the extended surface area of the fins, thus achieving the cooling of the gas.

Enhanced Heat Transfer Mechanism

Compared with circular tubes, the shape of the elliptical tubes can, to a certain extent, increase the flow velocity and turbulence degree of the gas inside the tubes, enhancing the convective heat transfer inside the tubes. At the same time, the presence of fins greatly increases the heat - dissipation area, improving the heat - dissipation efficiency.

Product AdvantagesHigh - Efficiency Heat Exchange

The combination of the unique shape of the elliptical tubes and the fins significantly improves the heat - exchange efficiency of the gas cooler, enabling it to quickly and effectively reduce the gas temperature.

Compact Design

Under the same heat - exchange area requirement, the volume of the elliptical tube finned gas cooler is relatively small, and the structure is more compact, which can save installation space.

Good Resistance Characteristics

The flow - channel design of the elliptical tubes results in relatively low resistance when the gas flows inside the tubes, reducing the energy consumption during gas transportation.

Strong Adaptability

Based on different gas properties, flow rates, temperatures, and usage environments, the materials, dimensions, and fin forms of the elliptical tubes and fins can be flexibly selected to meet the cooling requirements under various working conditions.

Application FieldsPower Industry

It is used in the cooling systems of equipment such as generators and transformers to cool the cooling gas and ensure that the equipment operates within the normal temperature range.

Chemical Industry

In the chemical production process, it is used to cool various process gases, such as the gas cooling in processes like ammonia synthesis and petroleum cracking.

Air - Conditioning and Refrigeration Systems

As components such as air coolers in air - conditioning systems or evaporators in refrigeration systems, it cools the air or refrigerants.

Gas Purification and Treatment

In the gas purification process, it pre - cools or post - cools the gas that needs to be purified, improving the purification effect and treatment efficiency.
