Battery Charger for Power Substation,National Grid,Batteries,Electric Bus,drone,lithium Battery

Battery Charger for Power Substation,National Grid,Batteries,Electric Bus,drone,lithium Battery thumbnail-1
Battery Charger for Power Substation,National Grid,Batteries,Electric Bus,drone,lithium Battery photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Greencisco
Place of Origin:
China
Type:
Other, AC to DC output
Contact Supplier Request Quote Chat Now
Guangdong Zhaoye Electric Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Greencisco
Place of Origin China
Type Other, AC to DC output
Output Power 801 - 1000KW
Output Type Multiple
Output Current 1A to 5000A
Output Frequency 50Hz/60Hz
Output Voltage 12V to 1000VDC
Input Voltage 220V/380V/400V/415V/440V/460V

Introduction

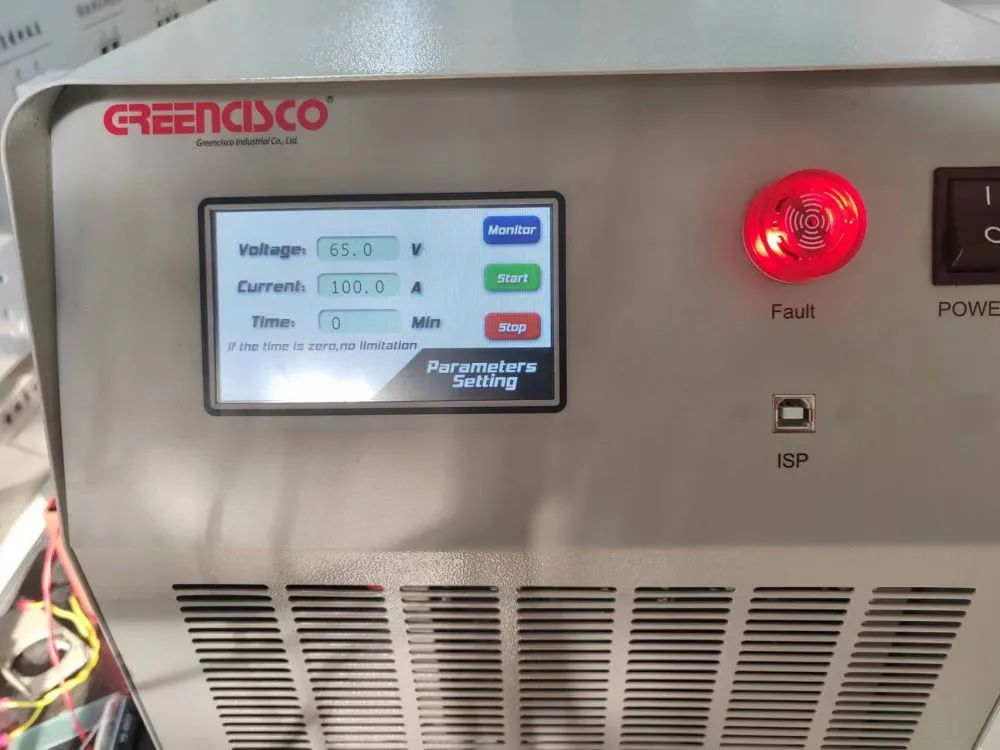

GY series intelligent battery charger adopts international advanced high frequency switch technology, with high efficiency, small volume, light weight, superior functions; The monitoring unit adopts centralized-distribution control manner, controlling risks to improve the reliability. Charger can provide both Chinese and English languages by clicking on the touch screen to set system parameters. With features of easy operation and convenient. Adopting intelligent operation management, multiple protections, greatly improve the stability and reliability of the system. Precisely manage of the charging voltage and current to ensure the batteries in the perfect condition and prolong the service life of the batteries. Adopting modular design, the system configures RS485 and CAN interfaces which can communicate with computers to monitor and control remotely according to user requirements, which is suitable for electric vehicle charging and all kinds of batteries.

Features

●Input voltage:110VAC/220VAC/240VAC/380VAC/400VAC/415VAC/480VAC

●Output voltage:24V/36V/48V/60V/72V/110V/125V/220V/240V/360V/480V/500V/600V/750V/800VDC can be available

●Output current:1A-1000A available

●With protection of overvoltage,undervoltage,overcurrent,overheat,phase missing,ect.

●Precision of voltage and current:≤±0.5%

●Ripple coefficient：≤ 0.5%

●Cooling: self-cooling or fan

●Working temperature：-20~+65℃

●Working mode: automatically or manually

●Communication interface: RS485,CAN2.0,RS232

Specification

Model

GY series of Charger
Input voltage(Vac)

220/380±15%
Maximum output voltage (Vdc) 60 80 100 150 200 400 650 750
Battery capacity(Ah)

100-1000Ah
Maximum charging current(A)

350

250

200

130

100

50

30

25
Maximum output capacity(KW)

5/10/15/20KW
Transfer efficiency

≧95%
Display

LCD
Communication

CAN/RS485/RS232,ect
Work temperature/humidity

-20-50℃,≦90%RH
Storage temperature/humidity

-30-60℃,≦90%RH
MTBF

MTBF≧100000H
Installation

Portable,rack mount
Dimension

294x522x311mm

294x522x311mm
Weight(KGS)

45

45


Product Tags: battery charger , charger , UPS , battery , nickel cadmium battery , lithium battery , solar battery
