Frequency Converters 50Hz,60Hz,400Hz for Navy,port,shipyard,oil,shipbuilding,shiprepair,airport

Frequency Converters 50Hz,60Hz,400Hz for Navy,port,shipyard,oil,shipbuilding,shiprepair,airport thumbnail-1
Frequency Converters 50Hz,60Hz,400Hz for Navy,port,shipyard,oil,shipbuilding,shiprepair,airport photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Greencisco
Place of Origin:
China
Model Number:
HFC5033 Series
Contact Supplier Request Quote Chat Now
Guangdong Zhaoye Electric Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Greencisco
Place of Origin China
Model Number HFC5033 Series
Type DC/AC Inverters
Size 3.5M to 12M
Weight 500KGS to 20T
Output Power 801 - 1000KW
Output Type Multiple
Output Frequency 50HZ/60HZ/400HZ for Navy,Shipyard,Shiprepair,Shipbuilding,Port,Dock,Radar,Gunship,Oil,Airport,factories
Output Voltage 220V/380V/400V/415V/440V/460V/690V/10KV/11KV/13.8KV/20KV
Input Voltage 220V/380V/400V/415V/440V/460V/690V/10KV/11KV/13.8KV/20KV

Application
Shipyards,port,docks,Navy,Airport,Oil companies,aviation, Lab, Factories, Telecommunication, Medical, IT, Motor Manufacturer, Scientific Research, EMI/EMC/safety test, QA/QC safety test, Electric machinery test,Superior power for laboratory,switching power test, AC fan test,transformer test, compressor test,motor test,air conditioner test,copier equipment test,computer/scanner test,SCR test, electrical appliances, electronic ballast test,400HZ converters for military diagnostic system,airport grounding stations, avionics,instruments,shipards,shiprepair,navy,shipbuilding,port,dock,oil company,ect.
Introduction
Our HFC50 series marine frequency converters are designed with voltage 415V/440V/480V/690V/10KV/11KV/13.8KV/50Hz/60Hz and widely used for Navy,port,shipyard,dock,airport,radar,warship, factories,Oil,missile boat,submarine, cement factory,ect.

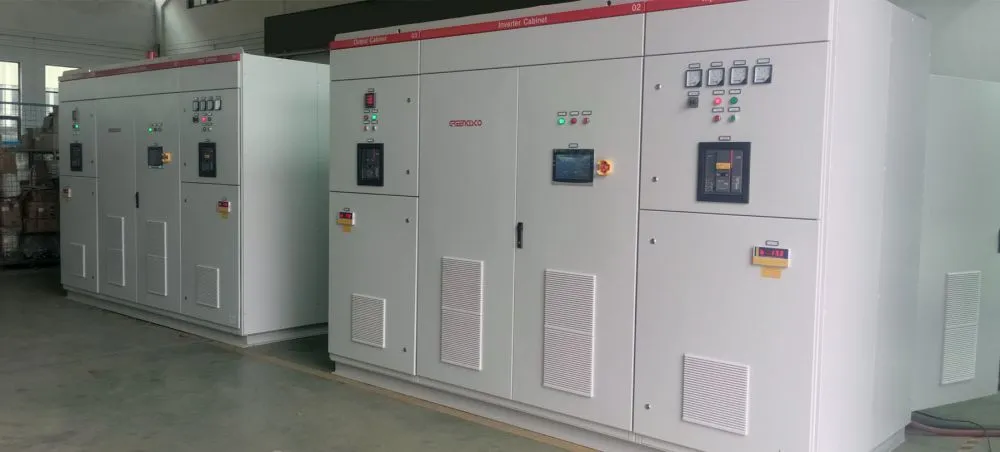

This series of products adopts the design of large and forced air cooling system, and the equipment cabinet is equipped with a detachable ABS resin dust-proof ventilation filter. The equipment protection level reaches IP32, which meets the design standards and specifications of marine equipment. This series of products adopts standard module structure design, which can flexibly carry out different equipment layout designs and a variety of single power supply power capacity designs according to customer requirements. The single power supply power capacity can reach 16 MVA. The series product adopts the following proprietary technologies and characteristics:
1.2 Adopting the special large force air cooling technology and dust protection technology of the cabinet, the protection level of the cabinet body reaches IP32 under the premise of ensuring sufficient heat dissipation in the cabinet. This ensures that the equipment is protected from the influence of dust and moisture in the worse operating environment and can operate safely and reliably at 100% full load for a long time.
1.4 The latest instantaneous voltage waveform control technology is adopted. Output voltage fluctuation ≤ 0.5 V; The effective value of the output voltage changes instantaneously(voltage temporary drop) when the load is suddenly added / subtracted, ≤ 3％ and returns to the rated output voltage value within 0.5 fundamental wave cycles.
The three-stage sinusoidal filtering technology of inverter output is adopted. The output impedance of sinusoidal filter is greatly reduced and the output power supply quality is improved.
1.6 The master-slave synchronization parallel technology is adopted. Realize the parallel operation of any multiple variable frequency converters power supply equipments without circulation.
The power switch device uses the fourth-generation SKIIP IPM high-power intelligent power module produced by Semikron in Germany; The main control chip uses DSP, the latest generation of TMS320 F28335-32-bit with floating-point motor control special digital signal processing functions; The driving transmission mode adopts 5MHZ fiber optic drive transmission; The inverter modulation method uses the latest SVPWM space vector pulse width modulation method.
Filter hoisting unit or 12 pulse rectifier Transformer: Using our own filter hoisting technology, filter the input harmonic current of shore variable frequency converter to reduce the harmonic interference to the input grid.
6 pulse or 12 pulse rectifier module components: Adopt diode rectifier module or Silicon controllable rectifier module + heat pipe radiator + German EBM shaft flow cooling fan.
Inverse unit: Adopt the fourth-generation SKIIP IPM intelligent power module from Germany+ Japan Nippon Chemi-con large-capacity electrolytic capacitor + flexible laminated mother row + large centrifugal air cooling fan. The drive and alarm signal of inverse unit are connected to the main control board through optical fiber, and the running information of the inverse unit is connected to the main control board through CAN bus, which greatly improves the control performance of the inverse unit, the display of operation information and the judgment and location of fault information.
Cross-flow side blowing cooling fan: Adopt the long-life cross-flow side hairdryer in China. The fan is installed in the cabinet door with IP32 detachable cleaning ABS resin ventilation filter mesh to inhale the indoor air outside the cabinet, and through the top of the cabinet with large air centrifugal fan emits outside the cabinet, The air circulation of the large amount of air required to be heat dissipation in the cabinet.
Specification

Model

HFC5033-200

HFC5033-250

HFC5033-300

HFC5033-400

HFC5033-500

HFC5033-600

HFC5033-800

HFC5033-1000

Capacity(KVA)

200

250

300

400

500

600

800

1000

Input Voltage

415V/440/690VAC±10%/10KV/13.8KV±10%,3phases,can be customized special voltage input according to customers' requirements

Frequency

50Hz±10%/60Hz±10%

Phase

Single phase or 3phases+3wires

Rectifier

6pluses or 12pluses+PWM technology

Power factor

6pluses>0.95; PWM>0.99

THDi

Output Voltage

440V/460V/480/690V/11KV/3Phases

Current

262A

328A

394A

525A

656A

787A

1050A

1312A

Capacity

200KVA

250KVA

300KVA

400KVA

500KVA

600KVA

800KVA

1000KVA

Phase

Single phase or 3phases+3wires

Voltage Stabilizing

Frequency

50Hz/60Hz/400Hz (precision:0.01)

Frequency stabilizing

Overload ability

125% for 1minute; 150% stop output;can withstand 3 times of instant impact

Total harmonic distortion of output voltage THDu

≤1％(no load or line load )

Three phase output voltage imbalance

Phase angle of three-phase output voltage

120°（±0.1°）

Efficiency

≥95％（100％load)

Inverter adjustment method

SVPWM space vector pulse width modulation method

Voltage stabilizing control

Instantaneous voltage waveform feedback control method

Inverter switch frequency

3.6KHZ～6KHZ

PWM Drive Transmission Mode

5MHZ fiber drive transmission

Master processor

150MHz

Display

LCD display or touch screen display

Cold insulation resistance

≥100MΩ

Noise

≤55dB（A）

Environment

Ambient temperature is -5 °C to +45 °C, and the relative humidity is 0 to 95 °C,Working for 24 hours at 100% full load,the temperature in the equipment cabin is in the range of 25 °C ± 1 °C

Protection Class

IP32 indoor type

Cooling

Forced air

Elevation

Dimension(LXWXH)
mm

1800*1500*2300

3400*1500*2300

Weight(KGS)

1000

1500

2000

3000

4500

5000

5500

600

Silver zinc battery for Navy,submarine,torpedo,airplane

Nickel cadmium battery for power substation,train,UPS,solar,motor,power plant,electricity

Nickel iron battery for UPS,solar,telecom

LiFePO4 lithium battery for solar,UPS,telecom

UPS with nickel cadmium battery for power substation;UPS with lithium battery for power substation,telecom;

IP55 outdoor UPS with water proof, work for -45C degree to +60C degree environment for railway,telecom,power substation; DC UPS with 48V/110V/125V/220VDC for power substations

110V/125V/220V battery chargers for power substations,plant,lithium battery,electricity,navy

110V/125V/220V inverters for power substations, power plant,
