TAEPO -Your Professional Telephone wire Insertion Tool Manufacturer in China.
Get the Competitive Price from TAEPO Now!
Description
TP-5908 impact insertion tool is available for all applications where a large number of single wires must be distributed or connected.
Advantage: no insulation removal, no use of screws, no soldering, extremely fast working on-site with integrated contact safety.
The Insertion Tool permits the gas-tight connection and trimming of the wire in just one single action. No stripping of wires or use of screws is required - a simple pressing of the tool is sufficient. A correctly terminated contact is indicated by an audible click.
The hook can be used to remove connected wires from the contact or 1-pair MDF protectors from the module. The hook is also designed for removing GDT arresters from the over-voltage protection magazine.
The blade head is used for connecting LSA krone module ( you can visit details here ) at one side and by changing the oppsite direction of the blade head for connecting STG pouyet module ( you can visit details here ).
Main Features
Insulation Displacement Connection (IDC)
Easy operation
Long life use
no insulation removal, no use of screws
no soldering - extremely fast working on-site with integrated contact safety.

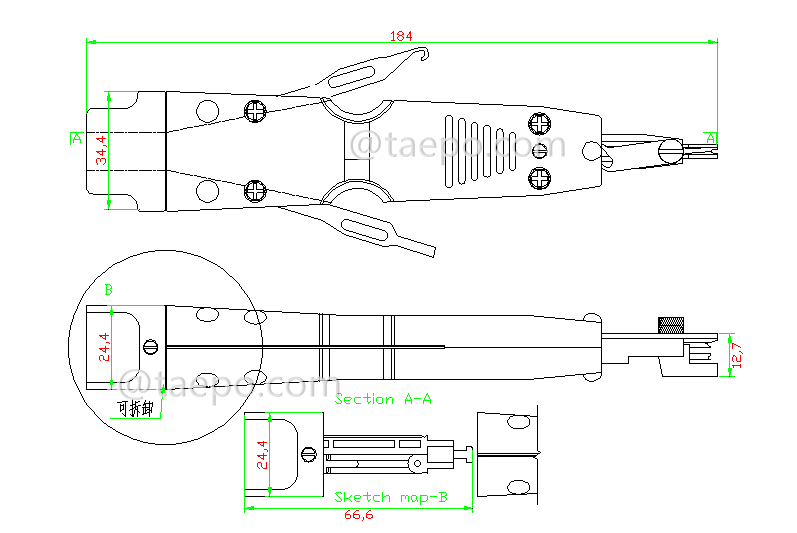

Schematic Diagrams

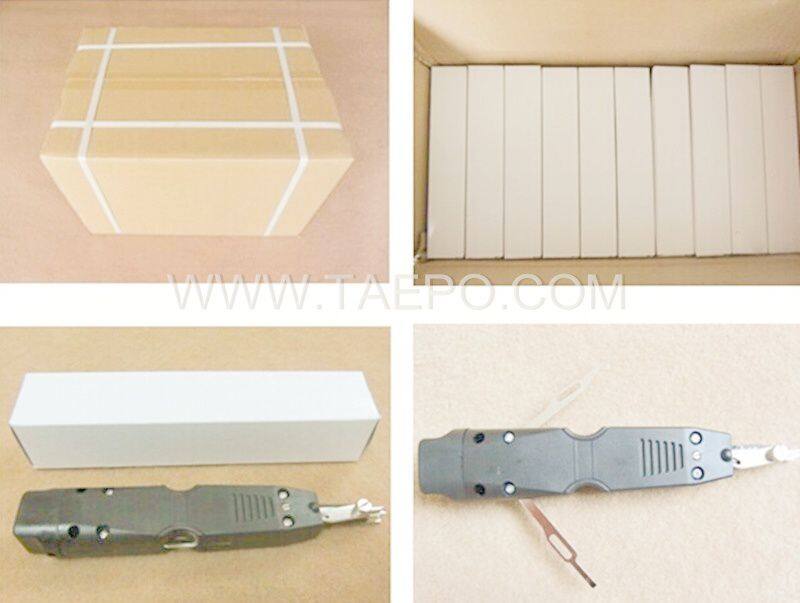

Packing Pictures
Order Data
| Item No | Descriptions |
| TP-5908 | IDC multi-purpose impact insertion tool for STG module and LSA module |
