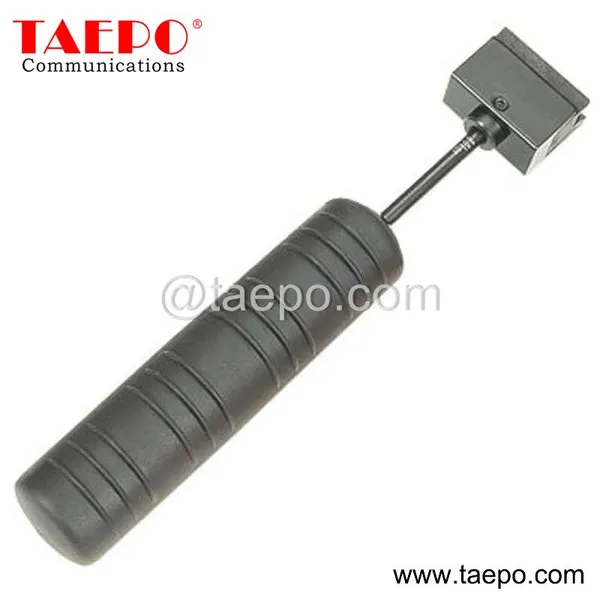

5 Pairs 110 Hand Punch Down Tool for Networking From China Factory TAEPO for Sale

    Descriptions

A 5-pairs 110 punch down tool is a hand tool used in telecommunications and networking for terminating wires in 110-style punch-down blocks, patch panels, and keystone jacks. This tool is designed to handle multiple wire pairs simultaneously, making it efficient for larger wiring jobs.

Here's a detailed description:
Punch Down Mechanism:
Spring-Loaded Blade: Features a spring-loaded blade that punches down the wires into the insulation displacement connectors (IDCs) and cuts off the excess wire.
Multi-Pair Capability: Specifically designed to punch down 5 pairs (10 wires) of wires at once, significantly speeding up the termination process compared to single-pair tools.
Blades:
Replaceable Blades: The blades can often be replaced when they become dull, ensuring longevity of the tool.
Two-Sided Blade: One side of the blade punches down and cuts the wire, while the other side just punches down the wire without cutting, useful for daisy-chaining connections.
Handle:
Ergonomic Design: Typically features an ergonomic handle with a non-slip grip for comfortable use over extended periods.
Durability: Made from high-quality materials to withstand frequent use in professional settings.
Adjustment:
Impact Adjustment: Some models offer adjustable impact settings to control the force applied, ensuring proper seating of wires without damaging them.

    Main Features

A 5-pair 110 network hand punch down tool is designed for efficiently terminating and inserting wires into 110-type wiring blocks and patch panels.

Here are the main features of such a tool:

• 5-Pair Punching Capability: The tool can simultaneously terminate up to five pairs of wires, making it highly efficient for large wiring projects.

• Precision Blades: Equipped with precision blades to ensure clean, accurate cuts and terminations, which helps in maintaining the integrity of the network connections.

• Replaceable Blades: Many models feature replaceable blades, allowing for easy maintenance and extended tool life.

• Ergonomic Design: The tool often has an ergonomic handle to reduce hand fatigue during extensive use, providing a comfortable grip.

• Impact Mechanism: Includes an impact mechanism to provide consistent and reliable wire termination, reducing the risk of incomplete or loose connections.

• Color-Coded Punching: Some tools have color-coded punching heads or guides to help quickly identify and match wire pairs, improving efficiency and reducing errors.

• Durable Construction: Made from durable materials like high-impact plastic and steel to withstand frequent use and harsh working conditions.

• Adjustable Impact Force: Some models offer adjustable impact force settings to accommodate different types of wires and blocks, ensuring optimal performance.

• Integrated Hook and Spudger: Many tools include an integrated hook and spudger for easy wire manipulation and removal.

• Compact Size: Designed to be compact and lightweight, making it easy to carry and use in tight spaces.

  These features make a 5-pair 110 network hand punch down tool an essential tool for network technicians and installers working on large-scale cabling projects.

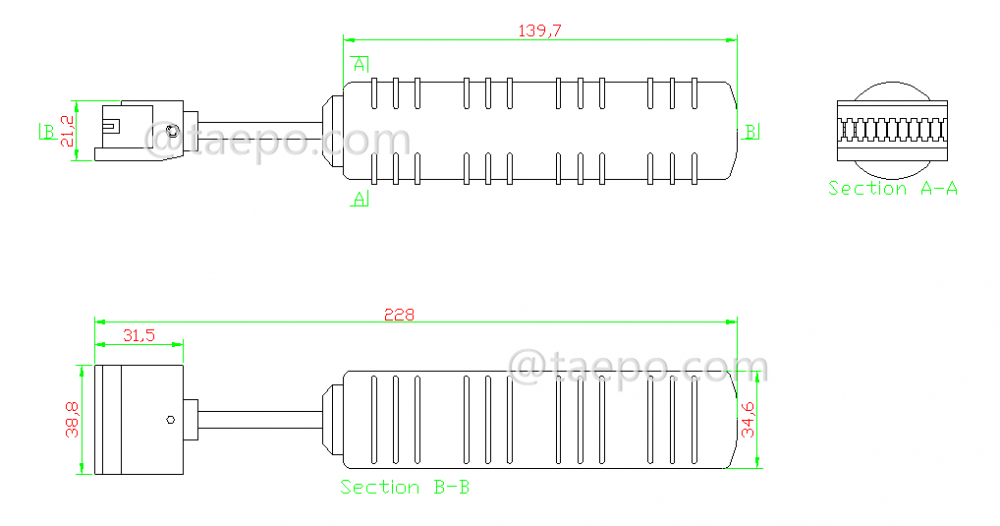

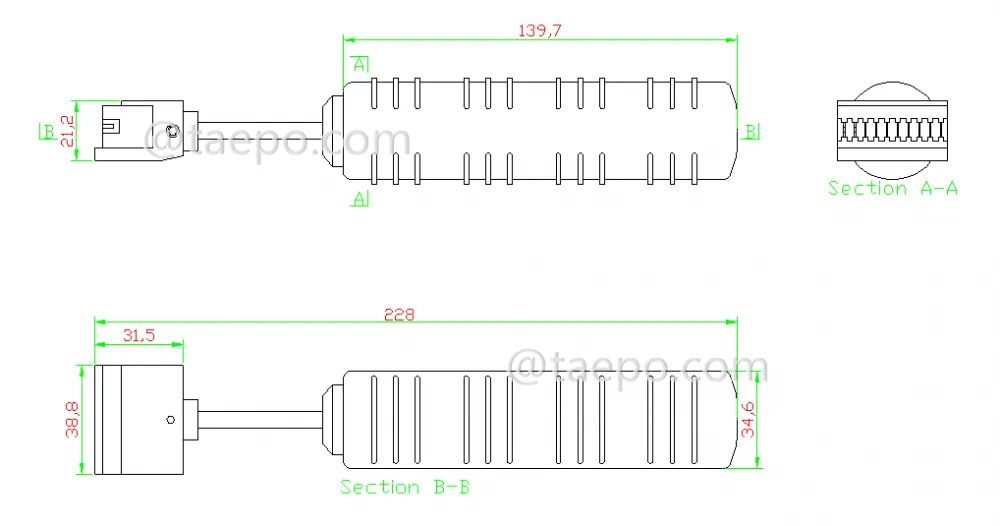

    Schematic Diagrams

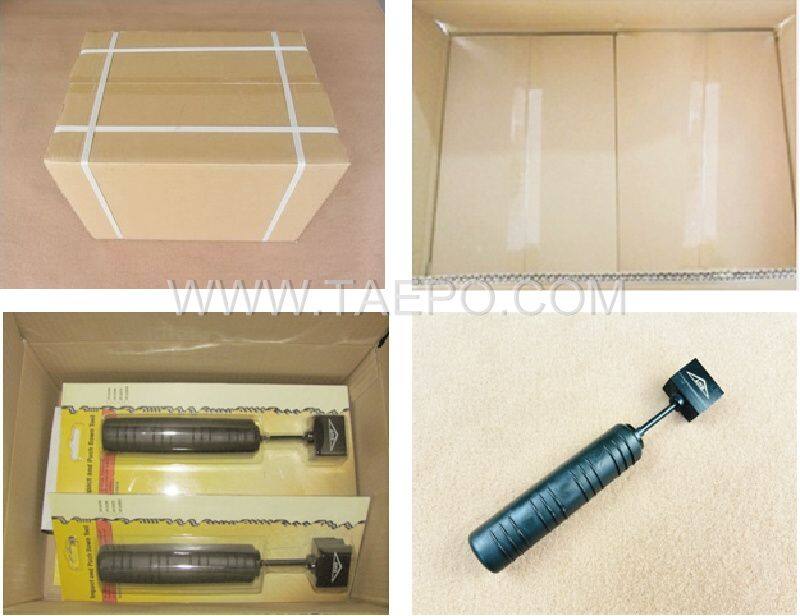

    Packing Pictures

    Order Data
