Super Duplex Stainless Steel Wire Mesh Weaving Machines
- TIANJIN PORT, CHINA
- T/T
- 60 days
You May Like
-
Lanying wire mesh machine
-
hebei lanying technology wire mesh machine
-
Five heddle weave wire mesh machine five shaft wire mesh machine
-
Shuttleless PLC wire mesh weaving machine loom for India market
-
LANYING woven wire mesh machine SG130/130-1JD for industrial woven wire cloth fabric weaving
-
2mesh woven wire mesh weaving machine
Product Details
| Brand Name | LANYING | Place of Origin | China | |
| Model Number | SG130 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
lanyingmachine

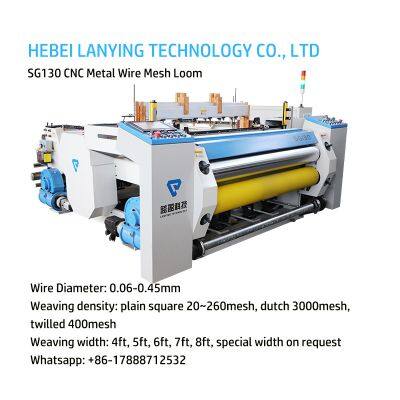

SG130 Series Weaving Machine
SG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh. The application is widely and precision is high, noise is low, weave patterns is diversity, maintenance is easy.
SG130 Standard series is suitable for normal fabric weaving, SG130S is specially designed to weave medium heavy mesh with big wire diameter such as 60*0.19mm, 20*0.4mm, etc, the weaving speed could reach up to 60-100RPM (depends on weaving width and specs).
Wire diameter | 0.06-0.45mm | |||
Weaving density | Plain weave square hole 20-260mesh/inch; twilled weave up to 400mesh/inch twilled weave upto 600mesh/inch | |||
Nominal width (special width on request) | 1.3m | 1.6m | 2m | 2.5m |
Speed(the actual speed depends on the weaving specs and width) | 80-120RPM | 80-100RPM | 65-80RPM | 60-80RPM |
Total power | 10.5KW | 10.5KW | 12KW | 12KW |
Size (L*W*H) mm | 2750X3300X1500 | 2750X3600X1500 | 2750X4000X1500 | 2750X4500X1500 |
Weight | 4500KG | 5500KG | 6000KG | 6500KG |
Basic tension | 20000 N/m | |||
Product Series | SG100 Series | SG130 Series | SG160 Series | SG180 Series |
Standard weaving width (Special width on request)
| 1300mm 1600mm 2000mm | 1300mm 1600mm 2000mm 2500mm 3000mm | 1300mm 1600mm 2000mm 2500mm 3000mm | 1300mm 1600mm 2000mm 2500mm 3000mm 4000mm |
Wire diameter range | 0.016-0.3mm | 0.06-0.45mm | 0.1-0.7mm | 0.2-2.1mm |
Plain weave square hole (mesh/inch) | 40-400 | 20-260 | 10-100 | 6-60 |
Twill weave (mesh/inch) | ≤600 | ≤400 | ≤350 | ≤260 |
Wire material | Stainless steel, iron, copper, aluminum, platinum, nickel, polyester | Stainless steel, iron, copper, aluminum, | Stainless steel, iron, copper, aluminum, | Stainless steel, iron,copper, aluminum, |
Speed | 100 rpm | 100 rpm | 50-70 rpm | 35-50 rpm |
Basic tension | 15000 N/m | 20000 N/m | 40000 N/m | 60000 N/m |
-
SG130/250-1JD Standard metal wire mesh weaving machineSG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh. The application is widely and precision is high, noise is low, weave patterns is diversity, maintenance is easy.
-
SG130/300-1JD Standard metal wire mesh weaving machineSG130/220-1JD Standard metal wire mesh weaving machine
-
SG130/220-1JD Standard metal wire mesh weaving machineSG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh.
-
SG130/210-1JD Standard metal wire mesh weaving machineSG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh.
-
SG130/200-1JD Standard metal wire mesh weaving machineSG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh.
-
SG130/160-1JD Standard metal wire mesh weaving machineSG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh.
-
SG130/130-1JD Standard metal wire mesh weaving machineSG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh.
