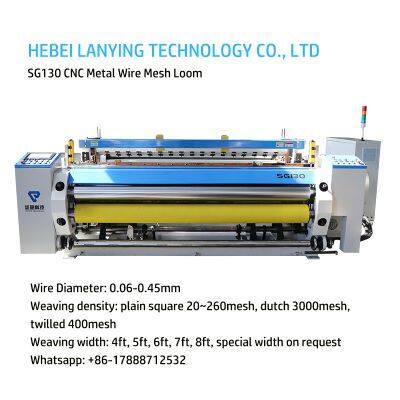

Lanying Wire Mesh Machine

Lanying Wire Mesh Machine photo-1
Lanying Wire Mesh Machine photo-2
Lanying Wire Mesh Machine photo-3
Lanying Wire Mesh Machine photo-4
Lanying Wire Mesh Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Lanying
Place of Origin:
China
Model Number:
SG130/130-1JD
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN PORT, CHINA
Delivery Detail:
30 days
Brand Name Lanying
Place of Origin China
Model Number SG130/130-1JD
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Weight 4500kgs
Dimension(L*W*H) 2700*3300*1960
Production Capacity 8~20meter per hour
Application wire mesh weaving
Condition New
Power(W) 8.5kw
Type Dobby Weaving Machine

Lanying machine - a professional manufacturer of wire mesh machine
We produce all kinds of cnc wire mesh machines that widely used in wire cloth weaving, it could weave carbon steel mesh, stainless steel mesh, nickel wire mesh, silver wiremesh, titanium mesh, alloy mesh, platinum mesh, etc in plain, twill, dutch, reverse dutch twill, satin five heddle mesh, 3 heddle mesh, special pattern, etc..
We only make high quality wire mesh machines, if any inquiry, welcome to contact our sales: Miss Bonnie Chen bonnie@wiremeshloom.com phone/whatsapp: +86-17888712532

Product Series

SG100 Series

SG130 Series

SG160 Series

SG180 Series

Standard weaving width

(Special width on request)



1300mm

1600mm

2000mm

1300mm

1600mm

2000mm

2500mm

3000mm

1300mm

1600mm

2000mm

2500mm

3000mm

1300mm

1600mm

2000mm

2500mm

3000mm

4000mm

Wire diameter range

0.016-0.3mm

0.06-0.45mm

0.1-0.7mm

0.2-2.1mm

Plain weave square hole (mesh/inch)

40-400

20-260

10-100

6-60

Twill weave (mesh/inch)

≤600

≤400

≤350

≤260

Wire material

Stainless steel, iron, copper, aluminum, platinum, nickel, polyester

Stainless steel, iron, copper, aluminum,
platinum, alloy, nickel, polyester

Stainless steel, iron, copper, aluminum,
platinum,alloy, nickel, polyester

Stainless steel, iron,copper,

aluminum,
alloy, nickel, polyester

Speed
(the actual speed depends on the weaving width and specs)

100 rpm
(max 120rpm)

100 rpm
(max120rpm)

50-70 rpm

35-50 rpm

Basic tension

15000 N/m

20000 N/m

40000 N/m

60000 N/m
