Basic parameters

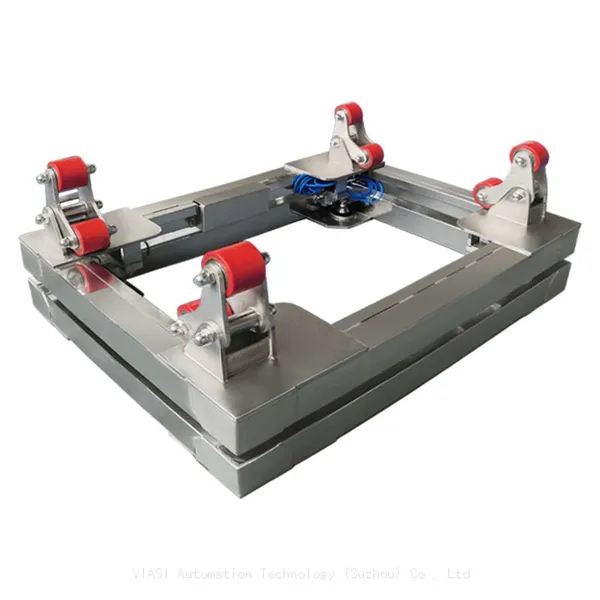

Explosion-proof cylinder electronic scale is a bench scale designed for weighing cylindrical cylinders such as cylinders and gas cylinders. The whole scale is composed of the upper and lower double frame structure, and the upper scale frame is designed with a wheel clamp bracket device specially designed for clamping the cylinder, which is convenient for fixing and protecting the cylinder from colliding with the scale body when measuring the bottled items.
It is equipped with four special explosion-proof high-precision tumbler carbon steel sensors and explosion-proof junction boxes.
The whole scale is made of carbon steel or stainless steel, with a thickened anti-corrosion coating process on the surface and anti-static treatment.
It is used in the weighing and measuring occasions used in the gas or liquid bottle filling and discharging environment such as ammonia and ammonia, and is placed on a flat table.
The scale body can be used for measurement by docking with the optional weighing display. Explosion-proof mode is available in intrinsically safe and flameproof versions.
Applicable occasions:-.
This series of cylinder scales are suitable for chemical, tap water, textile dyeing and printing, gas filling production and manufacturing industries, suitable for use in occasions with higher requirements for explosion-proof, special requirements for explosion-proof, and at the same time have higher requirements for waterproof and anti-corrosion, it is recommended to buy stainless steel cylinder scales. It is suitable for use in gas cylinders and gases (xenon has serious corrosiveness to all steel products, and this scale can effectively prevent the corrosion of chlorine on the scale body by thickening and spraying plastic and other anti-corrosion treatments)
、Product features:
Carbon steel structure weighing body, surface acid baking treatment, thickened spraying anti-corrosion coating process, can greatly reduce the corrosion of the scale body when the liquid is diarrhea; The surface of the stainless steel structure scale body is polished and brushed. The stressed part adopts nylon pulley (cylinder bracket) and composite spring buffer device, which can effectively prevent the impact of the cylinder on the scale body and reduce the risk of cylinder impact, and the bracket adopts the "V" shaped guide device that can be automatically adjusted according to the shape and size of the cylinder that coincides with the cylinder, adopts the upper and lower double platform design, and is equipped with a tumbler sensor, which has the function of automatic reset and anti-vibration. Anti-deviation, anti-torsion, strong overload capacity, high precision, explosion-proof sensor and explosion-proof junction box are standard.
The lower weighing body is supported by an adjusting screw, which is convenient for the parallel adjustment of the weighing body in different positions.
For special needs, an additional water storage tray can be installed.
Product Highlights:
All carbon steel structure, surface acid baking treatment, and anti-static treatment, equipped with explosion-proof special sensors and junction boxes, explosion-proof effect is especially suitable for chlorine cylinder gas liquid occasions, acid baking treatment coating effectively isolate corrosion. A number of humanized designs, such as automatic clamping of cylinders, automatic reset, automatic balancing device, anti-collision device, etc
Specifications:
Readiness Level: Sichuan I
Product Model: SH-GP-EX
Capacity: 500 kg 1T2T
Table size: 0.8mx1.2m
Operating temperature: -20°C°C~+60°C for platform and sensor
Weighing indicator -10°C°C~+45°CC
Degree of protection IP67
Explosion-proof class: intrinsically safe Ex ib lIC T4 Gb or flameproof: Ex d IIB T6 Gb
Optional features
@Material selection: Standard carbon steel, 304 stainless steel, 316L stainless steel
@Large screen output interface: Serial RS232 output
@Serial communication interface: Serial RS232/RS485 mode, baud rate: 600~9600 optional
@Upper and lower limit alarm function, it can be connected to an explosion-proof alarm lamp
@Relay output: 4CH Solid State Relay (AC250V 3A)
@Switching inputs: Empty contact or active contact, optoelectronic isolation, isolation voltage 2500V
@ analog output: isolated 0-20mA/4 -20mA/0-10V (three modes to choose -)
@Expandable multi-class industrial bus interfaces: Modbus RTU/TCP, Profibus-DP, Ethernet connection
