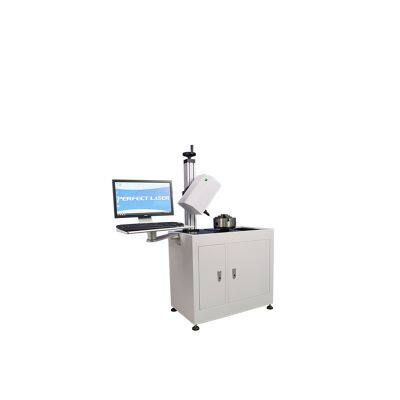

Help CenterMultifunctional Horizontal Rotary Metal Flange Dot Pin Pneumatic Marking Machine With Computer
Related Products
-
LCD Control Multi-functional Desktop and Portable Handheld Dot Peen Marking MachineUS$ 1800 - 1900MOQ: 1 Unit -
Nameplate Embossing Imprinter Machine With Stereoscopic Sensation CharacterUS$ 2700 - 2900MOQ: 1 Unit
-
150X100 LCD Control Vin Number Chassis Handheld Metal Dot Peen Marking Engraving MachineUS$ 1300 - 1500MOQ: 1 Unit
-
LCD Control Flat and Rotary Metal Dot Peen Marking Engraving MachineUS$ 1500 - 1600MOQ: 1 Unit
-
150X100mm Flat Metal Nameplate Dot Peen Marking Engraving MachineUS$ 1100 - 1200MOQ: 1 Unit
Features:
1. Perfect Laser dot peen machine comes with a computer, using WINDOWS operating system, horizontal rotary pneumatic marking machine can run in Windows 98/2000/XP environment, wide practicability.
2. The dot peen machine with powerful software editing function, can arbitrarily arrange the required characters and graphics, compatible with AUTOCAD drawing software.
3. This dot peen machine adopts user-friendly design, simplified operation, which is conducive to improving work efficiency.
4. The pneumatic engraving machine can automatically print numbers,Chinese characters, special characters, date, serial number, VIN code, etc., It is various formats for users to choose.
5. The rotation system is connected to the computer, and the marking needle rotates synchronously. Two kinds of rotation modes can be selected, namely two-dimensional rotation and three-dimensional rotation.
6. The pneumatic engraving machine adopts rotary control system, which can both realize plane marking and marking along the circumference of the work piece.
Technical Data:
Product Name |
Multifunctional Horizontal Rotary Metal Flange Dot Pin Pneumatic Marking Machine With Computer |
Model |
PEQD-250G |
Working Area |
Standard: 150mm×100mm Optional: 200mm×100mm |
Marking Depth |
0.01～2mm |
Marking Speed |
≤50mm/second (for characters height of 3mm or 3-4 numbers /second) |
Lifting Range |
0-300mm |
Chuck Diameter |
Standard: 200mm; Optional: 125mm/160mm/300mm |
Repeated Accuracy |
0.01mm |
Pin Hardness |
HRC92 |
Power Supply |
220V±10％, 50Hz |
Air Pressure |
0.2-0.6 Mpa |
Machine Power |
≤400 W |
Working Environment |
-5～40 ℃ |
Machine Weight |
225kgs |
Dimensions(L×W×H) |
102×62×153cm |
Packing Size |
107×67×166cm |
