Features:

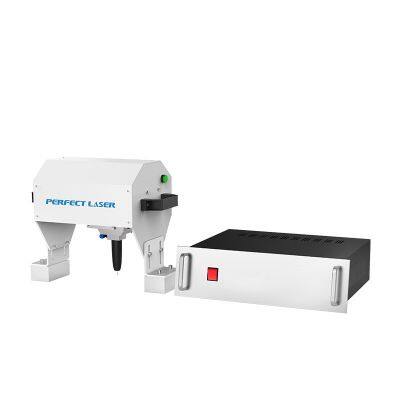

1.Portable dot peen marking machine is portable, so it is suitable for marking on heavy objects with large size and is not easy to move.
2. Portable metal marking machine with 2 separate-body design, convenient operation.
3. Portable dot peen marking machine is controlled by computer, Perfect Laser’s professional marking software has a wide application and can operate under Window and XP system. It is very easy to use.
4.Portable dot peen marking machine has a very powerful editing function, and can automatically identify various letters and numbers, such as VIN code, engine number, serial number and so on.
5. Supports AutoCAD and CorelDraw logos and graphics designed in DXF format.
6. Supports multiple fonts including CHRMG fonts in Borland, TTFAuto in Windows, and SHX fonts in CAD.
7. With the function of automatically saving marked content, it can prevent damage caused by shutdown or accidental power failure.
Technical Data:
Description | Dot Peen Marking Machine | ||
Model | PEQD-100 | PEQD-025 | PEQD-030 |
Machine Type | Flat Marking | Flat + Rotary Marking | Portable Type |
Rotary Function | No | Yes | No |
Working Area | 150×100mm/300×200mm/ 400×300mm/200×100mm | 135×20mm/125×20 mm/90×20mm/150× 100mm/200×100mm | |
Chuck Diameter (Standard) | 125mm | ||
Chuck Diameter (Optional) | 160mm/200mm /300mm | ||
Marking Accuracy | 0.01 mm | ||
Marking Depth | 0.01~2mm | ||
Marking Speed | ≤50mm/s (for 3mm letter height/ 3-4 numbers/second) | ||
Lifting Range | 0-300 mm | ||
Machine Power | ≤400 W | ||
Pin Hardness | HRA 92 | ||
Power Supply | 220V±10％, 50HZ | ||
Air Pressure | 0.2-0.6 Mpa | ||
Working Environment | -5～40 ℃ | ||
Whole Machine Weight | 60 Kg | 70 kg | 25 kg |
