Cable Wire Two-axis Shredder Wood Shredding Machine

Cable Wire Two-axis Shredder Wood Shredding Machine photo-1
Cable Wire Two-axis Shredder Wood Shredding Machine photo-2

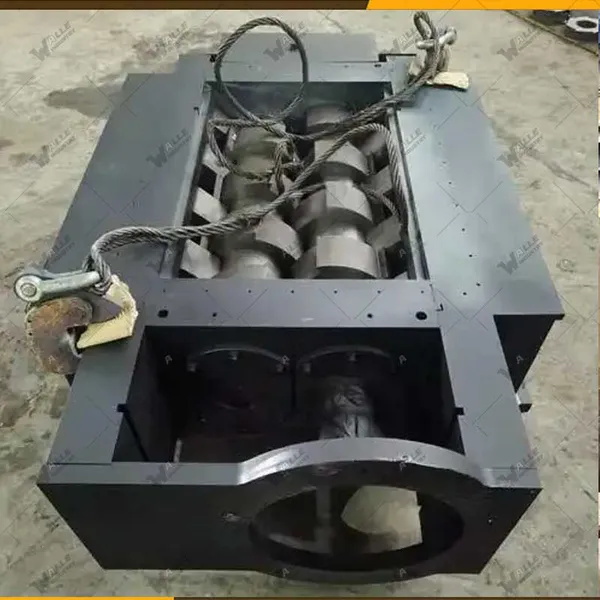

Cable Wire Two-axis Shredder Wood Shredding Machine photo-3

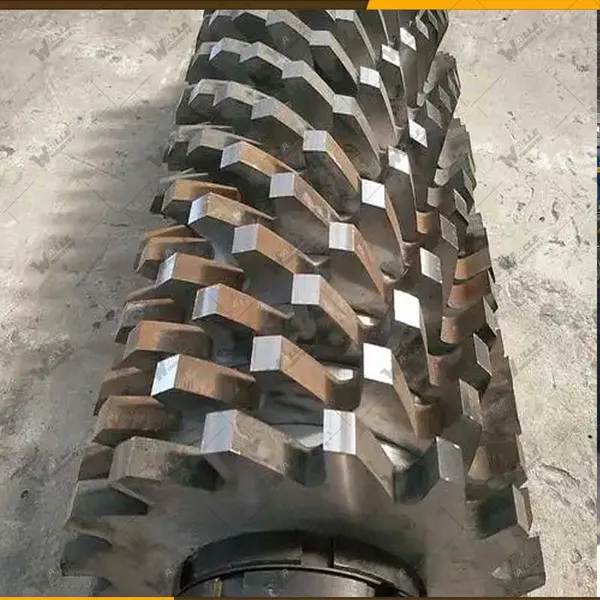

Cable Wire Two-axis Shredder Wood Shredding Machine photo-4
Cable Wire Two-axis Shredder Wood Shredding Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT
Delivery Detail:
15 days
Place of Origin China
After-sales Service Provided Engineers available to service machinery overseas
Metal scrap shredder
Appliance:
1.Tile scrap
2. car shell
3. waste appliance
4. Bike
5. motor  scrap
6. NGS tank
7.Engine block
8. Aluminum bale

9. beverage cans

Working Principle :
WL serious metal double shaft shredder  is mainly composed of a moving knife roller (spindle + blade), stator-Cutter, a carrying box, box support, a feeding system, a hydraulic push system, a power system, and an electrical control system. Due to its low speed and high torque, it is available for harder or bulkier materials, such as wood, tires, and waste appliances.

Our double shaft shredders have the following features:
1-The blade is made of the high alloy H13 9SiCr, which has high strength and toughness and is difficult to break.
2-The cutter of the K-rotor and D-rotor are made of H13, and the main body is made of killed steel.
3-The main electrical components are manufactured by well-known companies.
4-Automatic protection is designed to avoid machine overload and jamming.
5-High torque, low speed, low noise, and high efficiency.
6. Human's engeering and scientific design.


Type
power
Cutter Qty PCS
reducer
chamber mm
feeding port
overall size mm
weight T
capacity (T/h)
WL-800
15kw*2
30
400
600*388
1000*766
1820*800*1930
2.1
0.5-0.8
WL-1000
22kw*2
20
500
640*588
1170*990
3260*1300*2370
3.5
1-1.5
WL-1200
37kw*2
30
355
1200*788
1600*1200
4700*2000*2700
8
2.5-3
WL-1500
55kw*2
30
400
1500*1188
1900*1450
5000*2200*2900
18
8-10.
WL-1800
75KW*2
36
400
1800*1188
2300*1450
5300*2150*3000
20
12-15.
WL-2000
90kw*2
24
450
2000*1188
2300*1500
5400*2150*3000
25
20-25.
WL-2200
110kw*2
28
240
2200*1578
3100*2500
6200*2700*3500
33
26-30
WL-2400
132kw*2
24
240
2400*1678
3200*2600
7300*2800*3800
38
30-35.
WL-2800
185kw*2
28
260
2800*2000
3700*3000
7800*2800*3800
45
35-40

12345
