Product Description

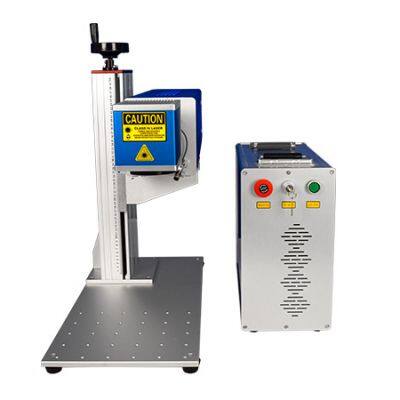

This desktop co2 laser marking machine uses CO2 laser beam, which has stable performance,more precise and smooth marking.It equipped with newer generation of professional and highly compatible laser marking system.
Support multiple formats marking, with adjustable handle and scale, can be more accurate control of marking materials, higher speed scanning mirror, can greatly improve the marking speed and accuracy.
The overall structure is more lightweight, portable, easy to operate and easy to maintain. The co2 laser marking machine can be matched with different power lasers and field mirrors to meet the marking needs of different formats and marking depths.
Product Features
1. The co2 rf laser marking machine has excellent beam quality, stability, and more precise and smooth marking，the max marking speed can reach to 7000mm/s.
2. The co2 rf laser marking machine adopts mechanical moving parts with simple structure, wear resistance, and corrosion resistance, making the system have good stability and high motion accuracy.
3. It can operate at full load for 24 hours, meeting the requirements of the production party for large-scale production.
4. The co2 laser printing machine can meet user requirements of the various elaborate patterns in tiny surface, the effect is stable and beautiful.
5.This co2 laser printing machine has an adjustable lifting handle, which can adjust the distance between the marking head and the object to be marked, so that the marking is more accurate, and the maximum adjustment distance can be 400mm.
Application
This co2 laser printing machine is applied in non-metallic materials , such as paper packaging, plastic products, label paper, leather cloth, glass ceramic, resin plastic, bamboo wood products, PCB boards, etc.
Technical Data
Product Name | 30W 60W Nonmetallic Materials Desktop Split Type Co2 Laser Marking Machine |
Equipment Type | PEDB-C30B |
Laser Type | Co2 laser |
Laser Power | 30w /60w |
Working Table | 110mm×110mm |
Scanning Speed | 0-10000mm/s |
Spot size | ≤ 40 micron (F-theta 160) |
Cooling unit | Air cooled |
Laser Tube life Time | 20,000~30,000 hours |
Marking Depth | 0.01~0.3mm |
Repeated Accuracy | 0.01mm |
Laser Wavelength | 1064um |
Minimum Line Width | 0.015mm |
Power Supply | 220v (50-60hz) |
Software | Professional laser marking software |
Control system | EZ-CAD |
