Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Marking Machine > 1000w 1500w 2000 Watts Handheld Portable Metal Rust Removal Laser Cleaner Cleaning Machine

1000w 1500w 2000 Watts Handheld Portable Metal Rust Removal Laser Cleaner Cleaning Machine

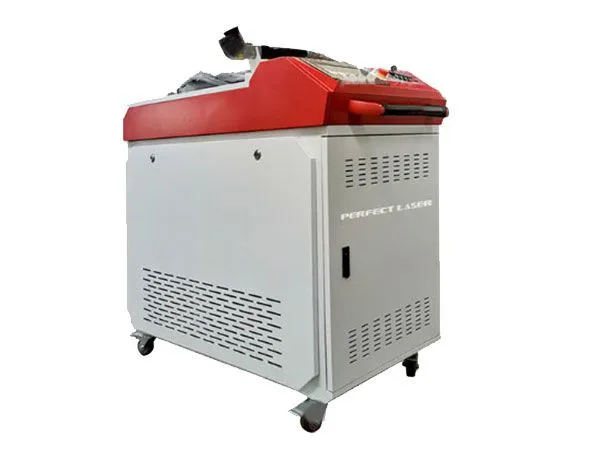

1000w 1500w 2000 Watts Handheld Portable Metal Rust Removal Laser Cleaner Cleaning Machine photo-1
1000w 1500w 2000 Watts Handheld Portable Metal Rust Removal Laser Cleaner Cleaning Machine photo-2
1000w 1500w 2000 Watts Handheld Portable Metal Rust Removal Laser Cleaner Cleaning Machine photo-3
US$ 8900 - 10800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Perfect Laser
Place of Origin:
China
Model Number:
PE-Z1000 / PE-Z1500 / PE-Z2000
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Perfect Laser
Place of Origin China
Model Number PE-Z1000 / PE-Z1500 / PE-Z2000
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Power(W) 1000W
Graphic Format Supported DXF, PLT
Control Software EZCAD
Cooling Mode Air Cooling
CNC or Not Yes
Laser Type Fiber Laser

Product Introduction


Perfect Laser 1000w/1500w/2000 Watts metal laser cleaning machine is a new generation of industrial surface cleaning laser equipment.

It adopts high-quality laser, laser optical scanner and control system to meet the requirements of metal surface cleaning process. The metal laser cleaning machine has the characteristics of fast speedhigh efficiencygood effectwide application and green environmental protection.

No chemical solvent, no pollution, no noise, harmless to human body, laser paint removal machine is a "green" cleaning technology.


Product Features



1. Hand-held and Convenient: Hand-held laser head, light-weight and easy to operate, can precise selection of cleaning position.

2. Non-Contact: It does not need chemical reagents, no consumables, no pollution, and is healthier.

3. High Cleanliness: It can quickly remove rust, high-speed decontamination, no secondary pollution and no secondary treatment.

4. Super Long Life: The handheld metal laser cleaning machine is equipped with a high-quality laser, which has a long service life, strong stability, low maintenance cost, power saving and energy saving.

5. Efficient And Simple: The handheld metal laser cleaning machine has fast cleaning speed, fool-like operation, quick start and easy operation.

6. No Damage To The Base Material: The laser paint removal machine does not damage the base material of the parts, and the laser cleaning, 360 degrees without dead ends, can remove various types of pollutants on the surface of various materials and restore the true color.

7. Intelligent Control Panel: The multi-parameter adjustment range is large, and the one-key start-up is simple, clear and easy to use.

8. Built-In Cold Water Chiller: It’s dust-proof and anti-condensation and rapidly reduces leakage and the hot air disappears.



Application



1. Application industry

This metal laser cleaning machine is widely used in environmental protection, rubber, ship molds,ships, auto parts,machine tools, confidential machinery, rail weapons and equipment industries, nuclear power, electrical appliances, medical equipment,digital products and other industries.



2. Application Scope

The metal laser cleaning machine is widely used in laser rust removal, paint removal, oil removal, oxide removal, screw cleaning, tire mold cleaning, welding seam cleaning, etc.


Technical Data


Product Parameters

Product Name

1000W /1500W 2000W Handheld Laser Cleaner

Average Laser Power

1000W 1500W 2000W

Power Adjustment Range

10%~100%

Center Wavelength

1080nm

Operating Mode

Continuous/Pulse

Beam Quality Factor

M2<1.8

Laser Linewidth

5mm~150mm Adjustable

Laser Pulse Frequency

1Khz~5Khz Adjustable

Laser Fiber Length

10 Meters (Standard)

15 Meters / 20Meters (Optional)

Fiber Minimum Bending Radius

200Mm

Laser Output Stability

<±3%

Cooling Method

Water Cooling (Deionized Water)

Working Temperature

0℃~40℃

Working Environment Humidity

<80%

Laser Source’s Technical Parameters

Laser Source

Fiber-Optic Laser Source

Laser Wavelength

1080nm

Average Output Power

1000W

Pulse Repetition Frequency

1k~5kkhz

Maximum Scan Line Speed

Max 20m/s

Scan Width

Up To 200x100mm, Continuously Adjustable

Cooling Method

Water Cooling

Handheld Cleaning Head

Weight 1.2Kg

Galvo Line Length

5 Meters

Voltage

380V/50Hz

Ambient Temperature

5~40°C, need to install air conditioner when using beyond the range

Environment Humidity

30%≤Rh≤85% (RH relative humidity) if the humidity exceeds the range, there is a risk of condensation on the equipment, so you need to install an air conditioner when using it.

Oil Mist

Not Allowed

Condensation

Not Allowed

Compressed Gas (Standard Without)

Provide 0.5-0.7mpa of compressed air without obvious water vapor and grease.Prepare pneumatic components for use.


Product Tags: Laser Cleaning Rust Machine Remover , portable cleaning machine for steel , laser cleaner , laser cleaning machine , metal rust cleaner , fiber laser cleaner , laser cleaner machine , paint cleaning machine , oil cleaner
