Recyclable Automobile Baler CE Certified

Recyclable Automobile Baler CE Certified thumbnail-1
Recyclable Automobile Baler CE Certified thumbnail-2
Recyclable Automobile Baler CE Certified thumbnail-3
Recyclable Automobile Baler CE Certified thumbnail-4
Recyclable Automobile Baler CE Certified thumbnail-5
Recyclable Automobile Baler CE Certified photo-1
Recyclable Automobile Baler CE Certified photo-2
Recyclable Automobile Baler CE Certified photo-3
Recyclable Automobile Baler CE Certified photo-4
Recyclable Automobile Baler CE Certified photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Henan Walle Industry Co., Ltd
Gold Verified Supplier
2Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
After-sales Service Provided Engineers available to service machinery overseas
The walleindustry baler/loggers are the fastest, most efficient baler/loggers any scrap recycler can own. Compressing scrap metal and vehicles into denser, stackable forms results in more efficient loading and transport.
Charge Box:
Open 5.096 m x 2.065 m
Closed 5.096 m L x 1.016 m W x 0.660 m H
Bale Size 1.016 m x 0.660 m x Variable
Minimum Variable Distance 55.88 cm
Bale Density 400 - 1,281 kg/m³


Q：What is the delivery period for the baler?

A：WLB-5000 using cartridge valves, valve control mode 3 + 2, due to this set of customized valves production cycle is long, the general cycle time is 45 days


Item
Parameter
Note
1
Main
Model
YG320/220-4000
1/320T
Cylinder
Nominal thrust
1826KN
Trip
4000MM
2
Level①
Model
YG200/140-600
2/200T
Pressing material
Cylinder
Nominal thrust
785KN*3
Trip
600MM
3
Level②
Model
YG200/140-600
2/200T
Pressing material
Cylinder
Nominal thrust
785KN*3
Trip
514MM
4
Box size (L*W*H)（MM）
5000*2000*1500
5
Bale size（L*W*H）（MM）
(~600)*1000*1000
6
Working pressure（Mpa）
21.5 Mpa
7
Output bale mode
Crane
8
Bale density(Kg/m3)
≥2000(Fe)
9
Single cycle time
≥130S
10
Operation mode
Handle operation
11
Equipment weight
30T
12
Dimensions of equipment
6500*2400*2700mm
13

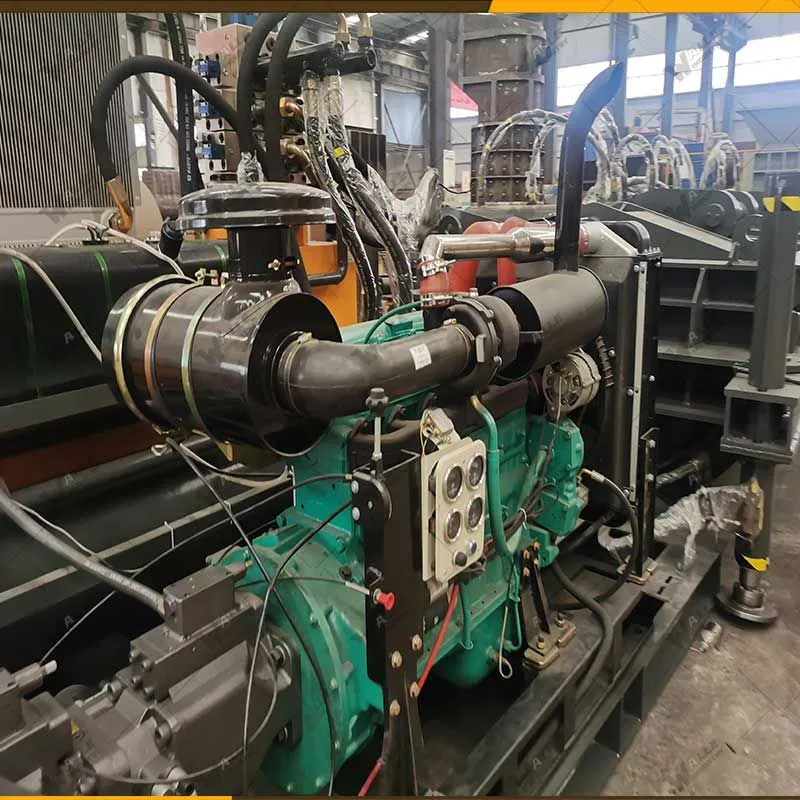

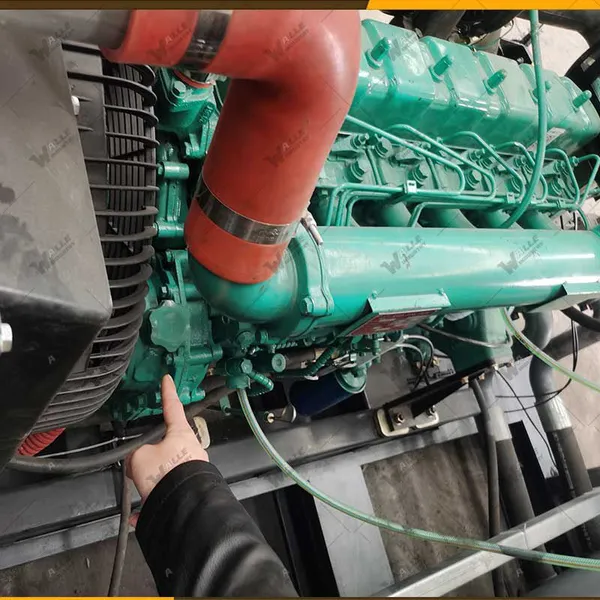

Engine
Model
HBE
Power
150HP
Rolling
2000r/min
Quantity
1
14
Oil pump
Model
A4V180+180
Pressure
31.5Mpa
Flow
376ml/r
Quantity
1
15
Average fuel consumption
15L/h



Item
Parameter
Note
1
Main
Model
YG320/220-4000
1/320T
Cylinder
Nominal thrust
1826KN
Trip
4000MM
2
Level①
Model
YG200/140-600
2/200T
Pressing material
Cylinder
Nominal thrust
785KN*3
Trip
600MM
3
Level②
Model
YG200/140-600
2/200T
Pressing material
Cylinder
Nominal thrust
785KN*3
Trip
514MM
4
Box size (L*W*H)（MM）
5000*2000*1500
5
Bale size（L*W*H）（MM）
(~600)*1000*1000
6
Working pressure（Mpa）
21.5 Mpa
7
Output bale mode
Crane
8
Bale density(Kg/m3)
≥2000(Fe)
9
Single cycle time
≥130S
10
Operation mode
Handle operation
11
Equipment weight
30T
12
Dimensions of equipment
6500*2400*2700mm
13
Engine
Model
HBE
Power
150HP
Rolling
2000r/min
Quantity
1
14
Oil pump
Model
A4V180+180
Pressure
31.5Mpa
Flow
376ml/r
Quantity
1
15
Average fuel consumption
15L/h

12345
