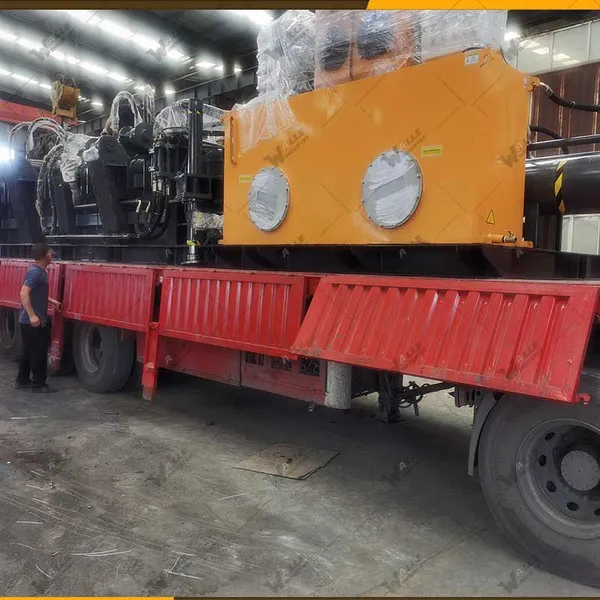

Stylish Vehicle baler for Effortless Operation

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port QINGDAO PORT
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

China

After-sales Service Provided

Engineers available to service machinery overseas

Product Description

Mainstructure

①　body

Themachine body is composed of left and right side frames, front frames,underframes, rear frames, door covers, main pressure heads, side pressureheads, oil cylinder supports and beams. Guard plates are installed in thecompression chamber to facilitate repair and replacement after wear.

②　Door cover cylinder

The doorcover cylinder is a double acting single piston rod cylinder, which is hingedon the beam support frame with two shafts. The piston rod and the door coverare hinged with a pin shaft to drive the door cover to rotate at 90 º to lockor loosen the door cover.

③　Main thrust cylinder

Themain push cylinder is a double acting single piston rod oil cylinder, which isinstalled at the lower part of the cross beam and connected to the rear frameof the machine body with a pin shaft. The piston rod is connected with the mainpressure head with a pin shaft to push the main pressure head back and forth.It is used for secondary compression to preliminarily form the materials in thecompression chamber.

④　Side pressure cylinder

The side cylinder isa double acting single piston rod oil cylinder, which is connected to the sidecylinder support with a flange, and the piston rod is connected with the sidepressure head with a pin shaft to push the side pressure head to move back andforth left and right for ultimate compression, so that the materialspreliminarily formed in the compression chamber finally form a package.

Q：Can I order a customized grappling hook?

A：Yes, not only that, you can also whether to delete it or not .

Item	Parameter							Note
1	Main	Model		YG320/220-4000				1/320T
	Cylinder	Nominal thrust		1826KN		Trip	4000MM
2	Level①	Model		YG200/140-600				2/200T
	Pressing material
	Cylinder	Nominal thrust		785KN*3	Trip		600MM
3	Level②	Model		YG200/140-600				2/200T
	Pressing material
	Cylinder	Nominal thrust		785KN*3	Trip		514MM
4	Box size (LWH)（MM）				500020001500
5	Bale size（LWH）（MM）				(~600)10001000
6	Working pressure（Mpa）				21.5 Mpa
7	Output bale mode				Crane
8	Bale density(Kg/m3)				≥2000(Fe)
9	Single cycle time				≥130S
10	Operation mode				Handle operation
11	Equipment weight				30T
12	Dimensions of equipment				650024002700mm
13	Engine	Model	HBE		Power		150HP
		Rolling	2000r/min		Quantity		1
14	Oil pump	Model	A4V180+180		Pressure		31.5Mpa
		Flow	376ml/r		Quantity		1
15	Average fuel consumption				15L/h

12345
